Specifications
Brand Name :
SOMA
Model Number :
SCP-503
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden packing
Material :
Forged steel
Tension :
50T
Stroke :
315mm
Opening degree :
170~1250mm
Description

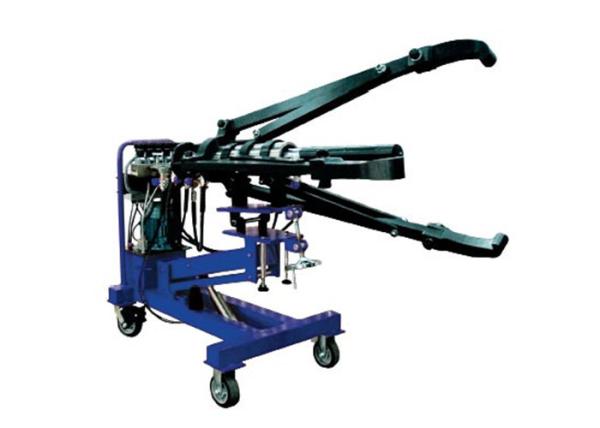

50T vehicle-mounted hydraulic puller

Features

  • Puller has 25mm horizontal adjustment, 5 degree vertical adjustment, automatic alignment function.
  • The solenoid valve fully controls the opening and closing of the claws, and the drawing work can be completed at one time through a button box (the vertical height of the puller shaft, the opening and closing of the claws, and the lifting of the workpiece by the hydraulic cylinder).
  • Using an electric hydraulic pump, the 50-ton hydraulic cylinder takes only 30 seconds to reach the full stroke.
  • 50-ton hydraulic cylinder adopts double-acting form, so it has fast return stroke, high working efficiency and long service life.
  • The claws are made of forged steel, which is strong and durable.
  • Using 220V-1.1KW electric hydraulic pump as power source.
  • The puller can be easily configured as 2 or 3 claws.
  • The car has two universal wheels, which can be self-locking.
  • 2-stage hydraulic pump with flow rate of 4 L/min@1.4MPa, 0.6 L/min@70MPa.

Specifications

Type

Tension

(Ton)

Stroke (mm) Opening degree (mm) Three connecting rods (mm)

Minimum height (from the center line)(mm)

Maximum height (from the center line) (mm) Weight (kg) Power (V)
SCP-503 50 315 170~1250 75.150.250 810 1290 285 220

Product dispaly

Hand Hydraulic Power Tools , Hydraulic Pulley Puller 50T Vehicle Mounted Heavy Powerful Easy To Use

Hand Hydraulic Power Tools , Hydraulic Pulley Puller 50T Vehicle Mounted Heavy Powerful Easy To Use
