Safe Hydraulic Power Tools , 15 Ton Hydraulic Puller Integrated 360 Degree Rotation By Removable Handle
Safe Hydraulic Power Tools , 15 Ton Hydraulic Puller Integrated 360 Degree Rotation By Removable Handle
Specifications
Brand Name :
SOMA
Model Number :
SP-4in
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden packing
Material :
Alloy steel
Tension :
4,6,8,15(T)
Opening degree :
30-200/260,30-200/300,30-250/355,30-300/380,50-280/380,50-350/410
Stroke :
55-105,82-280
Description

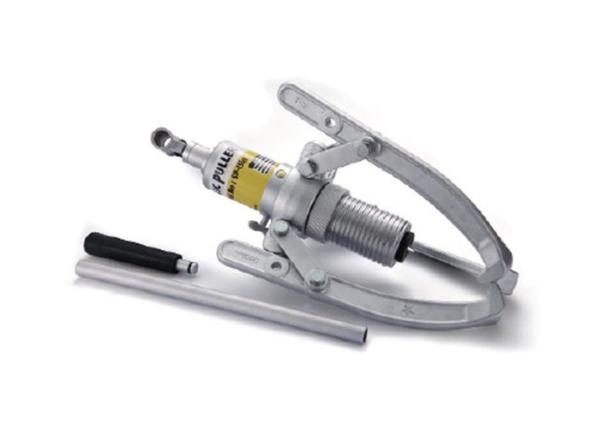

Integrated hydraulic puller

Feature

  • Integrated Forming Cylinder
  • Built-in safety relief valve to prevent overload and quick retraction
  • 360 degree rotation, removable handle
  • Quickly fix the claw to its optimum position
  • 2/3 claw and long-short claw combination
  • Made of High Strength Alloy for Tension Claw
  • Fast positioning adjusting nut, with portable storage box

Details

Safe Hydraulic Power Tools , 15 Ton Hydraulic Puller Integrated 360 Degree Rotation By Removable Handle

1. Removable pump handle

2. 360 degree rotary pump head

3. Pump, tubing and Rama in one

4. Integral safety relief valve to prevent Lama overload

5. Fast pressure control switch

6.2-claw, 3-claw universal claw holder, heat-treated forged alloy steel, to provide higher strength and longer life than castings

7. Surface bright chromium coating, anti-corrosion processing

8. Skin bag oil reservoir, universal operation

9. Quick adjustment of nuts, with British trapezoidal threads to adjust the hydraulic cylinder to the working surface, in order to achieve the fastest adjustment.

10. Heat treatment alloy steel bolts

11. Heat treatment chromium-plated piston rod, which provides linear force, eliminates the torque and friction of traditional screw pulling horse

12. Movable spring center pin, which is removable

13. Processing of special hook grooves for claw hooks

Specifications

Safe Hydraulic Power Tools , 15 Ton Hydraulic Puller Integrated 360 Degree Rotation By Removable Handle

Safe Hydraulic Power Tools , 15 Ton Hydraulic Puller Integrated 360 Degree Rotation By Removable Handle

Type

Tension

T

Depth

mm

Opening degree

mm

Stroke

mm

 claw(mm) Piston (mm) N.W. G.W.
A B C E F G
SP-4in 4 165 30-200/260 55-105 15 7 22 85 42 25 5.5 7.2
SP-6in 6 165 30-200/260 82-130 15 7 22 42 25 5.9 7.5
SP-6inL 195 30-200/300 82-180 26 7.0 8.8
SP-6inB 165/195 22/26 8.4 10.3
SP-8in 8 210 30-250/355 82-160 20 7 25 50 28 8.1 9.7
SP-8inL 240 30-300/380 82-240 9 29 9.4 11.1
SP-8inB 210/240 7-9 25/29 11.5 13.1
SP-15in 15 240 50-280/380 82-180 20 9 29 60 35 9.8 11.1
SP-15inL 320 50-350/410 82-280 20 11 33 16.7 26.3
SP-15inB 240/320 20/28 9/11 29/33 18.8 28.4

L: Long claw B: long and short claws
