20 Ton 30 Ton Hydraulic Puller Integrated Serpentine Claw Piano Wire Tension Spring Design
20 Ton 30 Ton Hydraulic Puller Integrated Serpentine Claw Piano Wire Tension Spring Design
Specifications
Brand Name :
SOMA
Model Number :
SP-10inC
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
50 set / 30 days
Delivery Time :
5-30 days upon order quantity
Packaging Details :
Wooden packing
Material :
Alloy steel
Tension :
10,12,20,25,30(T)
Opening degree :
30-250/310~100-540/610
Stroke :
82-130~110-260
Description

Integrated hydraulic puller-Serpentine Claw20 Ton 30 Ton Hydraulic Puller Integrated Serpentine Claw Piano Wire Tension Spring Design

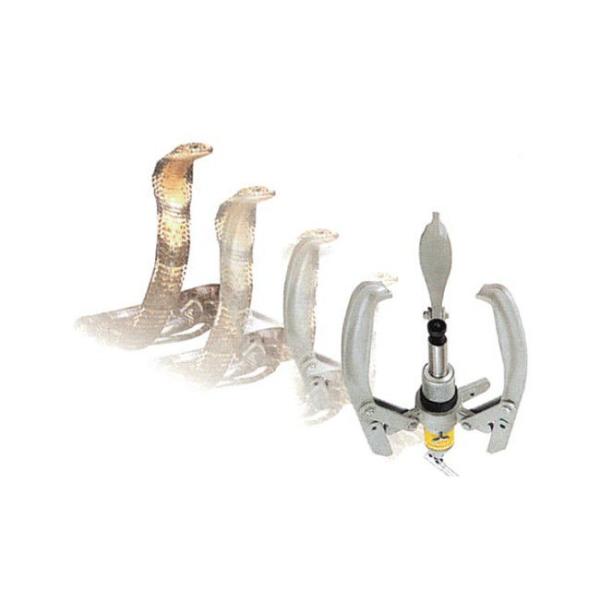

Cobra snake-shaped claw

Feature

  • Integrated Forming Cylinder
  • Built-in safety relief valve
  • Adopting German high-strength piano wire tension spring design, so as to long life and fast retraction
  • 360 degree rotation, removable handle
  • Quick adjustment of nuts, with British trapezoidal threads to adjust the hydraulic cylinder to the working surface, in order to achieve the fastest adjustment.
  • 2/3 claw and long-short claw combination
  • With portable storage box and anti-shedding safety net
  • The claws are made of high-strength alloy and heat treated with high strength for lifelong warranty.
  • Three-layer plating treatment to prevent rust and wear

Specifications

20 Ton 30 Ton Hydraulic Puller Integrated Serpentine Claw Piano Wire Tension Spring Design

20 Ton 30 Ton Hydraulic Puller Integrated Serpentine Claw Piano Wire Tension Spring Design

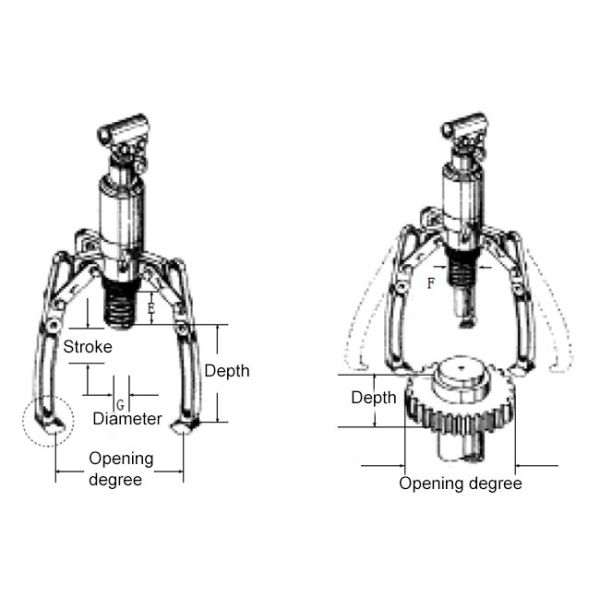

Type

Tension

(Ton)

Depth

(mm)

Opening degree

(mm)

Stroke

(mm)

 Claw (mm) Piston (mm) N.W. G.W.
A B C E F G
SP-10inC 10 195 30-250/310 82-130 13 5 22 103 42 25 7.4 10.7
SP-10inCL 250 30-280/340 82-180 15 8 25 9.9 18.3
SP-10inCB 195/250 13/15 5/8 22/25 10.8 14.1
SP-12inC 12 240 30-300/370 82-160 15 8 25 103 50 28 10.6 19
SP-12inCL 280 30-330/400 82-240 18 8 29 12.6 23.3
SP-12inCB 240/280 15/18 8 25/29 15.6 24
SP-20inC 20 275 50-360/430 82-180 18 10 29 103 60 35 14 24.7
SP-20inCL 330 50-380/450 82-280 28 28 33 16.5 29.3
SP-20inCB 275/330 18/28 10/28 29/33 22.5 32.8
SP-25inC 25 315 50-410/480 110-220 28 28 33 140 66 45 21.9 34.8
SP-25inCL 380 50-440/540 110-330 30 36 38 26.5 43.8
SP-25inCB 315/380 28/30 28/36 33/38 33.7 64.3
SP-30inC 30 405 100-540/610 110-260 30 36 38 160 76 55 35.4 52.6

L: Long claw B: long and short claws C: Lifetime warranty claw
