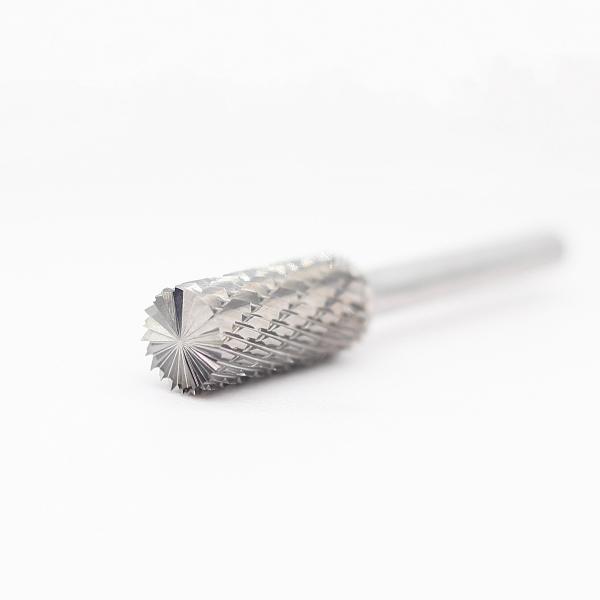

SB-1 Cylindrical End Cut Carbide Burrs 1/4 Cut Dia 1/4 Shank Dia Solid Carbide Rotary Files
SB-1 Cylindrical End Cut Carbide Burrs 1/4 Cut Dia 1/4 Shank Dia Solid Carbide Rotary Files
SB-1 Cylindrical End Cut Carbide Burrs 1/4 Cut Dia 1/4 Shank Dia Solid Carbide Rotary Files
SB-1 Cylindrical End Cut Carbide Burrs 1/4 Cut Dia 1/4 Shank Dia Solid Carbide Rotary Files
SB-1 Cylindrical End Cut Carbide Burrs 1/4 Cut Dia 1/4 Shank Dia Solid Carbide Rotary Files
SB-1 Cylindrical End Cut Carbide Burrs 1/4 Cut Dia 1/4 Shank Dia Solid Carbide Rotary Files
SB-1 Cylindrical End Cut Carbide Burrs 1/4 Cut Dia 1/4 Shank Dia Solid Carbide Rotary Files
SB-1 Cylindrical End Cut Carbide Burrs 1/4 Cut Dia 1/4 Shank Dia Solid Carbide Rotary Files
Specifications
Flute Type :
Standard Double Cut
Shape :
Cylinder With End Cut
Brand Name :
BABOS
Model Number :
SB-1
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Shank Diameter :
1/4"
Application :
Deburring, Shaping, and Finishing
Overall Length :
2"
Cut Diameter :
1/4"
Cut Length :
5/8"
Suitable For :
Machining Surface Profile of Workpiece
Max Rpm :
50,000
Material :
Tungsten Carbide
Package Quantity :
1 Piece
Description

SB-1 Cylindrical End Cut Carbide Burrs 1/4" Cut Dia 1/4" Shank Dia Solid Carbide Rotary Files




Our SB‑series solid tungsten carbide rotary burrs are widely used for metal deburring, weld cleaning, material removal, shaping and surface finishing. Each burr features high‑density carbide substrate, sharp flute geometry and stable cutting performance, suitable for die grinder operation in metal fabrication, machinery repair and automotive workshops.

We support bulk order and OEM customization on burr shape, cut type and shank size. Strict dimensional tolerance ensures consistent performance batch‑to‑batch.


This SB‑1 carbide burr comes with working diameter 1/4"(6.35 mm) and cutting length 1/2"(12.7 mm). Compact size makes it ideal for fine‑detail finishing, narrow‑space deburring and light material removal on thin steel sheet, aluminum and stainless steel. Recommended for low‑to‑medium stock removal requirements.



SB-1 Cylinder With End Cut Burrs On 1/4" Shank


Brand: BABOS

Material: Tungsten Carbide

Cut Diameter: 1/4”

Length of Flute: 5/8”

Shank Diameter: 1/4”

OAL: 2"

Cut Type: Standard Double Cut




Other Available Sizes Related to Type B Carbide Burrs Both in Metric and Inch Standard:


Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Legth of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 1.5 6 38 B1506 Solid
2 11 38 B0211 Solid
2.5 12 38 B2512 Solid
3 13 38 B0313 Solid
4 13 51 B0413 Brazed
5 13 51 B0513 Brazed
6 13 51 B0613 Brazed
6 6 16 63 B0616 Brazed
6 25 65 B0625 Solid
8 20 65 B0820 Brazed
10 20 70 B1020 Brazed
11 25 70 B1125 Brazed
12 25 70 B1225 Brazed
16 25 70 B1625 Brazed
19 25 70 B1925 Brazed
25 25 70 B2525 Brazed
8 12 25 70 B1225 Brazed
16 25 70 B1625 Brazed
19 25 70 B1925 Brazed
25 25 70 B2525 Brazed
Inch Standard
3/8'' 7/8" 1" 2-3/4" SB-8 Brazed
1/8'' 1/16" 1/4" 1-1/2" SB-41 Solid
1/8" 9/16" 1-1/2" SB-43 Solid
1/4'' 5/32" 5/8" 2" SB-13 Solid
3/16" 5/8" 2'' SB-14 Solid
1/4" 1" 2'' SB-1L Solid
5/16" 3/4'' 2-1/2" SB-2 Brazed
3/8" 3/4'' 2-1/2" SB-3 Brazed
7/16" 1" 2-3/4" SB-4 Brazed
1/2" 1" 2-3/4" SB-5 Brazed
5/8" 1" 2-3/4" SB-6 Brazed
3/4" 1" 2-3/4" SB-7 Brazed
1" 1" 2-3/4" SB-9 Brazed





Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type B burrs or other shapes of burrs.
  3. OEM is avaliable.




Cut Selection Guide:


STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
