Flute Type F Tree Radius End Tungsten Carbide Burr 16mm*25mm Aluminum Cut Die Grinder Deburring Bits
Flute Type F Tree Radius End Tungsten Carbide Burr 16mm*25mm Aluminum Cut Die Grinder Deburring Bits
Flute Type F Tree Radius End Tungsten Carbide Burr 16mm*25mm Aluminum Cut Die Grinder Deburring Bits
Flute Type F Tree Radius End Tungsten Carbide Burr 16mm*25mm Aluminum Cut Die Grinder Deburring Bits
Specifications
Brand Name :
BABOS
Model Number :
F-Tree Radius End
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Ball Nosed Tree
Cut Diameter :
16mm
Cut Length :
25mm
Shank Diameter :
6mm
Flute Type :
Aluminum Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1
Max Rpm :
50,000
Description

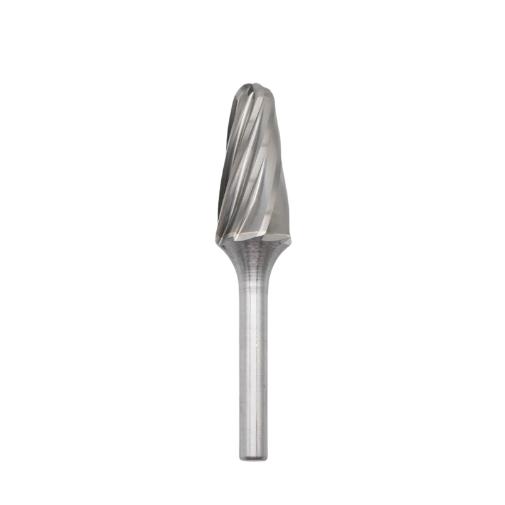

F Tree Radius End Tungsten Carbide Burr 16mm*25mm Aluminum Cut Die Grinder Deburring Bits


Description:


The F Tree Radius End Tungsten Carbide Burr with its 16mm x 25mm dimensions, aluminum-specific cut, and 6mm shank is a robust and precise tool, expertly crafted for high-performance deburring, shaping, and material removal on soft and gummy non-ferrous metals, ensuring efficiency and a clean finish without the common problem of clogging.



Specifications:

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:16mm

Length of Flute: 25mm

Shank Diameter: 6mm

OAL: 70mm

Cut Type: Aluminum Cut




Other Available Sizes Related to Type F Carbide Burrs Both in Metric and Inch Standard:


Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length. (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 13 38 F0313 Solid
5 13 51 F0513 Brazed
6 13 51 F0613 Brazed
6 6 18 63 F0618 Brazed
8 20 65 F0820 Brazed
10 20 65 F1020 Brazed
11 25 70 F1125 Brazed
12 25 70 F1225 Brazed
16 25 70 F1625 Brazed
19 25 70 F1925 Brazed
8 12 25 70 F1225 Brazed
16 25 70 F1625 Brazed
19 25 70 F1925 Brazed
Inch Standard
1/8'' 1/8'' 1/2'' 1/2'' SF-42 Solid
1/4'' 1/2'' 2'' SF-51 Brazed
1/4'' 3/8'' 3/4'' 1/2'' SF-3 Brazed
7/16'' 1'' 3/4'' SF-4 Brazed
1/2'' 3/4'' 1/2'' SF-13 Brazed
5/8'' 1'' 3/4'' SF-6 Brazed
3/4'' 1'' 3/4'' SF-7 Brazed
3/4'' 1/4'' 3'' SF-14 Brazed
3/8'' 3/4'' 1/4'' 1/4'' SF-15 Brazed





Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type F burrs or other shapes of burrs.
  3. OEM is avaliable.




Cut Selection Guide:


STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
