G Shape Standard Carbide Burr 10mm*20mm Pointed Tree Carbide Burr On 6mm Shank Aluminum Cut
G Shape Standard Carbide Burr 10mm*20mm Pointed Tree Carbide Burr On 6mm Shank Aluminum Cut
G Shape Standard Carbide Burr 10mm*20mm Pointed Tree Carbide Burr On 6mm Shank Aluminum Cut
G Shape Standard Carbide Burr 10mm*20mm Pointed Tree Carbide Burr On 6mm Shank Aluminum Cut
Specifications
Brand Name :
BABOS
Model Number :
G-Pointed Tree
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Tree Pointed
Cut Diameter :
10mm
Cut Length :
20mm
Shank Diameter :
6mm
Flute Type :
Aluminum Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1
Max Rpm :
50,000
Description

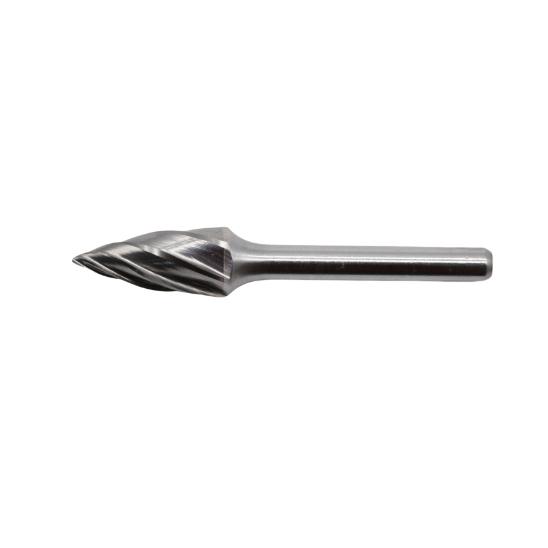

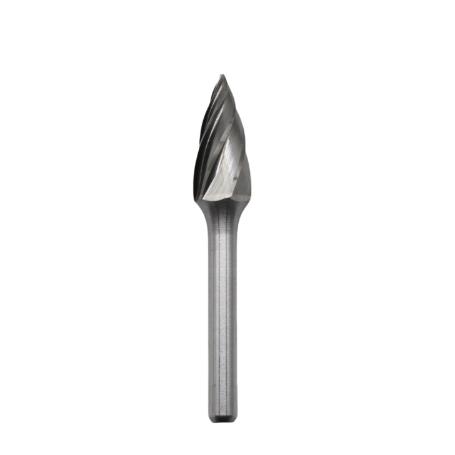

G shape Carbide Burr 10mm*20mm Pointed Tree Carbide Burr On 6mm Shank Aluminum Cut

The G Shape Pointed Tree Carbide Burr with its 10mm x 20mm dimensions, 6mm shank, and aluminum-specific cut is a high-performance, precision tool. It excels at aggressive material removal and intricate shaping on soft, non-ferrous materials, providing efficient, clog-free operation and a clean finish, particularly in hard-to-reach areas requiring a pointed tip.





Specifications:

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:10mm

Length of Flute: 20mm

Shank Diameter: 6mm

OAL: 65mm

Cut Type: Aluminum Cut




Other Available Sizes Related to Type G Carbide Burrs Both in Metric and Inch Standard:


Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 13 38 G0313 Solid
5 13 51 G0513 Brazed
6 13 51 G0613 Brazed
6 6 18 63 G0618 Brazed
8 20 65 G0820 Brazed
10 20 65 G1020 Brazed
12 25 70 G1225 Brazed
16 25 70 G1625 Brazed
19 25 70 G1925 Brazed
8 12 25 70 G1225 Brazed
16 25 70 G1625 Brazed
19 25 70 G1925 Brazed
Inch Standard
Shank Dia. (inch) Cutter Dia. (inch) Length of Cut (inch) Overall Length (inch) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
1/8'' 1/8" 1/2" 1-1/2" SG-44 Solid
1/4'' 1/4" 5/8" 2" SG-1 Brazed
5/16" 3/4'' 2-1/2" SG-2 Brazed
3/8" 3/4'' 2-1/2" SG-3 Brazed
1/2" 1 2-3/4" SG-5 Brazed
5/8" 1 2-3/4" SG-6 Brazed
3/4" 1 2-3/4" SG-7 Brazed
3/4" 1-1/2" 3-1/4" SG-15 Brazed




Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type G burrs or other shapes of burrs.
  3. OEM is avaliable.




Cut Selection Guide:


STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
