Specifications
Brand Name :
BABOS
Model Number :
SB-9
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Cylinder With End Cut
Cut Diameter :
1 inch
Cut Length :
1 inch
Shank Diameter :
1/4 inch
Overall Length :
2-3/4inch
Flute Type :
Standard Double Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1 Piece
Max Rpm :
50,000
Description

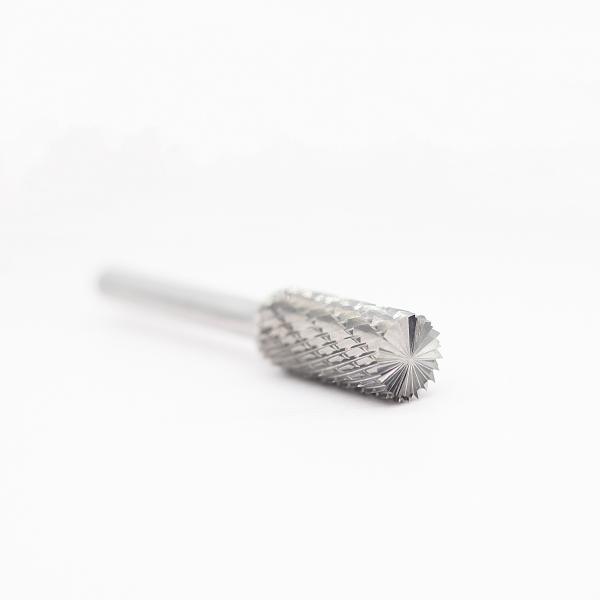

SB-9 Cylindrical End Cut Carbide Burrs 1" Cut Dia 1/4" Shank Dia Carbide Rotary Files

Description:

The SB-9 cylindrical end cut carbide burr is a specialized tool within the SB series, designed for precision and heavy-duty material removal, grinding, and shaping tasks. Like other SB burrs, it is constructed from tungsten carbide, offering durability and high performance in demanding applications.

SB-9 Cylinder With End Cut Burrs On 1/4" Shank

SB-9 Cylindrical End Cut Carbide Burrs 1

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1"

Length of Flute: 1"

Shank Diameter: 1/4”

OAL: 2-3/4"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type B Carbide Burrs Both in Metric and Inch Standard:

Metric Standard

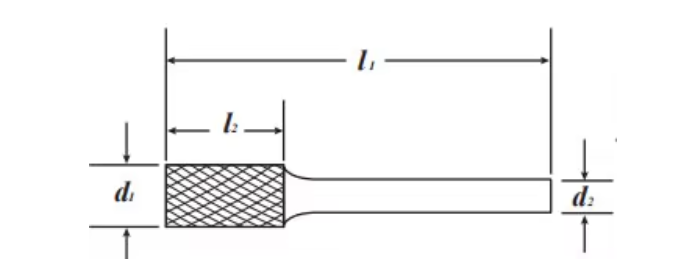

Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 1.5 6 38 B1506 Solid
2 11 38 B0211 Solid
2.5 12 38 B2512 Solid
3 13 38 B0313 Solid
4 13 51 B0413 Brazed
5 13 51 B0513 Brazed
6 13 51 B0613 Brazed
6 6 16 63 B0616 Brazed
6 25 65 B0625 Solid
8 20 65 B0820 Brazed
10 20 70 B1020 Brazed
11 25 70 B1125 Brazed
12 25 70 B1225 Brazed
16 25 70 B1625 Brazed
19 25 70 B1925 Brazed
25 25 70 B2525 Brazed
8 12 25 70 B1225 Brazed
16 25 70 B1625 Brazed
19 25 70 B1925 Brazed
25 25 70 B2525 Brazed
Inch Standard
3/8'' 7/8" 1" 2-3/4" SB-8 Brazed
1/8'' 1/16" 1/4" 1-1/2" SB-41 Solid
1/8" 9/16" 1-1/2" SB-43 Solid
1/4'' 5/32" 5/8" 2" SB-13 Solid
3/16" 5/8" 2'' SB-14 Solid
1/4" 5/8" 2'' SB-1 Solid
1/4" 1" 2'' SB-1L Solid
5/16" 3/4'' 2-1/2" SB-2 Brazed
3/8" 3/4'' 2-1/2" SB-3 Brazed
7/16" 1" 2-3/4" SB-4 Brazed
1/2" 1" 2-3/4" SB-5 Brazed
5/8" 1" 2-3/4" SB-6 Brazed
3/4" 1" 2-3/4" SB-7 Brazed

Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type B burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
SB-9 Cylindrical End Cut Carbide Burrs 1 SB-9 Cylindrical End Cut Carbide Burrs 1 SB-9 Cylindrical End Cut Carbide Burrs 1 SB-9 Cylindrical End Cut Carbide Burrs 1 SB-9 Cylindrical End Cut Carbide Burrs 1 SB-9 Cylindrical End Cut Carbide Burrs 1
