3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
3/8 X 5/8 Tungsten Carbide Rotary File 1/4 Shank 2-3/8 Cutting Burr Die Grinder
Specifications
Brand Name :
BABOS
Model Number :
SE-3
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Oval Shape
Cut Diameter :
3/8 inch
Cut Length :
5/8 inch
Shank Diameter :
1/4 inch
Overall Length :
2-3/8 inch
Flute Type :
Standard Double Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1
Max Rpm :
50,000
Description

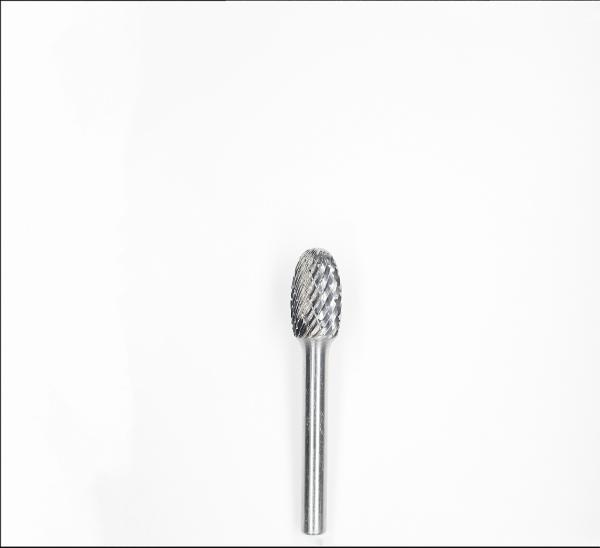

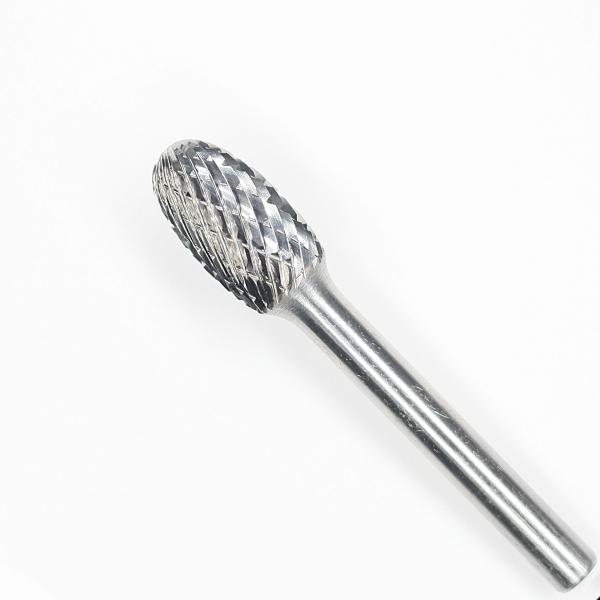

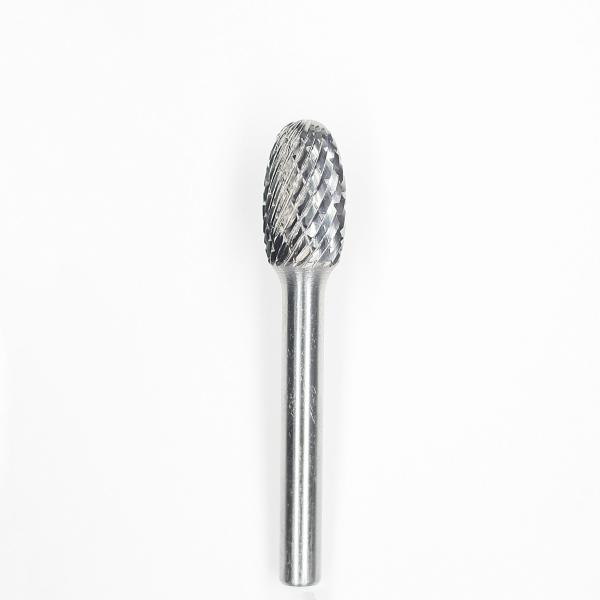

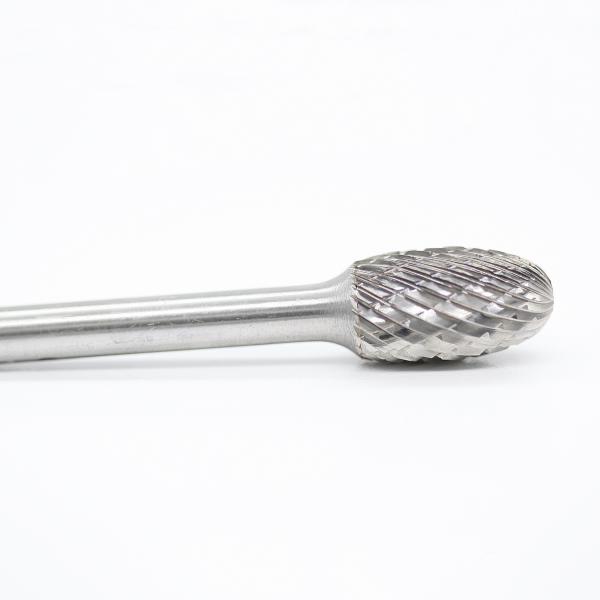

SE-3 Carbide Burr/Rotary File Oval Double Cut for Die Grinder 3/8" Dia. x 5/8" Cut Length with 1/4" Shank and 6" Overall Length

SE-3 Carbide Burr/Rotary File Oval Double Cut

3/8

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3/8"

Length of Flute: 5/8"

Shank Diameter: 1/4”

OAL: 2-3/8"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type E Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 7 38 E0306 Solid
5 8 46 E0508 Brazed
6 10 48 E0610 Brazed
6 6 10 50 E0610 Brazed
8 13 58 E0813 Brazed
10 16 61 E1016 Brazed
12 20 65 E1220 Brazed
16 25 70 E1625 Brazed
19 25 70 E1925 Brazed
8 12 20 65 E1220 Brazed
16 25 70 E1625 Brazed
19 25 70 E1925 Brazed
Inch Standard
1/8'' 3/16" 9/32" 1-1/2" SE-53 Solid
1/4" 3/8" 1-8/9" SE-51 Brazed
1/4'' 1/4" 3/8" 64.05mm SE-1 Brazed
1/2" 7/8" 2-5/8" SE-5 Brazed
5/8" 1" 2-3/4" SE-6 Brazed
3/4" 1" 2-3/4" SE-7 Brazed


Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type E burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
3/8 3/8 3/8 3/8 3/8 3/8
