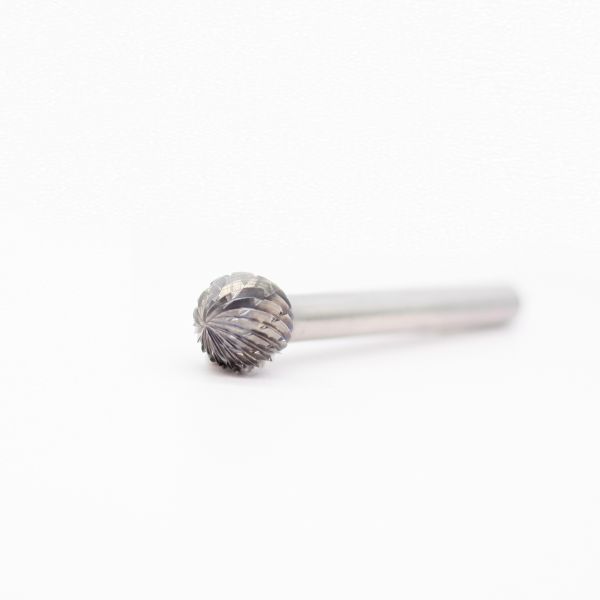

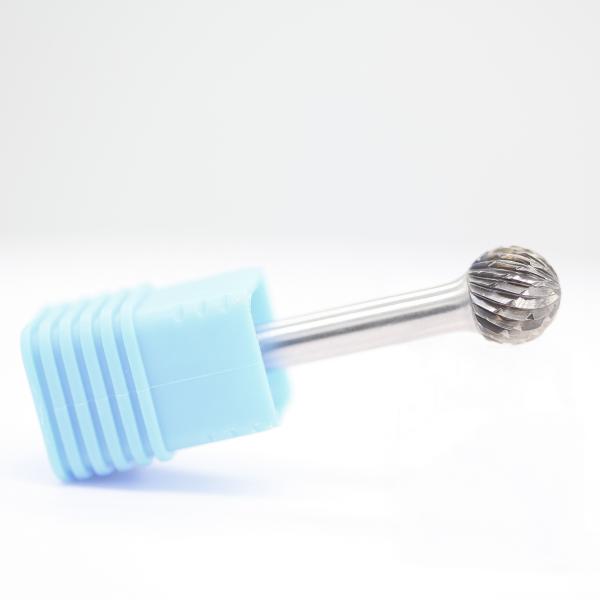

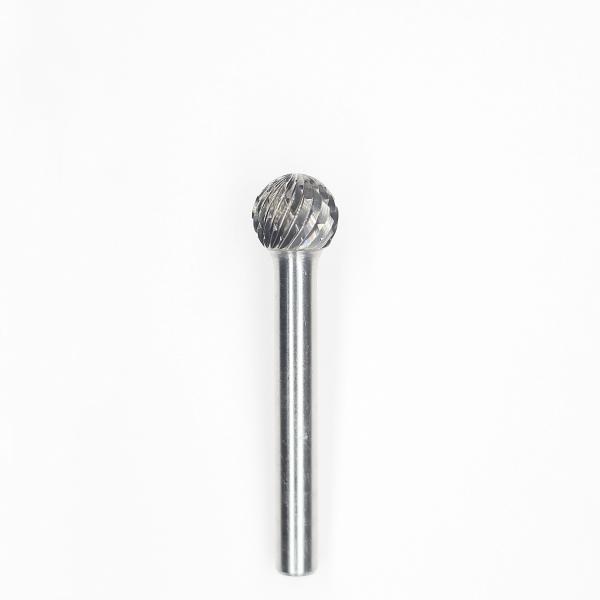

Tungsten Rotary Carbide File Ball Shape 5/16 Cut Dia. 1/4 Die Grinder Bits
Tungsten Rotary Carbide File Ball Shape 5/16 Cut Dia. 1/4 Die Grinder Bits
Tungsten Rotary Carbide File Ball Shape 5/16 Cut Dia. 1/4 Die Grinder Bits
Tungsten Rotary Carbide File Ball Shape 5/16 Cut Dia. 1/4 Die Grinder Bits
Tungsten Rotary Carbide File Ball Shape 5/16 Cut Dia. 1/4 Die Grinder Bits
Tungsten Rotary Carbide File Ball Shape 5/16 Cut Dia. 1/4 Die Grinder Bits
Specifications
Brand Name :
BABOS
Model Number :
SD-2
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Ball Shape
Cut Diameter :
5/16 inch
Cut Length :
1/4 inch
Shank Diameter :
1/4 inch
Overall Length :
2 inch
Flute Type :
Standard Double Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1 pcs
Max Rpm :
50,000
Description

SD-2 Tungsten Carbide Rotary File Ball Shape With 1/4'' Shank 5/16" Cut Dia. 1/4" Cut Length

Ball Shape Carbide Burr On 1/4" Shank

Tungsten Rotary Carbide File Ball Shape 5/16

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:5/16"

Length of Flute: 1/4"

Shank Diameter: 1/4”

OAL: 2"

Cut Type: Standard Double Cut

Available Shapes(A-N)

Tungsten Rotary Carbide File Ball Shape 5/16

​SA: Cylindrical (Without End Cut)

SB: Cylindrical With End Cut
SC: Cylindrical Ball Nose(Cylindrical Radius End)
SD: Ball Shape
SE: Oval Shape
SF: Tree RadiusShape
SG: Tree Point Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape(Taper Radius End)
SM: Cone Shape
SN: Inverted Cone Shape

Other Available Sizes Related to Type D Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 2 1.8 38 D0202 Solid
2.5 2.3 38 D2525 Solid
3 2.5 38 D0325 Solid
4 3 41 D0403 Brazed
5 4 42 D0504 Brazed
6 5 43 D0605 Brazed
6 6 5 50 D0605 Brazed
8 7 52 D0807 Brazed
10 9 54 D1009 Brazed
12 10 55 D1210 Brazed
16 14 59 D1614 Brazed
19 18 63 D1918 Brazed
25 21 66 D2521 Brazed
8 12 10 56 D1210 Brazed
16 14 59 D1614 Brazed
19 18 63 D1918 Brazed
25 21 66 D2521 Brazed
Inch Standard
1/8'' 1/8" 1/8" 1-1/2" SD-42 Solid
3/16" 5/32" 1-1/2" SD-53 Brazed
1/4" 7/32" 1-3/4" SD-51 Brazed
1/4'' 3/16" 1/8" 2'' SD-14 Solid
1/4" 7/32" 2'' SD-1 Solid
3/8" 5/16" 2-1/16" SD-3 Brazed
7/16" 3/8" 2-1/7" SD-4 Brazed
1/2" 7/16" 2-1/5" SD-5 Brazed
5/8" 9/16" 2-1/3" SD-6 Brazed
3/4" 11/16" 2-4/9" SD-7 Brazed
1" 15/16" 2-7/8" SD-9 Brazed


Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type D burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
Tungsten Rotary Carbide File Ball Shape 5/16 Tungsten Rotary Carbide File Ball Shape 5/16 Tungsten Rotary Carbide File Ball Shape 5/16 Tungsten Rotary Carbide File Ball Shape 5/16 Tungsten Rotary Carbide File Ball Shape 5/16 Tungsten Rotary Carbide File Ball Shape 5/16
