Specifications
Brand Name :
BABOS
Model Number :
SF-5
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
100% Virgin Micro-grain Tungsten Carbide
Shape :
Ball Nosed Tree
Cut Diameter :
1/2 inch(or 12mm)
Cut Length :
1 inch(or 25mm)
Shank Diameter :
1/4 inch(or 6mm)
Flute(Cut) Type :
Standard Double Cut(or Single Cut, Aluminum Cut, Diamond Cut, Fine Cut, Wide Cut, Stainless Steel Cut)
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1
Max Rpm :
50,000
Description

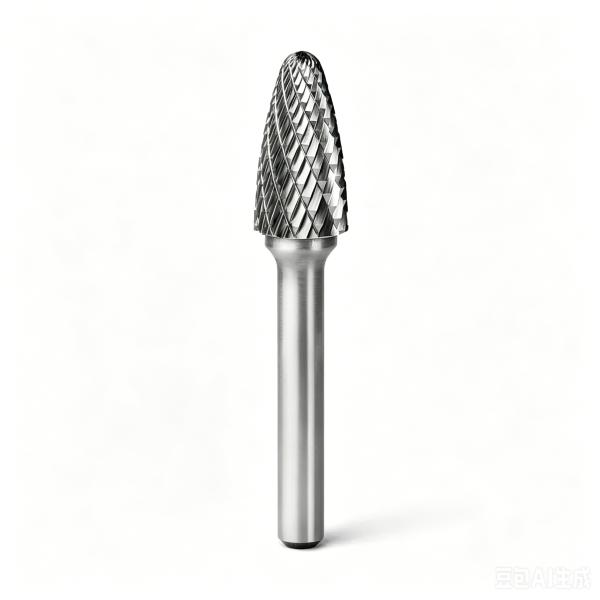

Chengdu BABOS SF-5 Tree Shape Tungsten Carbide Burr - 1/2" Dia x 1/4" Shank x 1" Length

Tungsten carbide burrs are highly valued across industries that require the shaping, smoothing, or cutting of hard materials. Because tungsten carbide is approximately three times stiffer than steel and extremely heat-resistant, these tools are essential for high-speed precision work.

Tungsten carbide burrs are widely used in the industries like:Aerospace & Aviation; Automotive Industry; Medical & Dental; Foundry & Shipbuilding and Jewelry & Craftsmanship.

The SF-5 Tree Shape Burr, is one of the best sellers among the variety of tungsten carbide burr products, also known as Rounded Tree Shape Burr, is versatile and high-performance cutting tool designed for detailed interior contour work and rounded edge processing, especially in tight or small spaces. These burrs are ideal for demanding applications due to their tungsten carbide construction, which provides superior hardness and durability.

SF-5 Tree Radius End Tungsten Carbide Burr

Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2

Brand: BABOS

Material: 100% Virgin Micro-grain Tungsten Carbide

Cut Diameter:1/2"(or 12mm)

Length of Flute: 1"(or 25mm)

Shank Diameter: 1/4”(or 6mm)

OAL: 2-3/4"(or 70mm)

Cut Type: Standard Double Cut(other cut types available: Single Cut, Aluminum Cut, Diamond Cut, Fine Cut, Wide Cut, Stainless Steel)

Other Available Sizes Related to Type F Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length. (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 13 38 F0313 Solid
5 13 51 F0513 Brazed
6 13 51 F0613 Brazed
6 6 18 63 F0618 Brazed
8 20 65 F0820 Brazed
10 20 65 F1020 Brazed
11 25 70 F1125 Brazed
12 25 70 F1225 Brazed
16 25 70 F1625 Brazed
19 25 70 F1925 Brazed
8 12 25 70 F1225 Brazed
16 25 70 F1625 Brazed
19 25 70 F1925 Brazed
Inch Standard
1/8'' 1/8'' 1/2'' 1/2'' SF-42 Solid
1/4'' 1/2'' 2'' SF-51 Brazed
1/4'' 3/8'' 3/4'' 1/2'' SF-3 Brazed
7/16'' 1'' 3/4'' SF-4 Brazed
1/2'' 3/4'' 1/2'' SF-13 Brazed
5/8'' 1'' 3/4'' SF-6 Brazed
3/4'' 1'' 3/4'' SF-7 Brazed
3/4'' 1/4'' 3'' SF-14 Brazed
3/8'' 3/4'' 1/4'' 1/4'' SF-15 Brazed


Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type F burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2 Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2 Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2 Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2 Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2 Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2

Common Tooth Types of Carbide Burrs

Tooth Type Appearance Best For Features

Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2

Single Cut(SC)

 Spiral teeth in one direction Steel, cast iron Fast stock removal

Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2

Double Cut(DC)

 Cross-cut teeth Stainless steel, hardened steel Smoother finish, stable cutting

Tungsten Carbide Rotary Burr | Tree Shape SF-5 | 1/2

Aluminum Cut(AL)

 Large single flute Aluminum, brass, plastics Anti-clogging

Single Cut vs Double Cut vs Aluminum Cut – Performance Comparison

Performance Factor Single Cut Double Cut Aluminum Cut
Cutting Speed ★★★★ ★★★ ★★★★★
Surface Finish ★★ ★★★★ ★★★
Chip Control ★ ★★★★ ★★★★★
Vibration Stability ★★ ★★★★ ★★★
Best For Steel, cast iron SS, alloy steel Aluminum, copper

*If you’re selling to metal workshops or distributors, always include all 3 tooth types in your catalog—they cover 90% of market needs.
