Solid Carbide Rotary Burr SF-43, 1/8-Inch Diameter, Tree Shape With Pointed End, Double Cut For Steel
Solid Carbide Rotary Burr SF-43, 1/8-Inch Diameter, Tree Shape With Pointed End, Double Cut For Steel
Specifications
Brand Name :
BABOS
Model Number :
SF-43
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Ball Nosed Tree
Cut Diameter :
1/8"
Cut Length :
9/16"
Shank Diameter :
1/8"
Overall Length :
1.5"
Flute(Cut) Type :
Standard Double Cut(Single Cut, Aluminum Cut, Diamond Cut, Fine Cut, Wide Cut, Stainless Steel Cut)
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1
Max Rpm :
50,000
Description

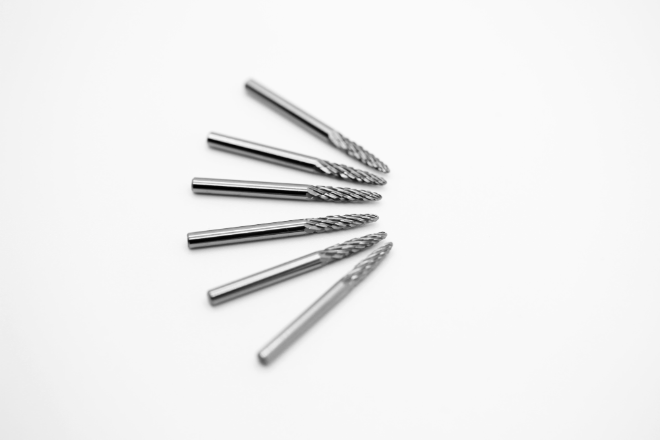

SF-43 Carbide Burr - 1/8" Tree Shape Rotary File for Die Grinder

The SF-43 Tree Shape Solid Carbide Rotary Burr is a high-performance industrial tool engineered for precision grinding, deburring, and material removal. Featuring a 1/8" head diameter and a pointed tree profile, this burr is specifically designed for reaching narrow gaps, sharp angles, and intricate contours that standard cylindrical or ball-shaped bits simply cannot access.

Crafted from premium-grade tungsten carbide, it offers exceptional heat resistance and edge retention, allowing for extended use on hardened materials without losing its bite.

SF-43 Tree Radius End Solid Tungsten Carbide Burr

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/8"

Length of Flute: 9/16"

Shank Diameter:1/8"

OAL: 1.5"

Cut Type: Standard Double Cut(other cut types available: Single Cut, Aluminum Cut, Diamond Cut, Fine Cut, Wide Cut, Stainless Steel)

Other Available Sizes Related to Type F Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length. (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 13 38 F0313 Solid
5 13 51 F0513 Brazed
6 13 51 F0613 Brazed
6 6 18 63 F0618 Brazed
8 20 65 F0820 Brazed
10 20 65 F1020 Brazed
11 25 70 F1125 Brazed
12 25 70 F1225 Brazed
16 25 70 F1625 Brazed
19 25 70 F1925 Brazed
8 12 25 70 F1225 Brazed
16 25 70 F1625 Brazed
19 25 70 F1925 Brazed
Inch Standard
1/8'' 1/8'' 1/2'' 1/2'' SF-42 Solid
1/4'' 1/2'' 2'' SF-51 Brazed
1/4'' 3/8'' 3/4'' 1/2'' SF-3 Brazed
7/16'' 1'' 3/4'' SF-4 Brazed
1/2'' 3/4'' 1/2'' SF-13 Brazed
5/8'' 1'' 3/4'' SF-6 Brazed
3/4'' 1'' 3/4'' SF-7 Brazed
3/4'' 1/4'' 3'' SF-14 Brazed
3/8'' 3/4'' 1/4'' 1/4'' SF-15 Brazed


Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type F burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
