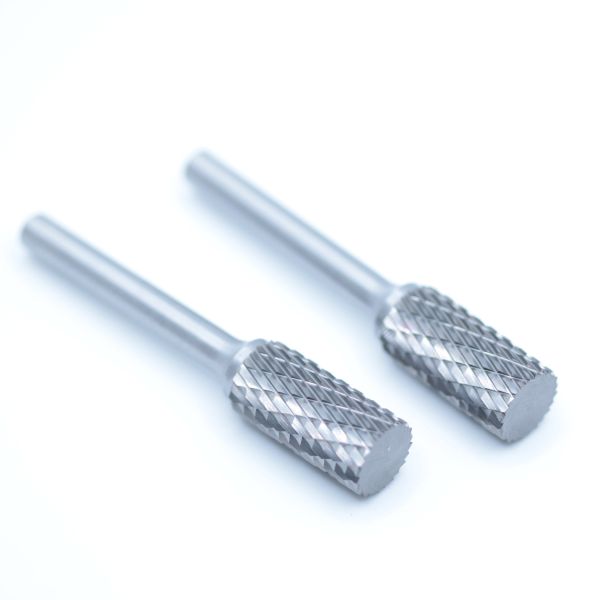

SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank
SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank
SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank
SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank
Specifications
Brand Name :
BABOS
Model Number :
B1225X06
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,0000 per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Cylinder With End Cut
Cut Diameter :
12mm
Cut Length :
25mm
Shank Diameter :
6mm or 1/4"
Overall Length :
70mm
Flute Type :
Standard Double Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1 Piece
Max Rpm :
50,000
Description

SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank

Description:

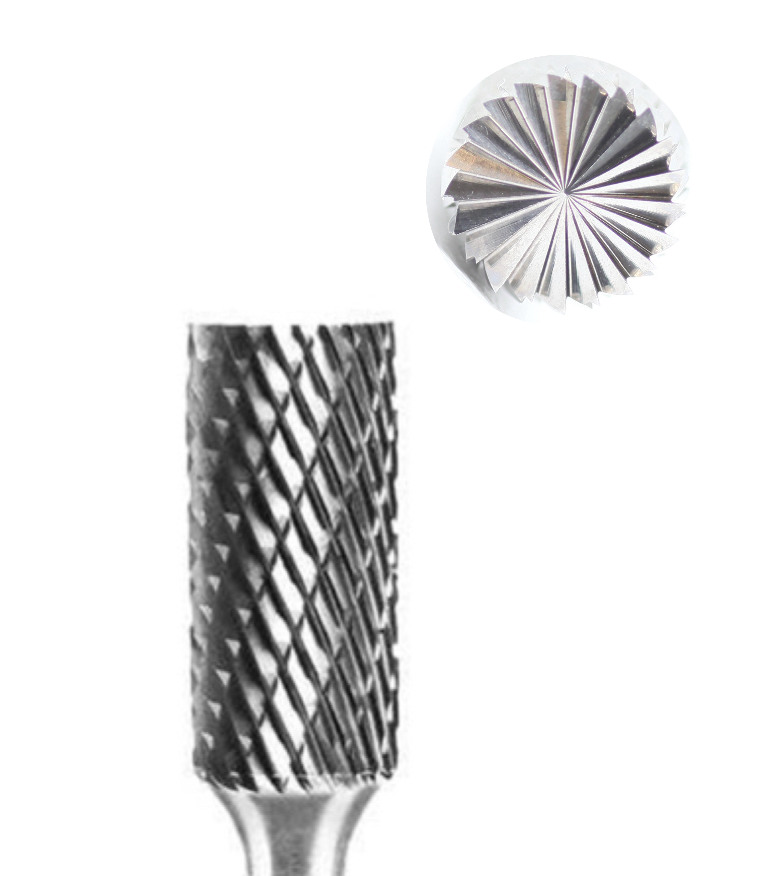

Cylindrical with end cut (“SB” shape tungsten carbide burrs) represent the cutting head is a cylinder with the cut edge both on the sides but also on the end or tip. This makes it suitable for both side-surface material removal and for facing/flat-bottom cuts.

SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank

Dimensions and material:

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter: 12mm

Length of Flute: 25mm

Shank Diameter: 6mm/1/4"

OAL: 70mm

Cut Type: Standard Double Cut(other cut types available: Single Cut, Aluminum Cut, Diamond Cut, Fine Cut, Wide Cut)

Other Available Sizes Related to Type B Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Legth of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 1.5 6 38 B1506 Solid
2 11 38 B0211 Solid
2.5 12 38 B2512 Solid
3 13 38 B0313 Solid
4 13 51 B0413 Brazed
5 13 51 B0513 Brazed
6 13 51 B0613 Brazed
6 6 16 63 B0616 Brazed
6 25 65 B0625 Solid
8 20 65 B0820 Brazed
10 20 70 B1020 Brazed
11 25 70 B1125 Brazed
12 25 70 B1225 Brazed
16 25 70 B1625 Brazed
19 25 70 B1925 Brazed
25 25 70 B2525 Brazed
8 12 25 70 B1225 Brazed
16 25 70 B1625 Brazed
19 25 70 B1925 Brazed
25 25 70 B2525 Brazed
Inch Standard
3/8'' 7/8" 1" 2-3/4" SB-8 Brazed
1/8'' 1/16" 1/4" 1-1/2" SB-41 Solid
1/8" 9/16" 1-1/2" SB-43 Solid
1/4'' 5/32" 5/8" 2" SB-13 Solid
3/16" 5/8" 2'' SB-14 Solid
1/4" 5/8" 2'' SB-1 Solid
1/4" 1" 2'' SB-1L Solid
3/8" 3/4'' 2-1/2" SB-3 Brazed
7/16" 1" 2-3/4" SB-4 Brazed
1/2" 1" 2-3/4" SB-5 Brazed
5/8" 1" 2-3/4" SB-6 Brazed
3/4" 1" 2-3/4" SB-7 Brazed
1" 1" 2-3/4" SB-9 Brazed

Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type B burrs or other shapes of burrs.
  3. OEM is avaliable.As a professional manufacturer of solid carbide rotary burrs, we offer products in different standard sizes (imperial/metric) based on customer requirements. We can also provide customized flute design and production according to various workpiece materials.

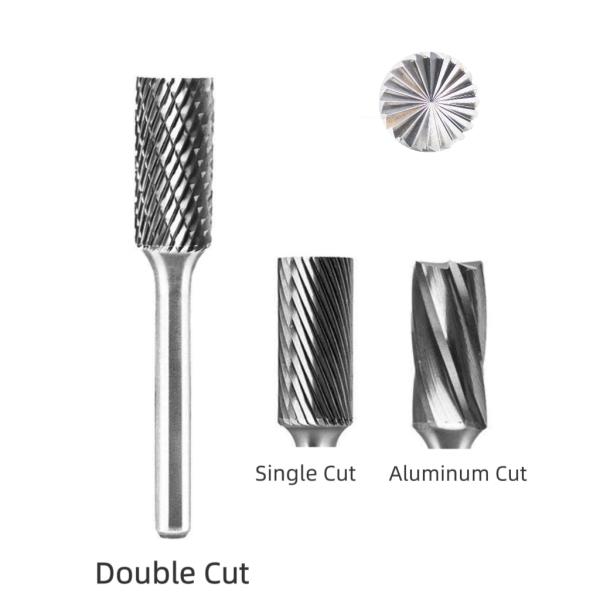

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank SB Cylindrical End Cut tungsten Carbide Burrs 12mm*25mm Standard Double Cut With 6mm Shank
