B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut
B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut
B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut
B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut
B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut
B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut
Specifications
Brand Name :
BABOS
Model Number :
B0304X03-50
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Cylindrical Radius
Cut Diameter :
3mm
Cut Length :
14mm
Shank Diameter :
3mm
Overall Length :
50mm
Flute Type :
Standard Double Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1 Piece
Max Rpm :
50,000
Description

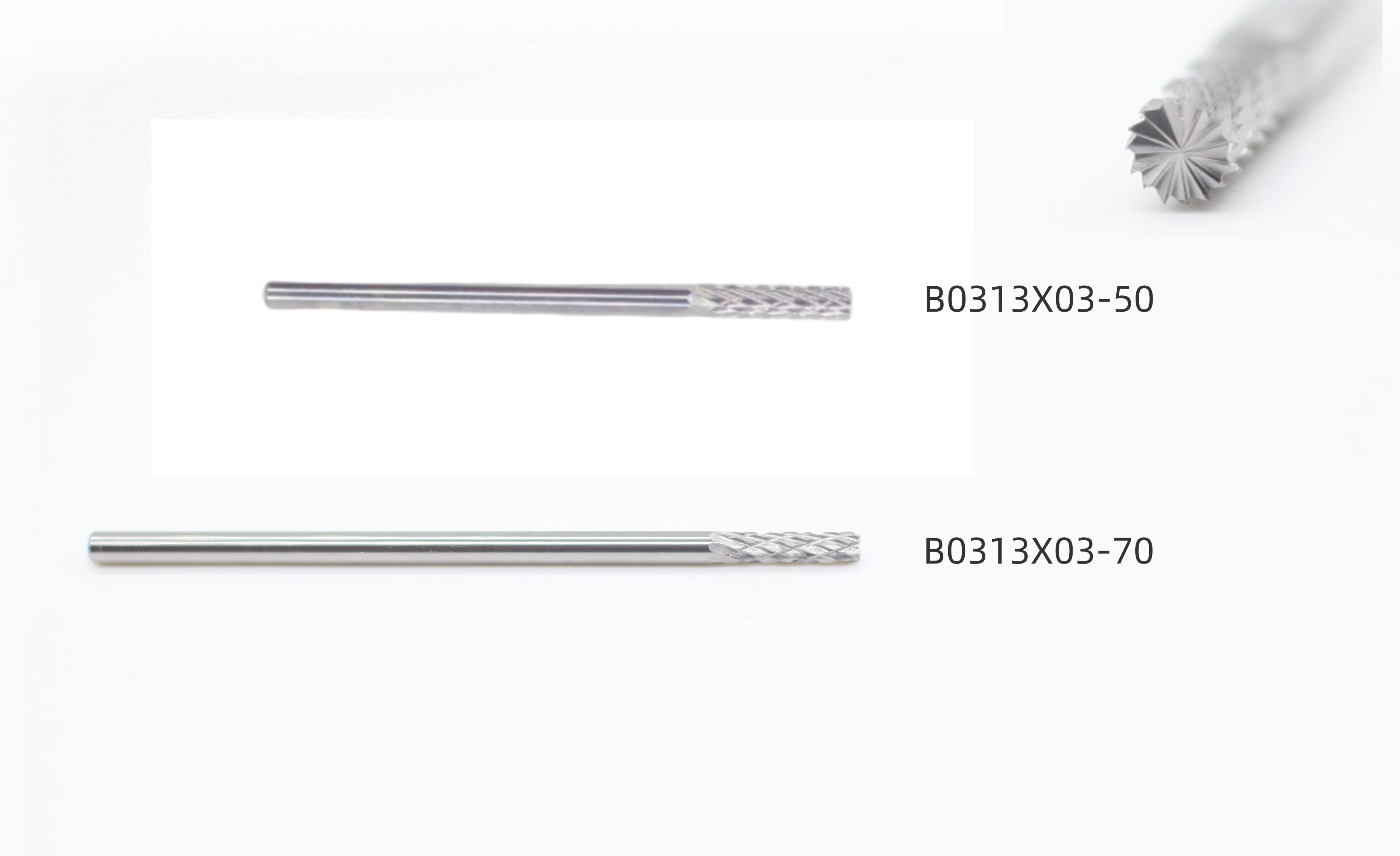

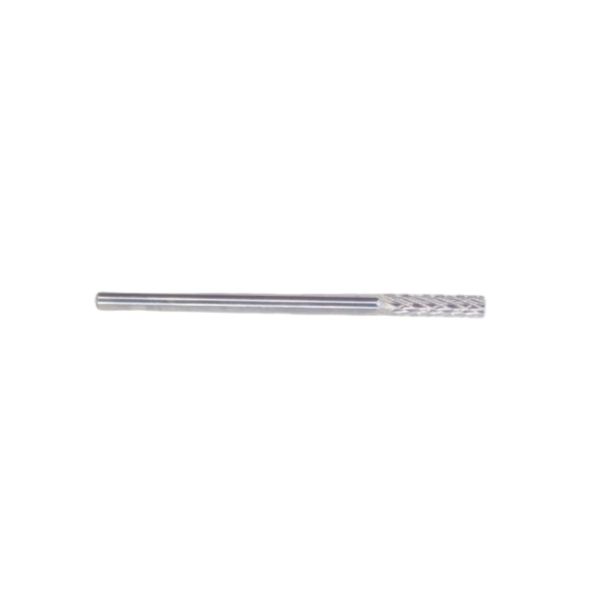

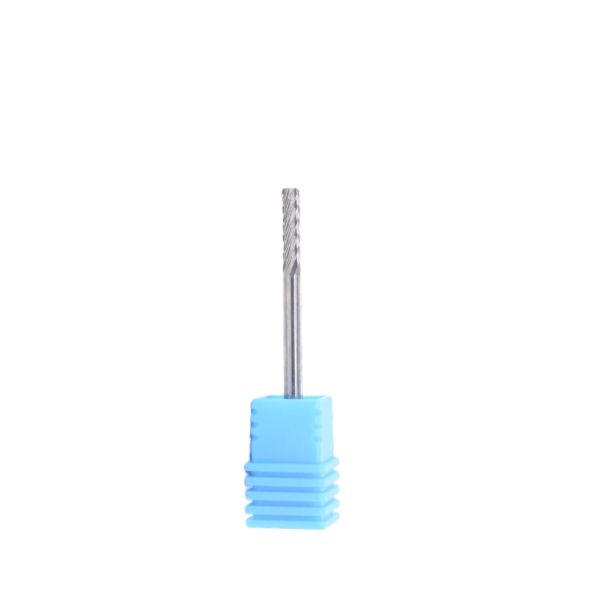

SB Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut

Description:

This SB Cylindrical End Cut Solid Carbide Burrs features an 3mm diameter with a 14mm cutting length, designed for die correction works. Other dimensions can also be customized.

B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3mm

Length of Flute: 14mm

Shank Diameter: 3mm

OAL:50mm

Cut Type: Standard Double Cut

Available Shapes(A-N)

B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut

SA: Cylindrical (Without End Cut)
SB: Cylindrical With End Cut
SC: Cylindrical Ball Nose(Cylindrical Radius End)
SD: Ball Shape
SE: Oval Shape
SF: Tree RadiusShape
SG: Tree Point Shape
SH: Flame Shape
SJ: 60-degree countersink
SK: 90-degree countersink
SL: Ball Nosed Cone Shape(Taper Radius End)
SM: Cone Shape
SN: Inverted Cone Shape

Other Available Sizes Related to Type B Cylindrical End Cut​ Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Legth of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 1.5 6 38 B1506 Solid
2 11 38 B0211 Solid
2.5 12 38 B2512 Solid
3 13 38 B0313 Solid
4 13 51 B0413 Brazed
5 13 51 B0513 Brazed
6 13 51 B0613 Brazed
6 6 16 63 B0616 Brazed
6 25 65 B0625 Solid
8 20 65 B0820 Brazed
10 20 70 B1020 Brazed
11 25 70 B1125 Brazed
12 25 70 B1225 Brazed
16 25 70 B1625 Brazed
19 25 70 B1925 Brazed
25 25 70 B2525 Brazed
8 12 25 70 B1225 Brazed
16 25 70 B1625 Brazed
19 25 70 B1925 Brazed
25 25 70 B2525 Brazed
Inch Standard
3/8'' 7/8" 1" 2-3/4" SB-8 Brazed
1/8'' 1/16" 1/4" 1-1/2" SB-41 Solid
1/8" 9/16" 1-1/2" SB-43 Solid
1/4'' 5/32" 5/8" 2" SB-13 Solid
3/16" 5/8" 2'' SB-14 Solid
1/4" 5/8" 2'' SB-1 Solid
1/4" 1" 2'' SB-1L Solid
3/8" 3/4'' 2-1/2" SB-3 Brazed
7/16" 1" 2-3/4" SB-4 Brazed
1/2" 1" 2-3/4" SB-5 Brazed
5/8" 1" 2-3/4" SB-6 Brazed
3/4" 1" 2-3/4" SB-7 Brazed
1" 1" 2-3/4" SB-9 Brazed

Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type B burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut B Cylindrical End Cut Solid Carbide Burrs B0313X03-50 Standard Double Cut
