4 Inch TPU Medical Caster Wheels 130kg Load Capacity
4 Inch TPU Medical Caster Wheels 130kg Load Capacity
4 Inch TPU Medical Caster Wheels 130kg Load Capacity
4 Inch TPU Medical Caster Wheels 130kg Load Capacity
Specifications
Brand Name :
EDL
Model Number :
E574-77
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
Light Duty Medical Caster Wheels
Wheel Diameter :
4inch(100mm)
Tread Material :
TPU
Dynamic Load :
130kg
Standard Threaded :
M12X25
Mounting Height :
145mm
Frame Material :
Cold-Rolled Plate
Bracket Thickness :
2.5mm
Surface Material :
ABS
Bracket Width :
41mm
Wheel width :
31mm
Bearing :
Single Ball Bearing
Tread Color :
Grey
Core Material :
PP
Applicable Temperature :
-20℃～80℃
Tread Hardness :
95A
Description

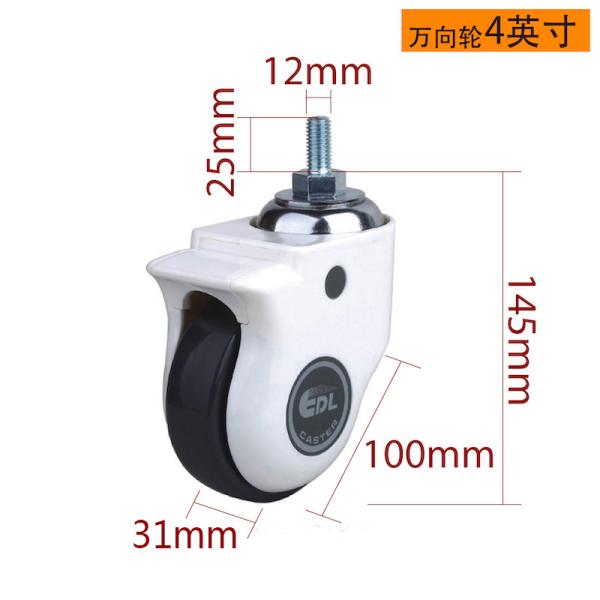

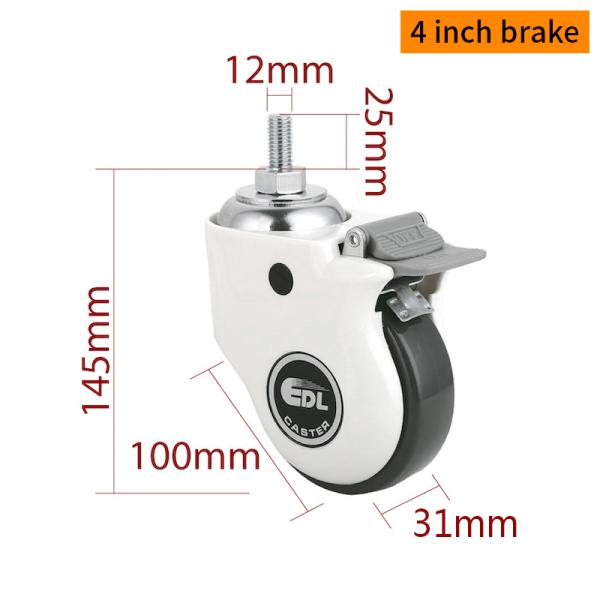

EDL Medium Duty Medical Caster TPU Wheels 4 Inch 130Kg by Swivel and Brake type E574-77


The EDL Medium Duty Medical Caster E574-77 is engineered for heavier medical and laboratory equipment that demands both strength and precision movement. Its 4-inch TPU wheels ensure smooth, low-noise rolling while providing superior floor protection and resistance to wear. With an impressive 130 kg load capacity, this caster delivers stability and reliability even under demanding use. The ABS housing offers a robust yet lightweight structure, resisting impacts and maintaining a professional, easy-to-clean appearance. The threaded stem allows for secure installation, while options for swivel provide full directional control and brake type ensure safe, stationary positioning. Ideal for hospital beds, larger medical carts, and diagnostic machines, this caster is built to enhance mobility, reduce operational noise, and extend service life in intensive healthcare environments.

Wheel ltem No.Instruction

Wheel

item no.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

 Load Capacity Core Tread Bearing

Applicable

temperature

 Hardness
E574-77 4" 100mm 31mm 41mm 130Kg PP

TPU

Single ball

bearing

 -20℃～80℃ 95A

4 Inch TPU Medical Caster Wheels 130kg Load Capacity4 Inch TPU Medical Caster Wheels 130kg Load Capacity

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
