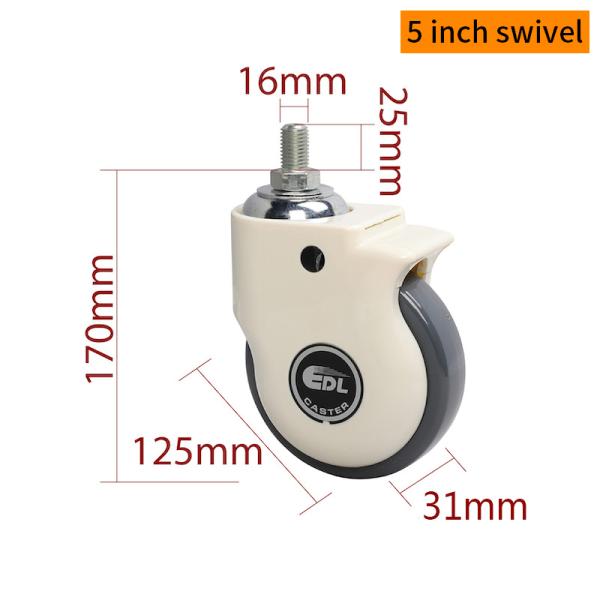

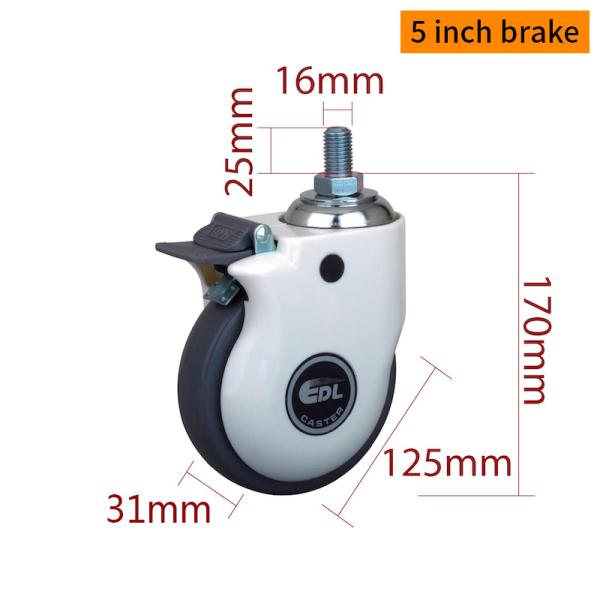

5 Inch Medical Caster Wheels TPU Tread 130kg Load
5 Inch Medical Caster Wheels TPU Tread 130kg Load
5 Inch Medical Caster Wheels TPU Tread 130kg Load
5 Inch Medical Caster Wheels TPU Tread 130kg Load
Specifications
Brand Name :
EDL
Model Number :
E575-77
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
Light Duty Medical Caster Wheels
Wheel Diameter :
5inch(125mm)
Tread Material :
TPU
Dynamic Load :
130kg
Standard Threaded :
M16X25
Mounting Height :
170mm
Frame Material :
Cold-Rolled Plate
Bracket Thickness :
2.5mm
Surface Material :
ABS
Bracket Width :
41mm
Wheel width :
31mm
Bearing :
Single Ball Bearing
Tread Color :
Grey
Core Material :
PP
Applicable Temperature :
-20℃～80℃
Tread Hardness :
95A
Description

EDL Medium Duty Medical Caster TPU Wheels 5 Inch 130Kg by Swivel and Brake type E575-77

The EDL Medium Duty Medical Caster E575-77 is built for heavy-duty healthcare and laboratory applications that require both strength and precision movement. Fitted with 5-inch TPU wheels, it ensures smooth, low-noise operation, excellent wear resistance, and reliable floor protection. With a 130 kg load capacity, it supports demanding equipment such as hospital beds, large medical carts, patient transport trolleys, anesthesia machines, and imaging devices. The ABS outer housing offers a strong yet lightweight frame, resisting impacts while maintaining a clean, professional appearance. A threaded stem makes installation secure and straightforward. Available in swivel for agile 360° maneuverability or brake type for steady, fixed positioning, it’s ideal for hospitals, surgical centers, laboratories, and rehabilitation facilities. Designed for comfort, durability, and control, this caster keeps equipment mobile and operations efficient in busy medical environments.

Wheel ltem No.Instruction

Wheel

item no.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

 Load Capacity Core Tread Bearing

Applicable

temperature

 Hardness
E575-77 5" 125mm 31mm 41mm 130Kg PP

TPU

Single ball

bearing

 -20℃～80℃ 95A

5 Inch Medical Caster Wheels TPU Tread 130kg Load5 Inch Medical Caster Wheels TPU Tread 130kg Load

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
