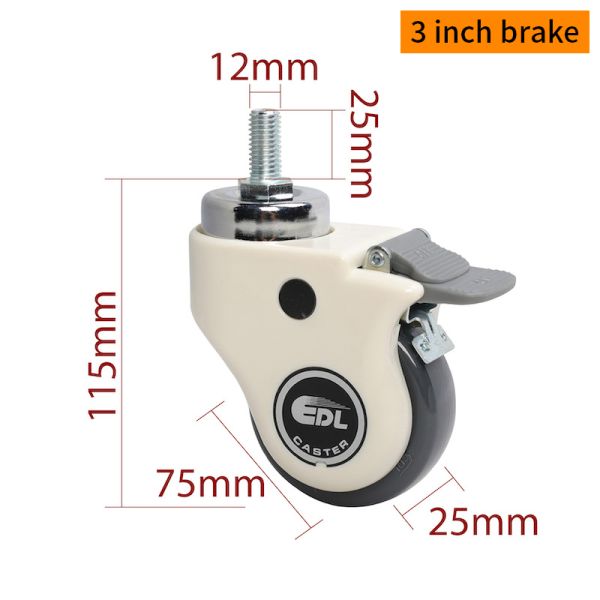

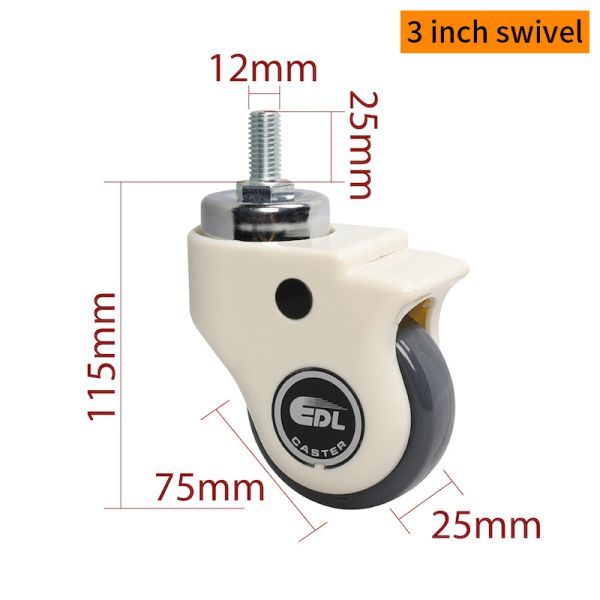

3 Inch TPU Medical Caster Wheels 80kg Load Swivel Brake Type
3 Inch TPU Medical Caster Wheels 80kg Load Swivel Brake Type
3 Inch TPU Medical Caster Wheels 80kg Load Swivel Brake Type
3 Inch TPU Medical Caster Wheels 80kg Load Swivel Brake Type
Specifications
Brand Name :
EDL
Model Number :
E373-77
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
Light Duty Medical Caster Wheels
Wheel Diameter :
3inch(75mm)
Tread Material :
TPU
Dynamic Load :
80kg
Standard Threaded :
M12X25
Mounting Height :
115mm
Frame Material :
Cold-Rolled Plate
Bracket Thickness :
2mm
Surface Material :
ABS
Bracket Width :
33mm
Wheel width :
25mm
Bearing :
Single Ball Bearing
Tread Color :
Grey
Core Material :
PP
Applicable Temperature :
-20℃～80℃
Tread Hardness :
95A
Description

EDL Light Duty Medical Caster TPU Wheels 3Inch Loading 80Kg by Swivel and Brake type E373-77

The EDL Light Duty Medical Caster is built for dependable performance in compact medical equipment and tight spaces. Its 3-inch TPU wheels deliver smooth, quiet rolling with outstanding wear resistance, while protecting floors from marks or scratches. The caster supports up to 80 kg, making it suitable for small but heavy-duty medical carts, stands, and diagnostic devices. The ABS outer shell provides a clean look, lightweight structure, and strong impact resistance. With a threaded stem design, it installs securely and effortlessly. Choose the swivel version for agile movement or the brake type for secure, fixed positioning when stability is required. Ideal for use in hospitals, clinics, and laboratories, this caster offers reliable maneuverability, reduced noise, and long service life, ensuring efficiency and patient comfort in daily operations.


Wheel ltem No.Instruction

Wheel

item no.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

 Load Capacity Core Tread Bearing

Applicable

temperature

 Hardness
E373-77 3" 75mm 25mm 33mm 80Kg PP

TPU

Single ball

bearing

 -20℃～80℃ 95A

3 Inch TPU Medical Caster Wheels 80kg Load Swivel Brake Type3 Inch TPU Medical Caster Wheels 80kg Load Swivel Brake Type

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
