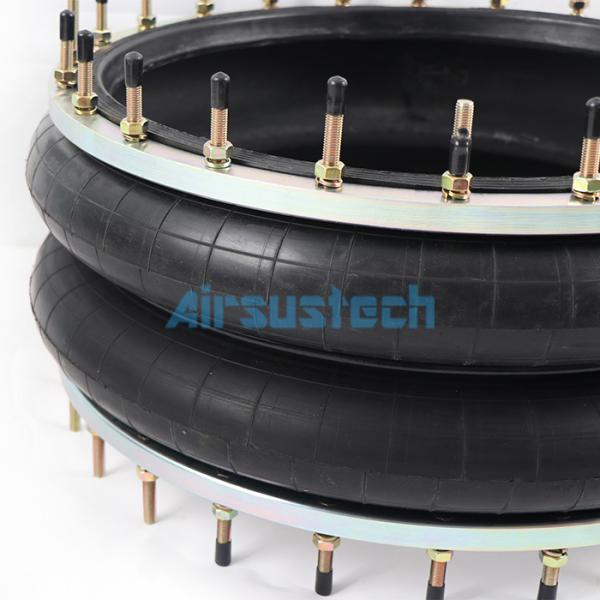

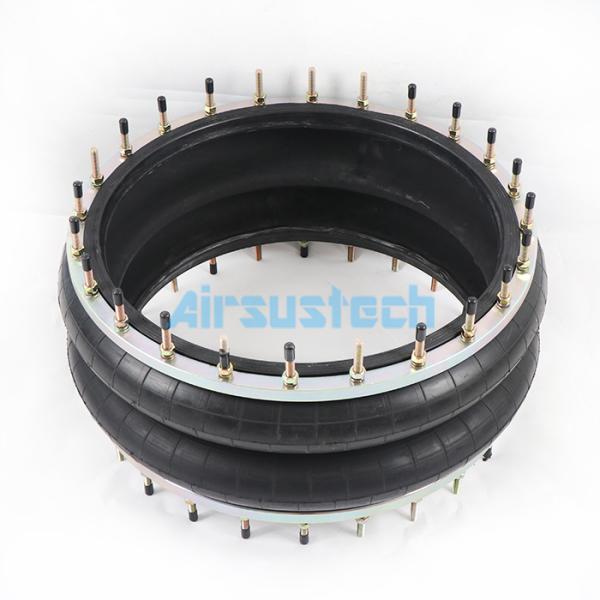

Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2H630262
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Trademark :
AIRSUSTECH
Product Number :
2H630262
Structure :
Double Convoluted
Temperature Rating :
-40℃+70℃
Manufacturer Warranty :
One Year
Firestone :
W01-358-7775
Operating Pressure :
0 Bar-8 Bar
Ships To :
Worldwide
Description

Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke

Product Specifications

Flange Diameter 23.64 inches
Min. Height 3.5 inches
Max. Height 12 inches
Center-to-Center Distance 22 inches
Thread Hole 24(3/8-24)
Max. Outer Diameter

26 inches
Bellow Type double convolutions
Material natural rubber
Operation gas-fiiled
Compatibility Universal

Other OEM Numbers

Style 200

Two Ply Bellows

 Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers

W01-358-7772, W013587772, W01 358 7772

WO1-358-7772, WO13587772, WO1 358 7772
Ribbed neck aluminum bead rings (equal spacing) 11/4 bolts, nuts, washers

W01-358-7775, W013587775, W01 358 7775

WO1-358-7775, WO13587775, WO1 358 7775
Rubber bellows only

W01-358-5126, W013585126, W01 358 5126

WO1-358-5126, WO13585126, WO1 358 5126

Supports And Services

From Original Equipment Manufacturers (OEM) to aftermarket applications, Enidine offers a unique combination of product selection, engineering excellence and technical support to meet even the toughest application needs.

  • Global Manufacturing and Sales Facilities offer our customers:
  • Highly Trained Distribution Network
  • State-of-the Art Engineering Capabilities
  • Custom Solution Development
  • Customer Service Specialists
  • Multiple Open Communication Channels

Through constant evaluation and testing, we bring our customers the most cost effective products with more features, greater performance and improved ease of use for every application requirement.

We Have Other Rubber Air Suspensions

Firestone Number Firestone Style Firestone Number Firestone Style
W01-M58-6379 21 W01-M58-6381 22
W01-M58-6382 22 W01-M58-6383 22-1.5
W01-M58-6384 22-1.5 W01-M58-6387 26
W01-M58-6400 224 W01-M58-6880 2月20日
W01-M58-6966 121 W01-M58-6967 328
W01-M58-6968 324 W01-M58-6969 148-1
W01-M58-6970 248-2 W01-M58-6971 348-3
W01-M58-6972 138-1.5 W01-M58-6973 126
W01-M58-6974 119 W01-M58-6975 19
W01-M58-6976 210 W01-M58-6977 115
W01-M58-6978 215 (formerly 211) W01-M58-6979 200
W01-M58-6980 323 W01-M58-6981 314
W01-M58-6983 320 W01-M58-6984 321 (formerly 319)
W01-M58-6985 203 W01-M58-6986 218
W01-M58-6987 207 W01-M58-6988 26

The Related Pictures of 2H630262

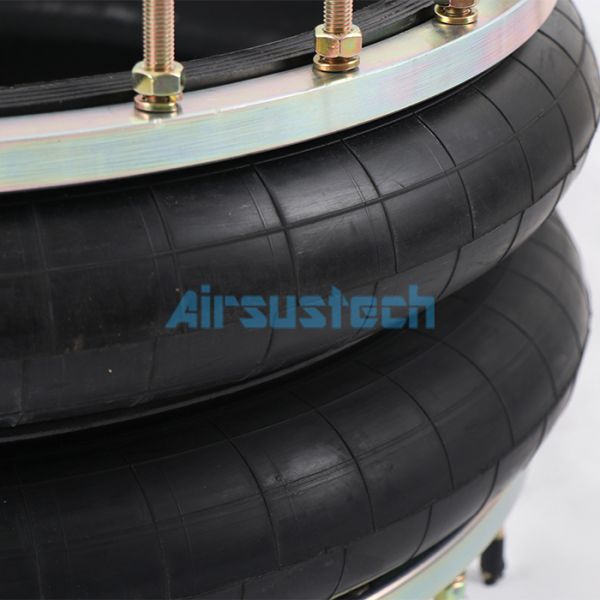

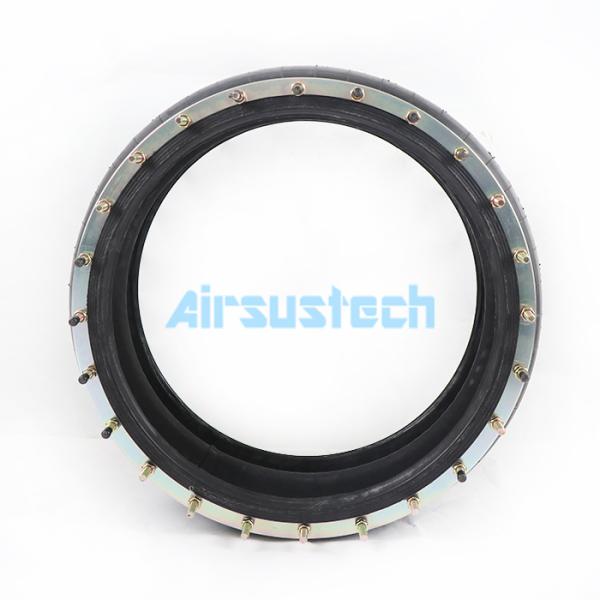

Aluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full StrokeAluminum Bead Ring Firestone W01-358-7772 Air Shock Spring 8.5 Inches Full Stroke
