66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B8×1T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
1B8×1T
Stroke :
80 MM
Types of Good :
Flange Connection Air Spring
Air Hole :
G1/2
Convolution :
One
Color :
Black
Norgren :
M/31081
Description
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
Product Attributes
Attribute Value
Brand Name AIRSUSTECH
Model NO. 1B8×1T
Stroke 80 MM
Types of Good Flange Connection Air Spring
Air Hole G1/2
Convolution One
Color Black
Norgren M/31081
Product Description

66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size

Product Introduction

1B8 ×1T single convoluted flange ring rubber air bag by AIRSUSTECH, it refers Contitech FS 138-8 DS air actuator. The AIRSUSTECH flange-connected air spring is a high-performance solution designed to effectively eliminate abnormal noise while delivering superior shock absorption for machinery and equipment. It ensures straightforward installation, minimal maintenance, and extended service life, making it an ideal pneumatic suspension component for industrial and automotive applications.

Part Interchanges

Firestone Style: W01-R58-4054 / WO1-R58-4054
Firestone Style: W01R584054 / WO1R584054
Firestone Style: W01 R58 4054 / WO1 R58 4054

Replace Dunlop Pneuride: 8×1
Replace Dunlop Pneuride: 8'×1
Replace Dunlop Pneuride: 8''×1

Dunlop Springride: SP1537

Contitech Air Bellows: FS 138-8 DS G1/2
Contitech Air Bellows: FS 138 8 DS G1/2 M10
Contitech Air Bellows: FS 138 8 DS
Contitech Air Bellows: FS 138 8 DS M10 G1/2

Norgren Part Number: M/31081
Norgren Part Number: M31081
Norgren Part Number: M 31081

Parker 9109014

1B8 ×1T AIRSUSTECH Flange Air Spring Data
[1] Compressed height 50 mm
[2] Extended height 130 mm
[3] Center distance diameter 155.5 mm
[4] Flange ring diameter 184 mm
[5] Maximum outer diameter 230 mm
[6] Installation space required 245 mm
[7] Screw nuts type 4-M10
[8] Air inlet G1/2
AIRSUSTECH Air Spring Procurement Process
  1. OEM Part Identification: Provide original manufacturer part numbers for required air springs.
  2. Technical Validation: We verify specifications against OEM drawings to ensure exact compatibility.
  3. Quotation Request
    Submit:
    • Required quantities
    • Company information
    • Equipment application details
    • Receive customized pricing within 24 hours
  4. Logistics Coordination: Provide complete delivery address + postal code: We calculate freight costs across all carriers
  5. Order Confirmation
    Receive proforma invoice with:
    • Itemized product costs
    • Shipping cost
    • Payment terms
  6. Manufacturing Initiation
    Production commences within 24 hours of:
    • Signed PO acceptance
    • Payment clearance
  7. Global Shipping & Tracking
    • Airway Bill (AWB) number
    • Real-time tracking portal access
    • Commercial invoice copies
Product Images

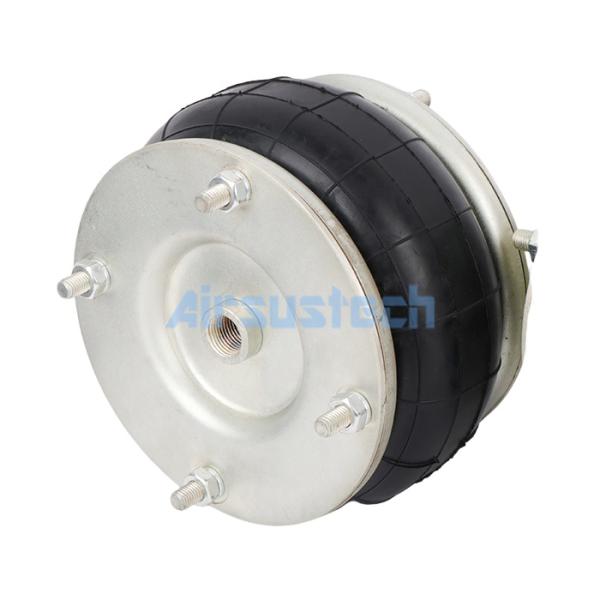

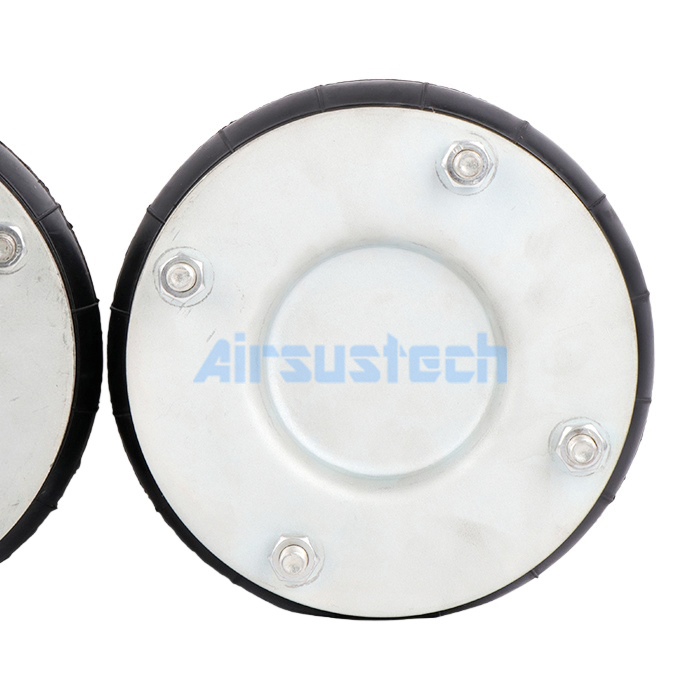

66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
Factory Workshop
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
66507 FS 138-8 DS Continental Flange Ring Rubber Air Bellows with G1/2 Port Size
