Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B8×4
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Brand :
AIRSUSTECH
Part No. :
1B8×4
Port Size :
1/4NPT
Installation Space :
9.65 Inches
Working Temperature :
-40℃+70℃
Function :
Reduce Shock
Operation :
Gas-Filled
Description
Single Convoluted Air Spring Contitech FS 120-10 1/4NPT Continental Air Actuator
Product Attributes
Attribute Value
Brand AIRSUSTECH
Part No. 1B8×4
Port Size 1/4NPT
Installation Space 9.65 Inches
Working Temperature -40℃+70℃
Function Reduce Shock
Place of Origin Guangzhou, China
Operation Gas-Filled
Product Description

Carefully designed for superior performance and versatility, they feature a crimped assembly for strength and durability. The bellows are made of natural rubber, renowned for its exceptional dynamic properties and versatility. This makes our actuators powerful and adaptable to a wide range of operating conditions.

The actuator's top and bottom plates are crimped and zinc-plated. This additional feature ensures excellent corrosion resistance and guarantees long-term high performance. Thanks to their unique combination of performance, adaptability, and durability, our pneumatic bellows actuators are a reliable choice for all industrial needs.

Product Specifications
Minimum height 2.0 in.
Max. height 5.9 in.
Maximum diameter 9.09 in.
Installation space required 9.65 in.
Center distance diameter 2.76 in.
Plate diameter 5.55 in.
Air hole 1/4NPT
Threaded hole type 3/8-16UNC
Material rubber and steel
Warranty 12 months
Product Corresponding Models
  • Manufacturer: Contitech
  • Refer Number: FS 120-10 / FS 12010 / FS 120 10
  • Manufacturer: Firestone
  • Refer Number: W01-358-7564 / W013587564 / W01 358 7564
  • Manufacturer: Goodyear
  • Refer Number: 1B8-550 / 1B8550 / 1B8 550
  • Manufacturer: Goodyear
  • Refer Number: 579-913-530 / 579913530 / 579 913 530
Packaging & Shipping
Packing Details
  • One piece in a poly bag.1piece in a carton.
  • Mark the product numbers and the QTY outside the carton.
  • As your requirement.
Shipping Details
  • Delivery time: Usually 2-8 working days after receiving the payment.
  • Shipping by Air, By Sea, By Express (DHL, UPS, FEDEX...)
  • Please make sure the address is correct, after the goods are shipped, we will track the logistics information until you receive the goods.

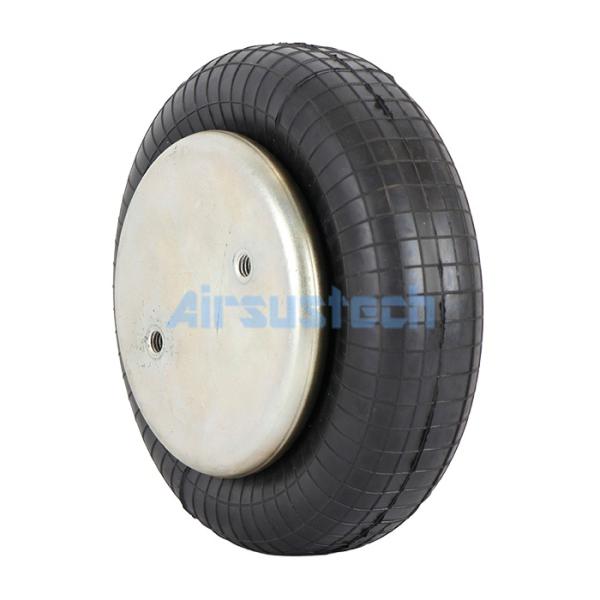

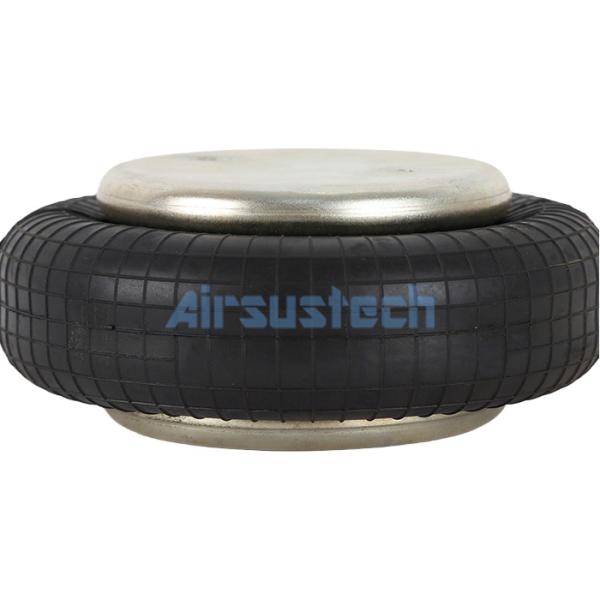

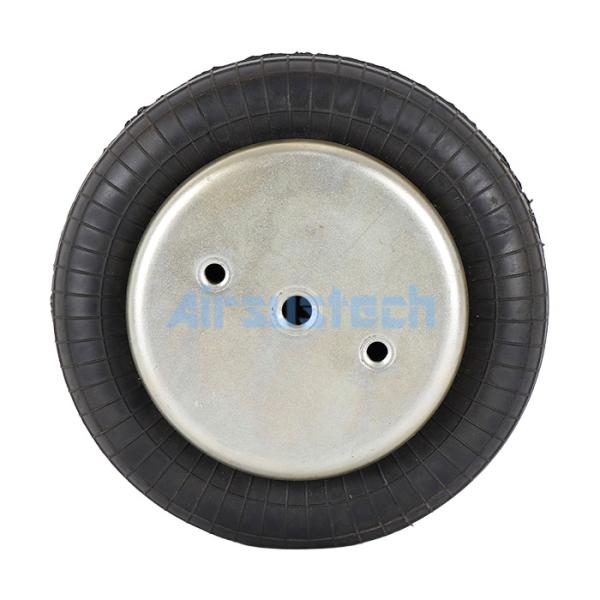

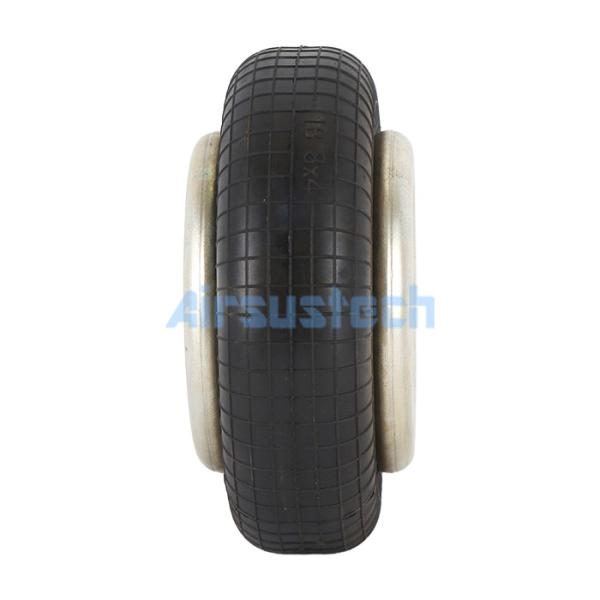

Product Images
Single Convoluted Air Spring Contitech FS 120-10 1/4NPT Continental Air Actuator
Single Convoluted Air Spring Contitech FS 120-10 1/4NPT Continental Air Actuator

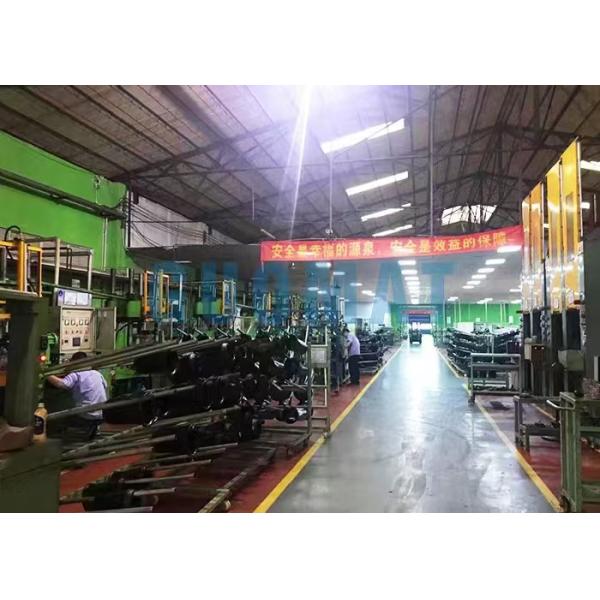

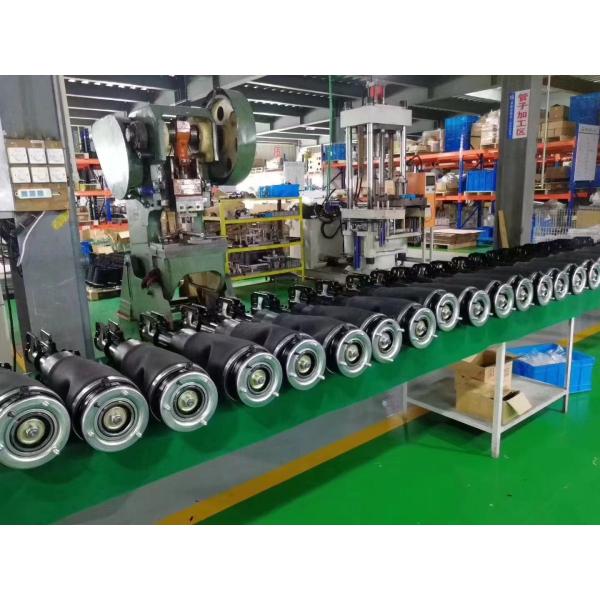

Factory Workshop
Single Convoluted Air Spring Contitech FS 120-10 1/4NPT Continental Air Actuator
Single Convoluted Air Spring Contitech FS 120-10 1/4NPT Continental Air Actuator
Single Convoluted Air Spring Contitech FS 120-10 1/4NPT Continental Air Actuator
