Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B4060
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Supplier :
AIRSUSTECH
Prdocut Number :
1B4060
Air Connection :
G 1/8
Working Stroke :
60 MM
Manufacturer Warranty :
One Year
Weforma :
WBE 100-E1
Phoenix :
SP 1B 04
Bellows Type :
Single Convoluted
Description

G1/8 Port Size Rubber Air Spring Contitech FS 40-6 Air Suspension OEM Supplier

1B4060 Specifications

Dimensions - Height[Min]: 50 mm

Dimensions - Height[Max]: 110 mm

Dimensions - Cover Plate Diameter: 90 mm

Dimensions - Maximum Diameter: 145 mm

Dimensions - Center to Center Diameter: 20 mm

Pneumatic Connection: G1/8

Screw Type: M8×1.25

1B4060 Technical Data Sheet

Vibration isolation - dynamic characteristics values

Pressure P [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 1.7 2.3 2.8 3.4 3.8 4.4 0.5
Spring Rate [N/cm] 760 990 1220 1480 1610 1820
Natural Frequency [Hz] 3.5 3.3 3.3 3.3 3.2 3.2

Pneumatic application - static characteristic values

Pressure p [bar] 2 4 5 6 7 8 Vol.[l]
Height H [mm] 100 1.2 1.6 2.0 2.5 3.0 3.4 0.6
90 1.7 2.2 2.8 3.4 3.9 4.4 0.5
80 2.1 2.8 3.5 4.2 4.9 5.3 0.5
70 2.3 3.2 3.9 4.7 5.4 6.2 0.4
60 2.6 3.5 4.3 5.2 6.1 6.9 0.3

Corresponding International Models

Contitech OEM Manufacturer FS 40-6

Contitech OEM Manufacturer FS 406

Contitech OEM Manufacturer FS 40 6
Phoenix OEM Manufacturer SP 1B 04

Phoenix OEM Manufacturer SP 1B04

Phoenix OEM Manufacturer SP1B04
Weforma OEM Manufacturer WBE 100-E1

Weforma OEM Manufacturer WBE 100E1

Weforma OEM Manufacturer WBE100E1

The Applications of AIRSUSTECH Rubber Air Suspensions

1 Dynamic stability protection of cargo
The air spring forms a flexible buffer layer by filling the gaps in the container, effectively absorbing the vibration and impact of the ship during navigation and preventing the displacement of cargo. Its adaptive pressure adjustment function can cope with different types of cargo, especially suitable for the transportation protection of fragile or precision equipment.
2 Liquid cargo transportation stability solution
For highly fluid liquids such as chemicals and oils, the air spring constructs a three-dimensional constraint structure to significantly reduce the liquid sloshing caused by the ship's turbulence. By evenly dispersing the fluid kinetic energy, the vehicle balance is maintained to avoid safety hazards caused by liquid inertia.
3 Container space optimization system
The modular air spring supports customized fixation of special-shaped cargo and adapts to different loading forms through intelligent inflation and deflation adjustment. This solution can not only improve the utilization rate of container space, but also reduce the use of traditional filling materials and reduce the overall transportation cost.

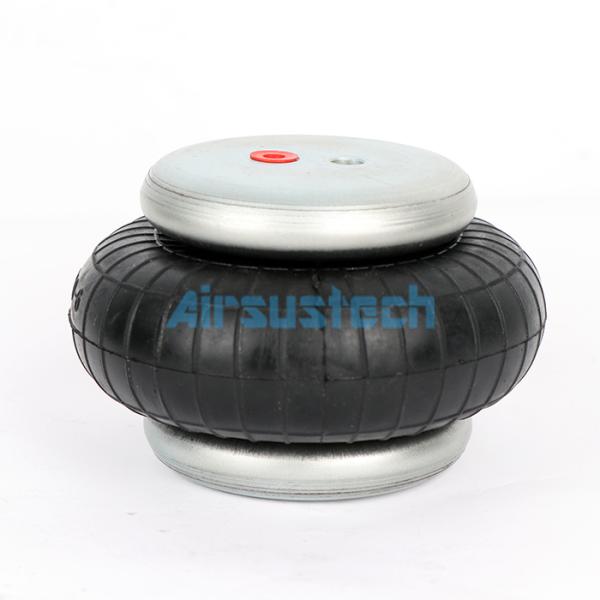

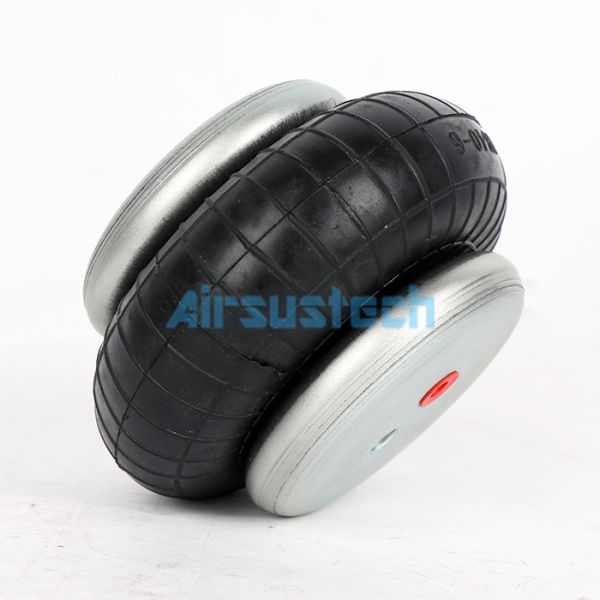

The Related Photos of 1B4060
G1/8 Port Size Rubber Air Spring Contitech FS 40-6 Air Suspension OEM SupplierG1/8 Port Size Rubber Air Spring Contitech FS 40-6 Air Suspension OEM Supplier


Factory Workshop
G1/8 Port Size Rubber Air Spring Contitech FS 40-6 Air Suspension OEM SupplierG1/8 Port Size Rubber Air Spring Contitech FS 40-6 Air Suspension OEM SupplierG1/8 Port Size Rubber Air Spring Contitech FS 40-6 Air Suspension OEM Supplier
