Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B12×1T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 pieces
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Price :
Negotiable
Manufacturer :
AIRSUSTECH
Compatibility :
Universal
Advantages :
Simple to install
Condition :
100% Brand New
Warranty :
12 Months
Plate Diameter :
260 MM
Gas Hole :
G 1/2
Description

Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag



Product Specifications and Technical Parameters


Minimum Height 50 MM
Screw Length 30 MM
Static Diameter 305 MM
Center Distance Diameter 232 MM
Cover Plate Width 260 MM
Air Connection 1/2 BSP
Screw Type 4×M10×1.5


Vibration isolation - dynamic characteristics values

Pressure P [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 11.4 15.3 19.2 23.2 27.1 31.1 5.5
Spring Rate [N/cm] 2900 3720 4510 5310 6120 6890
Natural Frequency [Hz] 2.5 2.5 2.4 2.4 2.4 2.4


Pneumatic application - static characteristic values

Pressure p [bar] 3 4 5 6 7 8 Vol.[l]
Height H [mm] 120 11.2 15.1 18.9 22.9 27.0 31.4 5.5
100 13.9 18.5 23.4 28.2 33.1 38.3 4.6
80 16.5 22.1 27.6 33.4 39.1 45.0 3.4
60 18.5 24.8 31.0 37.2 43.6 50.0 2.2



OEM Original Manufacturer


Firestone Air Bag: W01-R58-4060

Firestone Air Bag: W01R584060

Firestone Air Bag: W01 R58 4060

DUNLOP PNEURIDE Air Bag: 12''×1

DUNLOP PNEURIDE Air Bag: 12'×1

DUNLOP PNEURIDE Air Bag: 12×1

DUNLOP SPRINGRIDE Air Bag: SP1540

DUNLOP SPRINGRIDE Air Bag: SP 1540

DUNLOP SPRINGRIDE Air Bag: SP 15 40

Contitech Air Bag: FS 412-10 DS

Contitech Air Bag: FS 41210 DS

Contitech Air Bag: FS 412 10 DS

Norgren Air Bag: M/31121

Norgren Air Bag: M31121

Norgren Air Bag: M 31121
Parker Air Bag: 9109044



Possible Applications


  1. Industrial Field: It can be used in industrial machinery requiring shock absorption and load - bearing, such as in some automated production lines, where it helps to reduce vibration and impact during equipment operation, protecting the machinery and improving its service life. It may also be used in pneumatic actuators of industrial valves to provide flexible force transmission and precise position control.
  2. Transportation Field: In the suspension systems of some vehicles like trucks and trailers, it can improve ride comfort and stability by evenly distributing the vehicle's weight and absorbing road vibrations. It might also be used in the air - spring - based suspension systems of railway vehicles to enhance ride quality and stability.

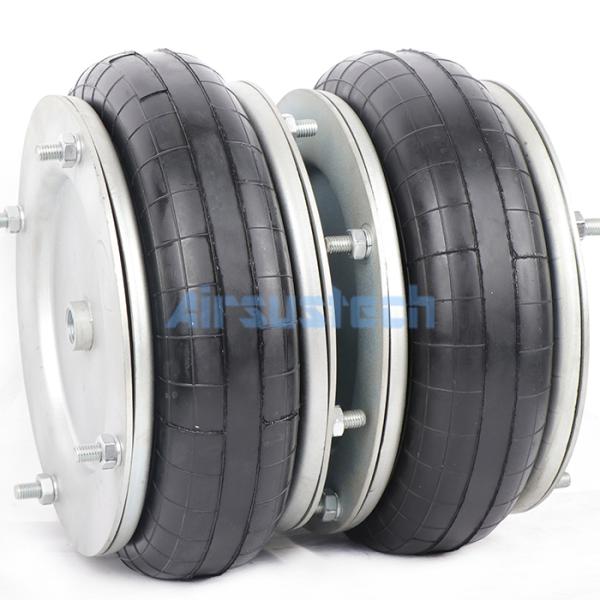

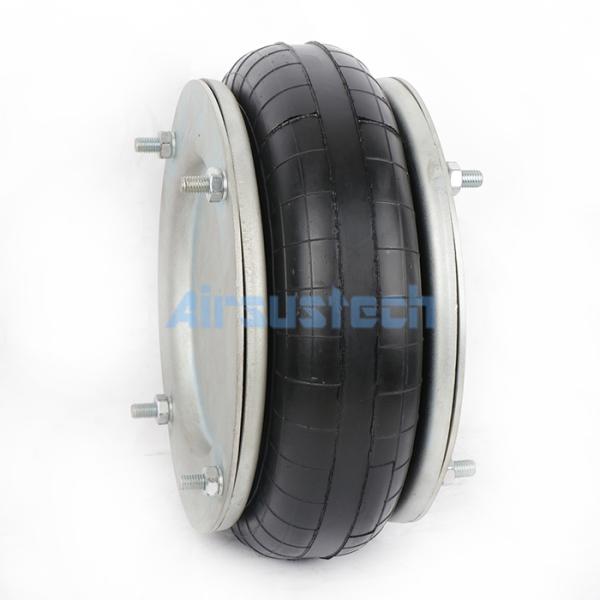

12×1 Real Pictures

Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag

Factory Workshop
Dunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air BagDunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air BagDunlop Airspring Convoluted 12''×1 Pneumatic Air Actuator M31121 Flange Air Bag
