Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6X2P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Compressed Height :
80 MM
Threaded Hole :
4XM8
Structure :
Double Convolutions
Norgren :
PM/31062
Sample :
Available
Durability :
High
Condition :
100% Brand New
Function :
Effective Shock Absorption
Description
115MM Stroke Dunlop A313300201 Convoluted Bellows Air Spring with Aluminum Plate

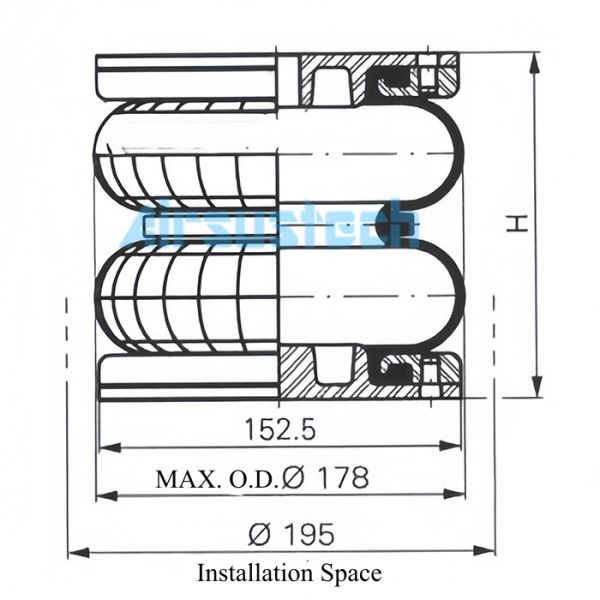

Product Specifications
Manufacturer AIRSUSTECH Dunlop
Part Number 2B6X2P A313300201 / 6X2
Center Distance 127 MM 127 MM
Cover Plate Width 152.5 MM 152.4 MM
Min. Usable Height 80 MM 75 MM
Maximum Height 195 MM 215 MM
Max. Stroke 115 MM 215 MM
Design Height 160 MM 140 MM
Mounting Hole 4XM8 4XM8
Air Connection G1/2 1/2'' BSP
Cross References
Dunlop Air Spring: A 3 1330 02 01, A313300201
Dunlop Pneuride Air Spring: 6"X2 (Al), 6X2 (Al), 6'X2 (Al)
Dunlop Springride Air Spring: SP2917		 Contitech Air Bag: FD 76-14 DI, FD 76 14 DI, FD 7614 DI, FD 76-14 DI G1/2, FD 76-14 DI M8
Firestone Air Suspension: W01-R58-4070, W01 R58 4070, W01R584070, WO1-R58-4070, WO1 R58 4070, WO1R584070 Norgren Air Bellows: PM/31062, PM 31062, PM31062
Oria Industrial Air Bag: 6''X2, 6'X2, 6X2 Parker Rubber Air Spring: 9109001A
Technical Parameters
Min. Pressure: 0 bar
Return Force to Min. Height: ≤180N
Overall Weight with Metal Plates: 2.3 Kg
Vibration Isolation - Dynamic Characteristics
Pressure P [bar] 3 4 5 6 7 8 Vol. V[l]
Force (Load) [kN] 2.6 3.5 4.5 5.5 6.5 7.6 2.0
Spring Rate [N/cm] 675 855 1035 1215 1395 1570
Natural Frequency [Hz] 2.5 2.4 2.4 2.3 2.3 2.3
Pneumatic Application - Static Characteristics
Pressure p [bar] 3 4 5 6 7 8 Vol.[l]
Height H [mm] 160 2.6 3.5 4.5 5.5 6.5 7.6 2.0
Height H [mm] 140 3.3 4.5 5.6 6.8 8.1 9.3 1.7
Height H [mm] 120 3.9 5.2 6.6 8.0 9.4 10.8 1.5
Height H [mm] 100 4.6 6.2 7.8 9.4 11.1 12.8 1.2
Applications
  • Mould separation machines
  • Roll leveling machines
  • Three-dimensional vibration tables
  • Rubber vibration tables
  • Roller friction brake machines
  • Conveyors
  • Straightening machines
  • Vehicle air suspension systems
  • Gate valve actuator air springs
  • Forming presses
  • Cable tensioners
  • Pipe threading machines
  • Tobacco machinery
  • Analytical instruments
  • Secondary lifting equipment
  • Missile transport equipment
  • Aircraft airbags
  • Trampolines
  • High-frequency vibration tables
Product Images

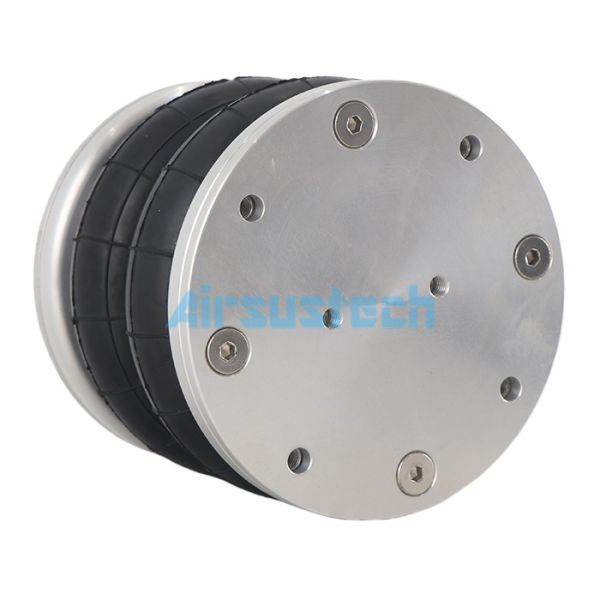

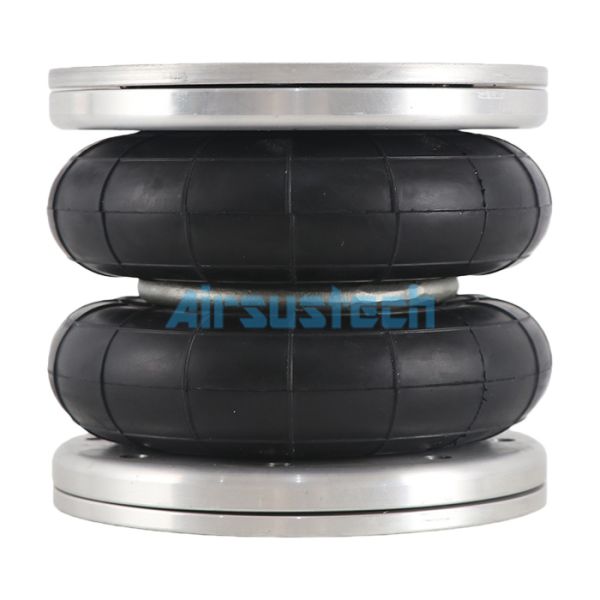

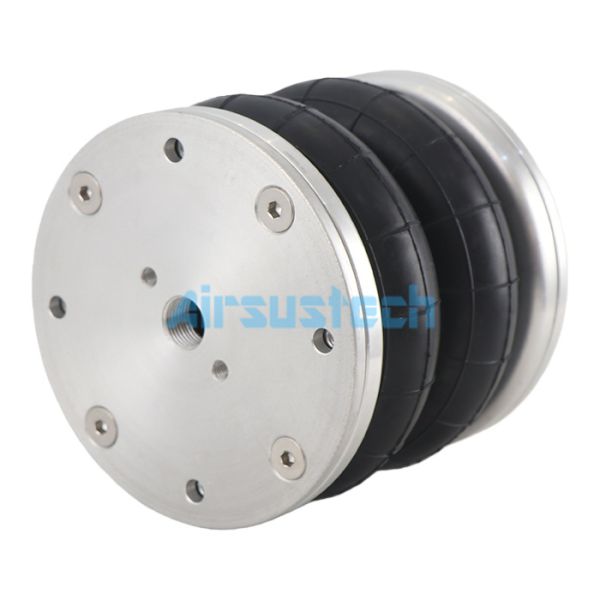

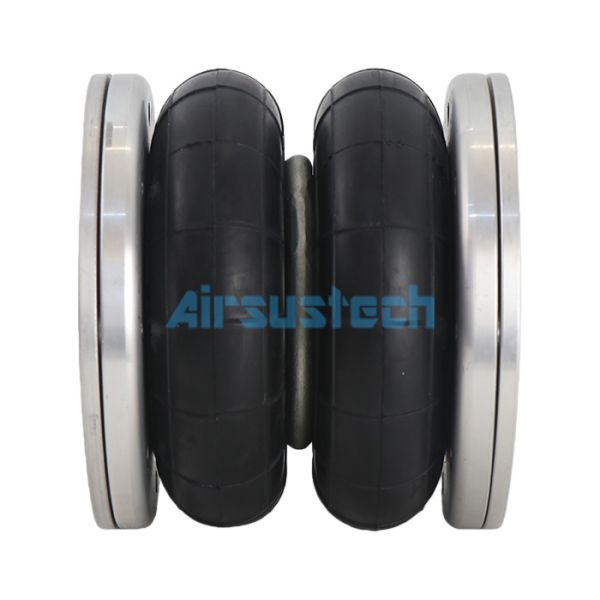

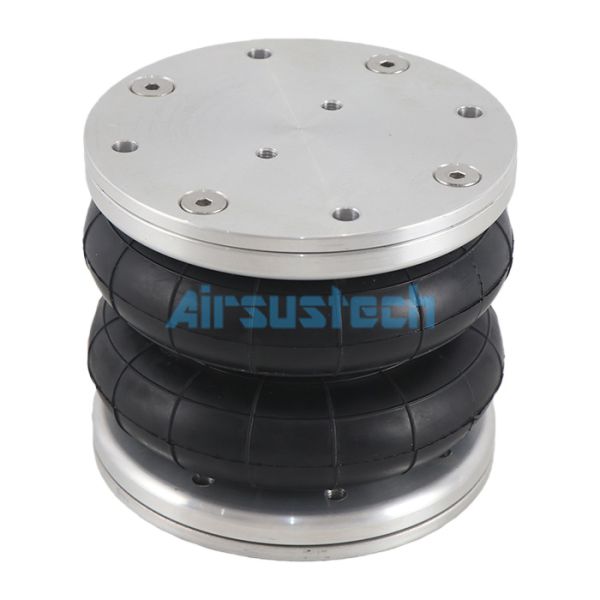

115MM Stroke Dunlop A313300201 Convoluted Bellows Air Spring with Aluminum Plate 115MM Stroke Dunlop A313300201 Convoluted Bellows Air Spring with Aluminum Plate 115MM Stroke Dunlop A313300201 Convoluted Bellows Air Spring with Aluminum Plate 115MM Stroke Dunlop A313300201 Convoluted Bellows Air Spring with Aluminum Plate
