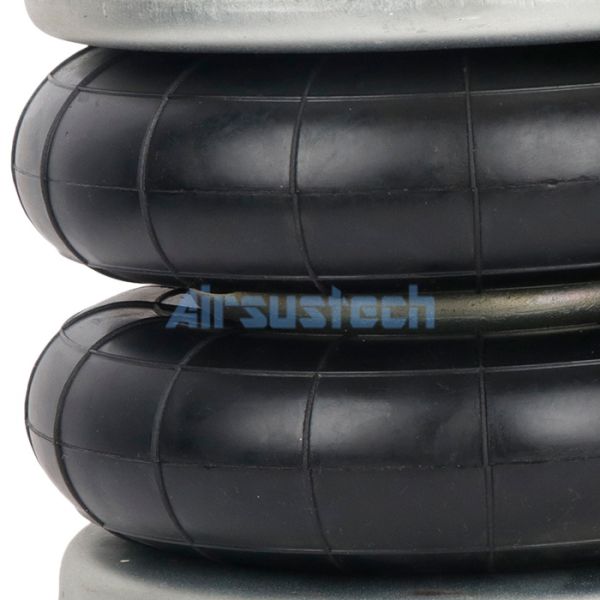

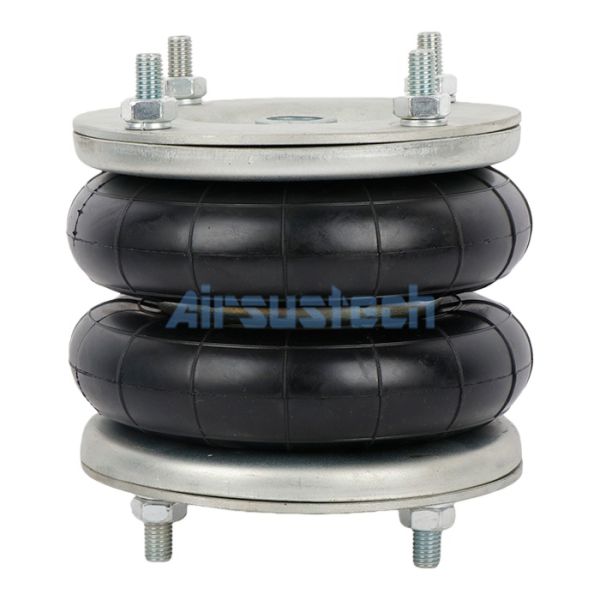

2B6X2T Direct Replacement Dunlop Air Spring PNP 305510111 6X2 Assembly M10 Studs

The Characteristics of AIRSUSTECH 2B6X2T

• This industrial double convoluted air spring is crafted from premium natural rubber and reinforced with steel cover plates. It delivers a minimum compressed height of 73 mm, a maximum extended height of 170 mm, and a working stroke of 97 mm.
• For model AIRSUSTECH NO. 2B6X2T, the cover plate diameter is 153 mm with a center-to-center distance of 127 mm. When pressurized to 0.7 MPa, the maximum outer diameter of the rubber bellows reaches 168 mm.
• This industrial convoluted air spring operates through pneumatic inflation. It is equipped with a 1/2'' BSP air connection and uses 4XM10 screw nuts for installation.

Direct OEM Replacement For

Applications of Pneumatic Air Springs in Industrial Equipment

1. Use in Lifting Mechanisms
Conventional lifting systems often employ cylinders or hydraulic actuators, which typically require significant installation space, involve complex manufacturing, add substantial weight, are susceptible to leaks, and present maintenance challenges. By utilizing industrial air bellows as the core lifting component, these traditional drawbacks are effectively overcome. Rubber air springs require minimal maintenance, offer extended service life, and allow for easy operation and replacement. Consequently, pneumatic air springs are increasingly replacing conventional cylinder products in various lifting applications.

2. Role in Vibration Damping Systems
Industrial air springs excel in high-frequency vibration isolation and sound dampening due to their low natural frequency. This makes them particularly effective in achieving superior shock absorption, ensuring the safety and stability of equipment bases and control systems. As a result, convoluted air bags are widely implemented in machinery such as vibrating screens for isolation and in luxury automotive seating systems for enhanced ride comfort.

Quick Reference Air Spring Chart

AIRSUSTECH Rubber Air Spring 2B6X2T Related Images

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

Advanced Production Equipment
