4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B4.5×2P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou,China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, , Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Manufacturer :
AIRSUSTECH
Product Number :
2B4.5×2P
Total Stroke :
80 MM
Maximum Diameter :
125 MM
Screw Type :
4×M6
Contitech :
FD 44-10 DI CR
Norgren :
PM/31042
Plate Type :
Aluminum
Description

4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate

Product Description

Product Number 2B4.5×2P Model Number W01-R58-4051
Weight 1.30 KG Warranty One Year
Material Rubber Plate Type Aluminum
Working Temperature -40℃+70℃ Condition 100% Brand New

Product Information

Maximum Diameter: 125 mm

Space Required: 140 mm

Minimum Height: 65 mm

Maximum Height: 145 mm

Working Stroke: 80 mm

Static Height: 100 mm

Bellows Weight: 1.30 kg

The Following Air Springs (Air Bellows) can be Replaced

Dunlop: 4 1/2''×2, 4 1/2'×2, 4 1/2×2

Dunlop: SP2441, SP 2441, SP 24 41

DUNLOP UK (PNEURIDE): PNP 305590107, PNP305590107

Continental Contitech: FD 44-10 DI CR

Continental Contitech: FD 4410 DI CR

Continental Contitech: FD 44 10 DI CR


Firestone Part Number: W01-R58-4051

Firestone Part Number: W01R584051

Firestone Part Number: W01 R58 4051


YS-AIR Air Spring: YS-115-2V

YS-AIR Air Spring: YS1152V

YS-AIR Air Spring: YS 115 2V


Norgren Style: PM/31042

Norgren Style: PM31042

Norgren Style: PM 31042

Other Kinds of Air Springs

2 3/4 X3 W01-R58-4081 DUNLOP SP 2910
4 1/2 X1 W01-R58-4050 DUNLOP SP 2334
4 1/2 X2 W01-R58-4076 DUNLOP SP 2895
6X1 W01-R58-4052 DUNLOP SP 1368
6X1 W01-R58-4078 DUNLOP SP 2913
6X2 W01-R58-4036 DUNLOP SP543
6X2 W01-R58-4053 DUNLOP SP 1482
6X3 W01-R58-4095 DUNLOP SP 2861
8X1 W01-R58-4054 DUNLOP SP 1637
8X2 W01-R58-4045 DUNLOP SP 253
8X3 W01-R58-4056 DUNLOP SP 2863
10X1 W01-R58-4057 DUNLOP SP 2623
10X2 W01-R58-4048 DUNLOP SP 1538
10X3 W01-R58-4059 DUNLOP SP 1539
12X1 W01-R58-4038 DUNLOP SP 1640
12X2 W01-R58-4044 DUNLOP SP 256NB
12X3 W01-R58-4046 DUNLOP 12X3

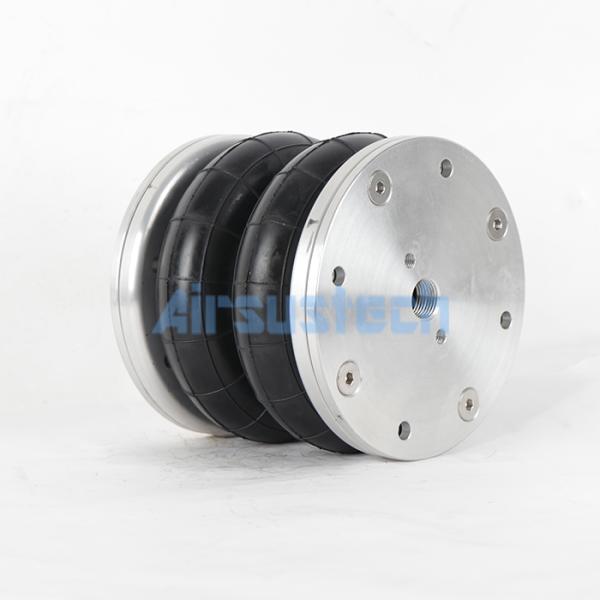

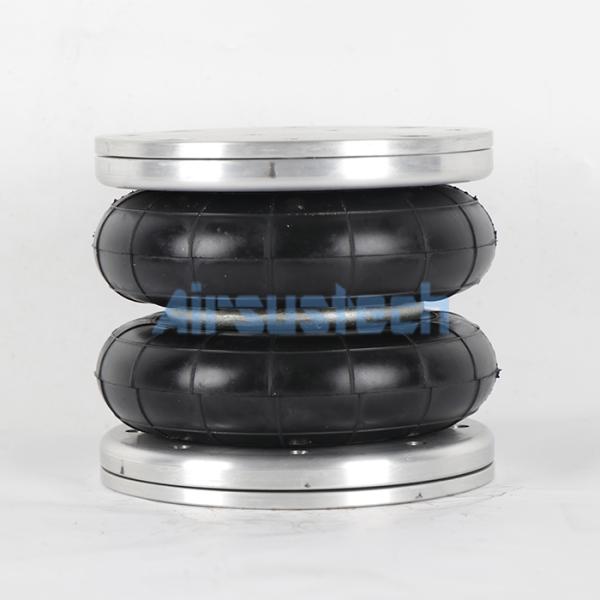

The Related Photos

4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate

Factory Workshop
4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate4 1/2×2 Dunlop Pneumatic Air Actuator SP2441 Dunlop Air Bag with Aluminum Plate
