Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B8X2T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Structure :
Double Convoluted
Gas Hole :
G1/2
Manufacturer Warranty :
1 Year
Color :
Black
PCD :
155.5 MM
Norgren :
M/31082
Pressure Ability :
0 Bar ... 8 Bar
Material :
Rubber+Steel
Description
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Quick Details
Model No. 2B8X2T Sample Available
HS Code 8708809000 Type of Goods Flange Plate Air Spring
Number of Ply Bellows 2 Compatibility Easy to Replace
OE Interchange
  • Dunlop Air Spring: 8''X2, 8'X2, 8X2, SP1490, SP 1490, PNP 305500112, PNP305500112
  • Firestone Air Spring: W01-R58-4055, W01 R58 4055, W01R584055, WO1-R58-4055, WO1 R58 4055, WO1R584055
  • Contitech Air Spring: FD 138-18 DS, FD 138-18 DS G1/2, FD 138-18 DS M10
  • Norgren Air Spring: M/31082, M31082, M 31082
  • Oria Air Spring: 8''X2, 8'X2, 8X2
  • Parker Air Spring: 9109011
2B8X2T Technical Parameters
Cover Plate
Top Cover Plate Width 183.5 mm
PCD 155.5 mm
Bottom Steel Plate O.D. 183.55 mm
PCD 155.5 mm
Air Port Inlet/Air Inlet
Air Fitting G1/2
Bolts Type
Screws Nut Tooth 4-M10
Screws Height 25 mm
Rubber Bellows Part
Natural Diameter 205 mm
Design Height 160 mm
Bellows Type double convoluted
Key Features & Benefits
  • Effective Isolation: Provides reliable shock absorption and vibration dampening for industrial equipment.
  • Wide Application Range: Suitable for use in various settings requiring pneumatic bellows suspension.
  • Environmentally Versatile: Operates effectively in temperatures from -40°C to +70°C.
  • Space-Saving Design: Low-profile construction makes it ideal for installations with limited space.
  • Peace of Mind: Backed by a one-year warranty for long-term reliability.
AIRSUSTECH Can Replace These Dunlop Pneumatic Air Actuators
AIRSUSTECH Dunlop Pneuride Dunlop Springride Dunlop
1B4.5X1P 4 1/2"X1 SP2334 PNP 30559 01 06
2B4.5X2P 4 1/2"X2 SP2441 PNP 30559 01 07
3B4.5X3P 4 1/2"X3 SP2895 PNP 30559 01 08
1B6X1P 6"X1 (Al) SP2913 A 3 1330 01 01
2B6X2P 6"X2 (Al) SP2917 A 3 1330 02 01
3B6X3P 6"X3 (Al) SP2923 A 3 1330 03 01
1B6X1T 6" x 1 (Steel) SP1536 PNP 30551 01 13
2B6X2T 6"X2 (Steel) SP1482 PNP 30551 01 11
3B6X3T 6"X3 (Steel) SP2861 PNP 30551 01 18
1B8X1T 8"X1 SP1537 PNP 30550 01 10
2B8X2T 8"X2 SP1490 PNP 30550 01 12
3B8X3T 8"X3 SP2863 PNP 30550 01 34
1B10X1T 10"X1 SP2523 A 1 1127 00 07
2B10X2T 10"X2 SP1538 PNP 30545 01 12
3B10X3T 10"X3 SP1539 PNP 30545 01 10
1B12X1T 12"X1 SP1540 PNP 30552 01 20
2B12X2T 12"X2 SP1541 PNP 30552 01 18
3B12X3T 12"X3 SP1542 PNP 30552 01 78
1B14.5X1T 14" 1/2X1 SP1543 PNP 30414 01 19
2B14.5X3T 14" 1/2X2 SP1556 PNP 30414 01 17
3B14.5X3T 14" 1/2X3 SP1558 PNP 30414 01 42
1B16X1T 16"X1 - -

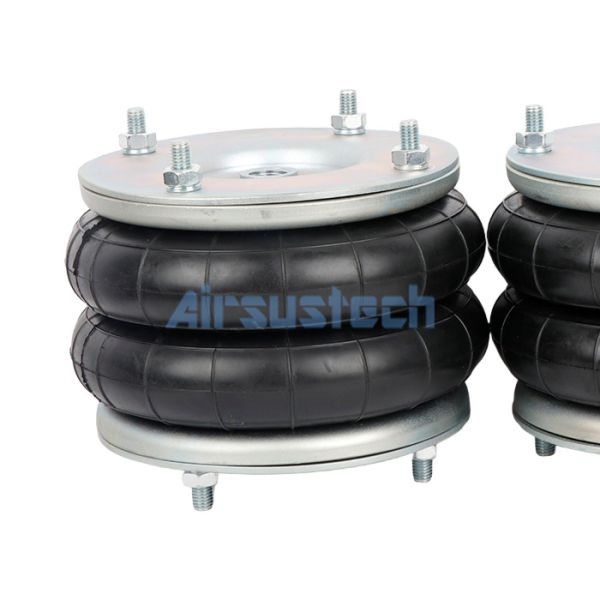

2B8X2T AIRSUSTECH Flange Rubber Air Spring Photo
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Technicians Measure the Dimensions of AIRSUSTECH Air Springs
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
Advanced Production Equipment
Dunlop PNP305500112 Flange Plate Air Spring 8X2 Air Bellow with Design H. 160 MM
