Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B70-13
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Quality :
100% Tested
Cross Reference :
Torpress 23 B 202665
Number of Ply Bellows :
2 / Two
After-sales Service :
One Year
Ships From :
Any Port in China
Compatibility :
Easy to Replace
Sample :
Availiable
Center Distance :
118 MM
Description
AIRSUSTECH 2B70-13 Double Convoluted Air Spring
Refer Model 23 B Torpress 202665
OE Interchange
Torpress 23 B 202665
Torpress 23 B
Torpress Model 23 B
Product Technical Parameters
[1] Dimensions - Static Height: 153 mm
[2] Dimensions - Center Distance: 118 mm
[3] Dimensions - Flange Ring Diameter: 134 mm
[4] Dimensions - Natural Diameter: 146 mm
[5] Flange Connection: 6-M8X1.25
[6] Bellows Type: double convoluted
[7] Material: rubber and steel
[8] Cross Torpress 23 B 202665
Installation and Usage Guidelines
  • The piston rod of the rubber airbag should be installed downward and not inverted, which can reduce friction and ensure the best damping quality and buffering performance.
  • The judgment of the fulcrum installation position is the guarantee for the normal operation of the rubber airbag. The rubber airbag must be installed correctly, that is, it should be placed on the center line of the structure when closed, otherwise the rubber airbag will often open the door automatically.
  • The rubber airbag should not be affected by bending force or lateral force during work, and it should not be used as a guardrail.
  • In order to ensure the reliability of the seal, the surface of the piston rod must not be damaged. It is strictly forbidden to apply paint and chemicals on the piston rod, and it is not allowed to install the rubber airbag in the specified position. Position before spraying and painting.
  • Rubber airbags are high-pressure products. It is strictly forbidden to analyze, bake, or crush them.
  • The piston rod of the rubber airbag is strictly prohibited from turning to the left. If the joint direction needs to be adjusted, it can only be turned to the right.
  • Ambient temperature: -40℃...+70℃.
  • The connection point installation should be flexible and free of jamming.
AIRSUSTECH Replacement Compatibility
Model Standard Code Maximum OD (mm) Minimum Height (mm) Maximum Height (mm) Design Height (mm)
1693029153469170
131940471655011085
1109311321051151101
885402104514595
888202104514595
1169302723146152100
199401632551151127
9401432543143127
23B20266516565205150
268418122085245165
208660025580265170
2459374027085310185
229409132588288183
8854432580280175
21 BR8945738080290180
21 A BR9730043585315190
21B BR9215444085385200
28 BR9252744580310185
299305657090330195
319316657080320185
9521070085700300
32520333240080500250
32292615133408265450
89413310125400257
32188110380125400257

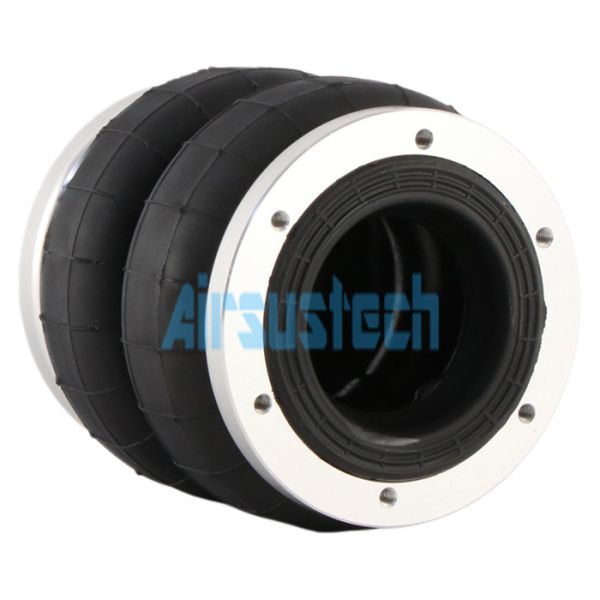

2B70-13 Air Spring Physical Photo
AIRSUSTECH 2B70-13 Double Convoluted Air Spring Refer Model 23 B Torpress 202665
AIRSUSTECH Sample Room
AIRSUSTECH 2B70-13 Double Convoluted Air Spring Refer Model 23 B Torpress 202665
Advanced Production Equipment
AIRSUSTECH 2B70-13 Double Convoluted Air Spring Refer Model 23 B Torpress 202665
