Specifications
Brand Name :
AIRSUSTECH
Model Number :
Torpress 110
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Steel+Rubber
Warranty :
One Year
Compatibility :
Easy to Replace
Durability :
High
PCD :
138 MM
Function :
Reduce Shock
Usage :
Industrial Machines or Others
Description

Flange Rubber Air Spring Pirelli Torpress 88820 M8 Mounting Hole Industrial Air Bag

The Features of 1H5083 Air Spring

  • This single flange connection air spring is manufactured from high-quality natural rubber with steel cover plates. It features a design height of 120 mm and natural diameter of 180 mm.
  • For the 1H5083 model, the flange ring diameter is 155 mm, and the center-to-center distance is 138 mm.
  • The industrial flange-type rubber air spring operates via gas filling. Its threaded hole is M8X1.25.

Cross References

Pirelli Torpress 88820
Torpress 110

Torpress 110 88820

The Advantages of AIRSUSTECH 1H5083 Air Spring

  1. AIRSUSTECH manufactures efficient, strong, and premium 1H5083 air springs for all your vehicle steering needs. Not only is it efficient in performance, it is also extremely durable, providing long-lasting quality without compromising its effectiveness.
  2. These 1H5083 air bags are made of high-quality materials, including metal, which ensures maximum stability, durability, and sustainability for demanding use, and is also equipped with the latest features for consistent, optimal performance. These products are certified and tested by regulatory boards to ensure safe use and superior quality.
  3. When purchasing our products, you can also enjoy a host of after-sales services, including low-cost maintenance, installation guidance, and more. The AIRSUSTECH air springs here are environmentally friendly and have a longer service life.

We Have Other Air Spring Remplacement Cross Torpess

Model Standard Code High-temp Code Maximum OD (mm) Minimum Height (mm) Maximum Height (mm) Design Height (mm)
16 93029 93086 153 46 91 70
131 94047 - 165 50 110 85
110 93113 93114 210 51 151 101
88540 93079 210 45 145 95
88820 89023 210 45 145 95
116 93027 - 231 46 152 100
19 94016 95015 325 51 151 127
94014 - 325 43 143 127
23B 202665 - 165 65 205 150
26 84181 89422 220 85 245 165
20 86600 88538 255 80 265 170
245 93740 202344 270 85 310 185
22 94091 - 325 88 288 183
88544 89425 325 80 280 175
21 BR 89457 - 380 80 290 180
21 A BR 97300 - 435 85 315 190
21B BR 92154 - 440 85 385 200
28 BR 92527 445 80 310 185
29 93056 - 570 90 330 195
31 93166 - 570 80 320 185
95210 - 700 85 700 300
325 203332 - 400 80 500 250
322 92615 310 133 408 265 450
89413 - 310 125 400 257
321 88110 - 380 125 400 257

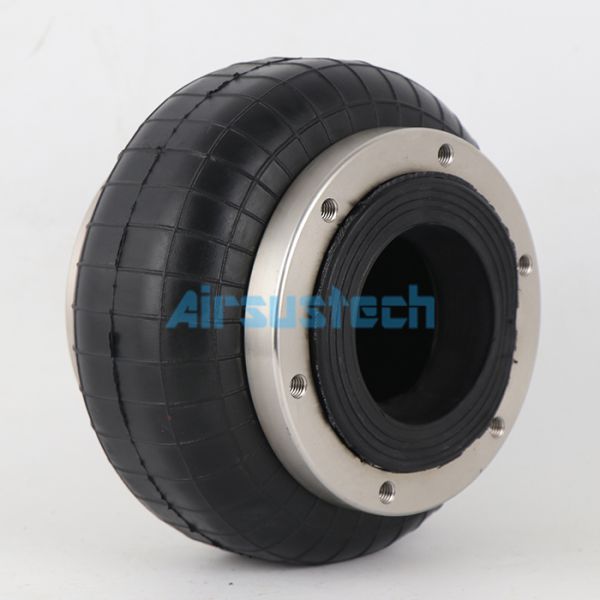

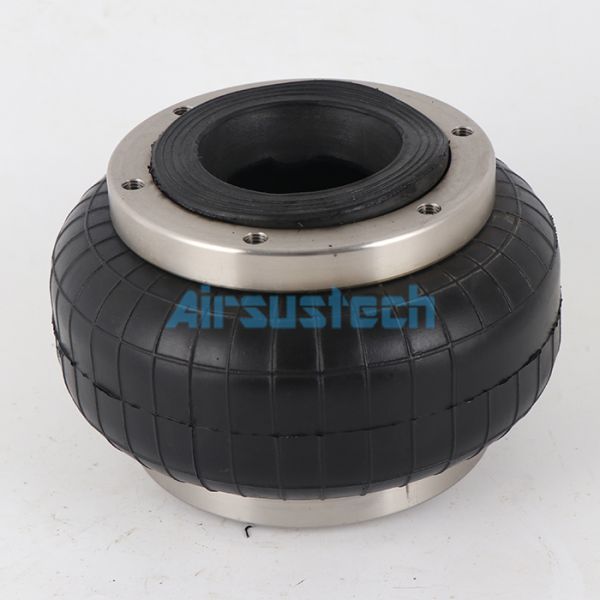

Flange-type Air Spring AIRSUSTECH 1H5083 Real Pictures

Flange Rubber Air Spring Pirelli Torpress 88820 M8 Mounting Hole Industrial Air BagFlange Rubber Air Spring Pirelli Torpress 88820 M8 Mounting Hole Industrial Air Bag

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

Flange Rubber Air Spring Pirelli Torpress 88820 M8 Mounting Hole Industrial Air Bag

Advanced Production Equipment

Flange Rubber Air Spring Pirelli Torpress 88820 M8 Mounting Hole Industrial Air Bag
