Specifications
Brand Name :
AIRSUSTECH
Model Number :
2H160166
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Production Process :
Vulcanization
Usage :
Industrial
Material :
Rubber And Aluminum
Screw (Nut) :
M8
Shape :
Convoluted
Part No. :
Torpress 26 84181
Temperature Range :
-40℃+70℃
Quality :
100% Tested
Description
135MM Center Distance Torpress 26 84181 Industrial Flange Air Spring 6XM10 Holes
Product Details
Minimum height: 82 mm
Max. usable height: 201 mm
Center distance diameter: 135 mm
Flange ring diameter: 160 mm
Design height: 166 mm
Screw (nut) type: 6XM10
Max. outer diameter of rubber bellows: 175 mm
Working stroke: 108 mm

AIRSUSTECH 2H160166 air spring cross Torpress 26 84181

Product Technical Data Sheet
Load (kg) Installation Height Inflation Pressure 0.2 MPa 0.3 MPa 0.4 MPa 0.5 MPa 0.6 MPa 0.7 MPa 0.8 MPa Volume at 0.7MPa (dm3)
82 (mm) 364 538 713 892 1071 1251 1430 0.86
116 (mm) 262 397 537 674 815 950 1095 1.27
150 (mm) 190 290 391 490 597 700 802 1.64
166 (mm) 149 237 325 413 502 593 684 1.77
190 (mm) 76 128 180 233 287 342 398 1.92
201 (mm) 23 55 83 111 148 183 220 1.95
Stiffness and Frequency
at Design Height		 Vertical Stiffness (Kg/cm) 39 54 72 89 107 125 138
Inherent Frequency Hz 2.56 2.40 2.35 2.33 2.31 2.30 2.25
cpm 154 144 141 140 139 138 135
Applications of AIRSUSTECH Air Springs
  1. Shock Isolation: Air springs are commonly used to isolate impact forces. In sawmills, air springs are frequently used to absorb the impact of falling logs and to lift logs onto conveyor belts. Because air springs possess both the properties of a spring and rubber, they are best suited for such applications. Without such shock-absorbing devices, equipment and surrounding structures would prematurely fatigue and fail due to the frequent impacts from falling logs.
  2. Protective Covers and Flexible Connectors: Air spring bladders with flanged structures can be used as protective covers or flexible connectors. Due to their flexible structure and ability to allow eccentric and torsional movements, air springs are the best solution for protective covers and flexible connectors. An internal sleeve is required to protect the inner surface of the air spring from the influence of flowing materials.
  3. Vacuum Pumps: A certain degree of vacuum can be established by driving air springs. Air springs can withstand small vacuum levels without damaging the bladder. The maximum permissible vacuum level depends on the bladder size, height, and whether it is double-layered or four-layered. Generally, it is best to use only single-turn curved surface air springs in this type of application.
AIRSUSTECH Other Double Flange-type Air Springs
Product Number Nonimal Diameter (mm) 0.7Mpa Max.Diameter Stroke Range Max. Outer O.D. (mm) Center Distance (mm) Bolts Quantity
Min. Height Max. Height
2H130142 80 150 72 162 140 112 6
2H156130 118 170 70 146 135 115 6
2H160166 100 175 82 190 160 135 6
2H168132 120 185 72 151 180 152 8
2H200142 150 220 78 162 180 152 8
2H220200 148 250 90 229 203 175 8
2H230214 150 255 88 246 223 185 8
2H235152 180 250 80 174 203 175 8
2H235210 180 250 80 245 203 175 8
2H250180 185 270 84 206 183 145 8
2H252163 192 275 82 238 213 175 8
2H260230 170 290 90 263 203 175 8
2H280214 200 305 88 246 275 237 12
2H290265 205 320 90 303 250 220 12
2H300170 240 320 85 195 260 226 12
2H310214 230 330 88 245 300 263 12
2H330214 250 355 88 246 322 284 14
2H330254 230 355 88 290 300 263 12
2H350255 250 380 90 295 309 271 14
2H360214 280 380 88 246 247 309 16
2H380221 300 405 90 255 358 320 16
2H400217 320 430 90 249 396 358 18
2H400255 300 430 90 295 358 320 16
2H430255 330 460 90 295 398 360 18
2H480217 400 510 88 249 476 438 20
2H520217 440 550 90 249 508 470 24
2H580214 500 600 88 246 568 530 24
2H630262 530 660 90 300 610 560 30
2H680262 580 710 90 302 642 605 32

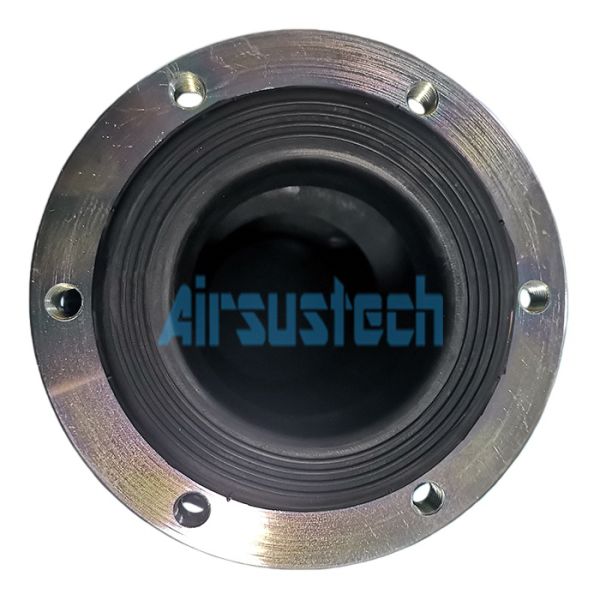

Industrial Flange-type Air Spring 2H160166 Image

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

Advanced Production Equipment
