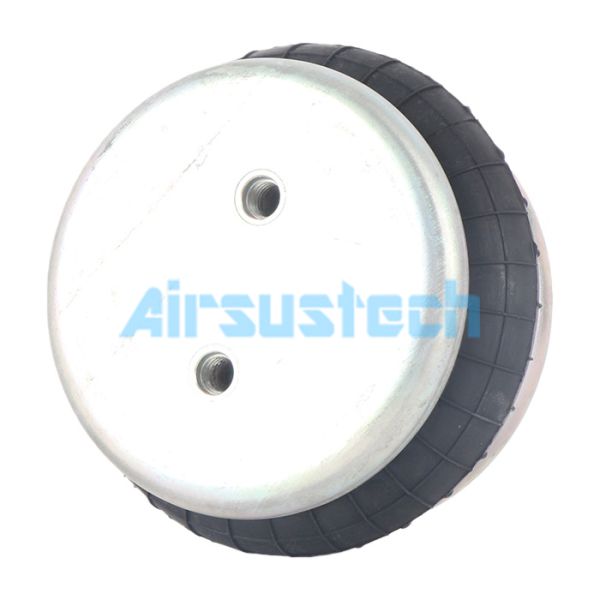

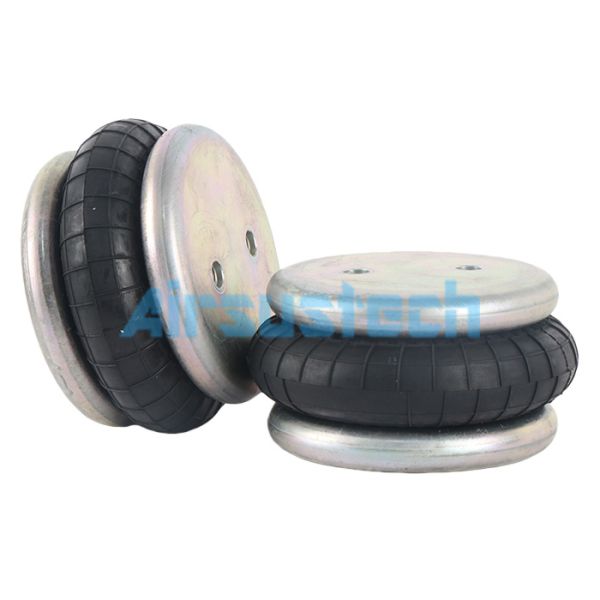

Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B130070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Steel
Maintenance :
Low / Minimal
HS Code :
870880
Compatibility :
Easy to Replace
Function :
For Replace / Repair
Contitech :
FS 50-5
Pressure Ability :
0 Bar to 8 Bar
Quality :
100% Inspected
Description
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring

Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring

Product Specifications
Minimum Height 50 mm
Max. Extended Height 100 mm
Air Inlet ZG1/4''
Mounting Hole M10
Cover Plate Width 114 mm
C-to-C Distance Diameter 44.5 mm
Design Height 70 mm
Maximum Outer Diameter 145 mm
Compatible Replacement Parts
  • Replaces Torpress 16 93029
  • Replaces Oria M-10, M10, M 10
  • Replaces Contitech FS 50-5, FS 505, FS 50 5
  • Replaces Firestone W01-M58-6140 / WO1-M58-6140 variants
  • Replaces Firestone W01-358-0017 / WO1-358-0017 variants
  • Replaces Firestone W01-358-0010 / WO1-358-0010 variants
  • Replaces Firestone W01-358-7001 / WO1-358-7001 variants
  • Replaces 130070J-1
Industrial Applications of Pneumatic Actuators

Air springs serve essential functions in mechanical systems including vibration damping and absorption, motion control, and pressure maintenance. Compared to pneumatic cylinders or similar elastic elements, pneumatic actuators offer simpler structure, reliable operation, and eliminate complex parameter calculations. They are leak-free, easy to maintain, and provide long service life.

Key Application Scenarios

Stamping & Buffering Applications
In automotive stamping processes for body panels and doors, effective buffering is crucial. The buffer must endure significant periodic shock loads, with performance directly impacting machining precision. Using industrial bellows as buffers reduces costs while ensuring high accuracy.

Material Handling & Vibration Isolation
In material conveying systems, vibrating bins mix materials evenly or facilitate flow. This vibration can cause fatigue or damage to bin supports, making isolation necessary. Air suspension components provide flexibility - adjusting inflation levels meets different working loads and height requirements without compromising vibration isolation.

AIRSUSTECH Single Convoluted Air Spring Data
Product Number Nominal Diameter (mm) 0.7Mpa Max. Diameter Stroke Range
1B130070 100 142 53-83
1B150086 106 160 55-100
1B188130 120 210 55-149
1B215128 125 230 55-145
1B235118 180 255 60-136
1B235150 180 255 65-172
1B260135 170 280 55-155
1B300110 240 320 55-130
1B300130 240 320 60-150
1B320128 230 350 65-145
1B360140 280 380 65-160
1B380150 300 405 65-175
Product Images
Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring Torpress 16 93029 Single Convoluted Air Suspension 1B130070 Crimped Plate Air Spring
