6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B6X1T
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Color :
Black
Warranty :
12 Months
PCD :
127 MM
Type of Goods :
Flange Plate Air Spring
Mounting Bolts :
4-M10
Cross :
Contitech FS 76-7 DS
Material :
Natural Rubber
Shipment :
By Sea, By Air, by DHL/Fedex/UPS
Description
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
Product Overview

6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2

OEM Original Manufacturer
Manufacturer OEM Number
Dunlop PNP 30551 01 13, PNP305510113, 6"X1, 6X1, 6'X1, SP1536
Contitech FS 76-7 DS, FS 76-7 DS G1/2, FS 76-7 DS M10, 70216
Norgren M/31061, M31061, M 31061
Parker 9109004
Oria 6''X1ST, 6'X1ST, 6X1ST
Firestone W01-R58-4052, W01R584052, W01 R58 4052, WO1-R58-4052, WO1R584052, WO1 R58 4052
Product Information
  • This single convoluted air spring is manufactured from high-quality natural rubber with steel cover plates
  • Design height: 77.5 mm
  • For the 1B6X1T model, cover plate diameter is 153.5 mm, center-to-center distance is 127 mm
  • Natural diameter of rubber bellows is 159 mm
  • Operates via gas filling with air connection G1/2 and screw nut size 4-M10
Key Advantages of AIRSUSTECH Flange Plate Air Springs
Reliable Performance and Low Maintenance

The seal-free design ensures simplified maintenance and long-term reliability, reducing downtime in demanding industrial applications.

Stable Operation Under Variable Pressure

These air springs maintain consistent performance even under fluctuating pressure conditions, providing dependable operation for diverse pneumatic systems.

Durable Construction for Harsh Environments

Built with robust materials, AIRSUSTECH flange plate air springs are engineered to withstand challenging industrial conditions, ensuring long-lasting functionality.

Versatile Industrial Applications

With flexible design, they are ideal for use in automation equipment, material handling systems, and precision machinery, delivering reliable linear motion and effective vibration control.

The combination of mechanical simplicity and functional versatility makes AIRSUSTECH flange plate air springs a practical solution for engineers seeking efficient pneumatic components for multiple industrial applications.

AIRSUSTECH 6 Inch Flange Plate Air Bags
1B6X1T 2B6X2T 3B6X3T
Center Distance: 127 mm
Cover Plate O.D.: 153.5 mm
Design Diameter: 159 mm
Static Height: 77.5 mm
Air Hole: G1/2
Bolts Type: 4-M10		 Center Distance: 127 mm
Cover Plate O.D.: 153.5 mm
Design Diameter: 159 mm
Static Height: 135.5 mm
Air Hole: G1/2
Bolts Type: 4-M10		 Center Distance: 127 mm
Cover Plate O.D.: 153.5 mm
Design Diameter: 159 mm
Static Height: 193.5 mm
Air Hole: G1/2
Bolts Type: 4-M10
Refer Numbers:
Firestone W01-R58-4052
Dunlop Pneuride 6"X1 (Steel)
Dunlop Springride SP1536
Dunlop PNP 30551 01 13
Contitech FS 76-7 DS
Contitech Order No. 70216
Norgren M/31061
Parker 9109004
Oria 6''X1ST		 Refer Numbers:
Firestone W01-R58-4053
Dunlop Pneuride 6''X2 (Steel)
Dunlop Springride SP1482
Contitech FD 76-14 DS
Norgren M/31062
Parker 9109001
Dunlop PNP 30551 01 11
Oria 6''X2		 Refer Numbers:
Firestone W01-R58-4095
Dunlop Pneuride 6''X3
Dunlop Springride SP2861
Contitech FT 76-20 DS
Norgren M/31063
Parker 9109007
Dunlop PNP 30551 01 18
Oria 6''X3

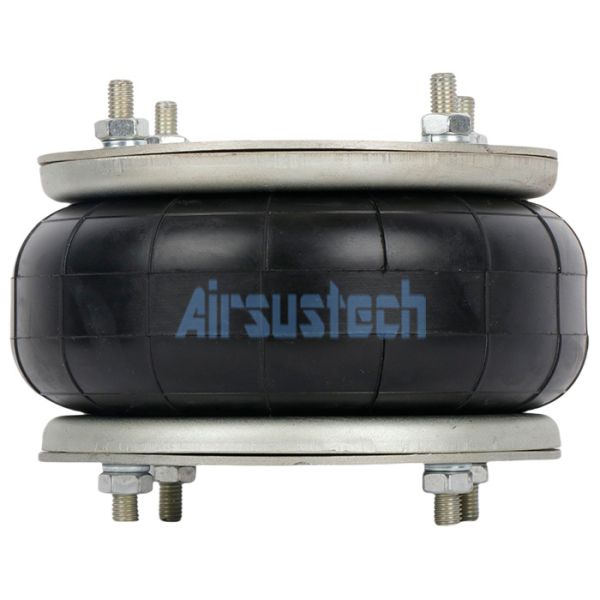

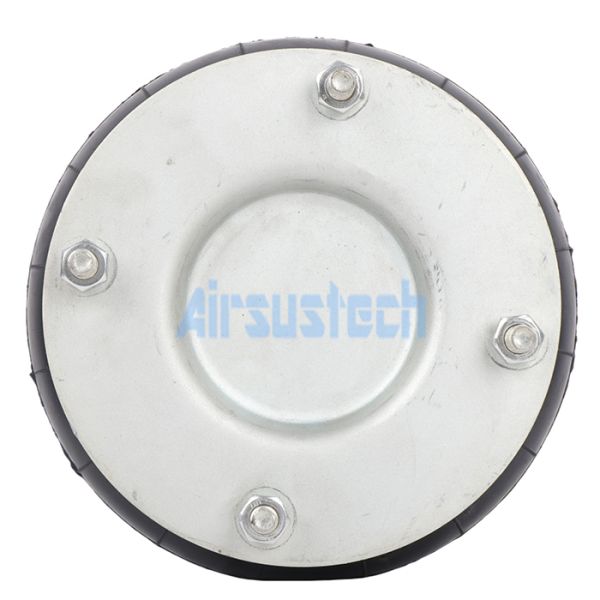

Physical Images of 1B6X1T Flange Plate Rubber Air Bellows
6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2 6'' Single Convolution Suspension Air Spring Dunlop PNP305510113 Air Port Size G1/2
