Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B7070PI
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Product Name :
Rubber Air Spring
Model NO. :
1B7070PI
Material :
High Quality Natural Rubber
Color :
Black
Cross References :
Contitech FS 70-7
Bellows Structure :
Single Convolution
Purpose :
For Replace / Repair
Advantage :
Serviceable
Description

Rubber Bellows Only FS 70-7 Contitech Industrial Single Rubber Air Spring 60512

Product Quick Details

Product OEM Number AIRSUSTECH 1B7070PI
Warranty One Year
Function Reduce Shock / Sound
Maintenance Low
Temperature Rating -40℃+70℃

AIRSUSTECH 1B7070PI Technical Data

[1] Static Height: 86 MM
[2] Inner Diameter: 80 MM
[3] Outer Diameter: 104 MM
[4] Natural Outer Width: 155 MM
[5] Material: Natural Rubber
[6] Bellows Type: Single Convolution

1B7070PI Refer Number

Contitech Part Number: FS 70-7

Contitech Part Number: FS 707

Contitech Part Number: FS 70 7
Contitech Order Number: 60512
Contitech With Plates, G1/4 Air Connection: 2681015000
Phoenix OEM Number: SP 1B 05
Bo-sch OEM Number: 8224 19002
Festo Part Number: EB-165-65

Festo Part Number: EB 165 65

Festo Part Number: EB16565
Weforma Part Number: WBE 200-E1

Weforma Part Number: WBE 200 E1

Weforma Part Number: WBE 200E1
Firestone Part Number: W01-358-0131

Firestone Part Number: W01 358 0131

Firestone Part Number: W013580131

AIRSUSTECH Other Rubber Air Bellows Part Number

AIRSUSTECH Description FIRESTONE CONTITECH
Style Number Style Number
1B5050 Rubber Bellow Only 16 W01-358-0010 62242 FS50-5 S VP
1B5050 Crimped,G1/4,Blind Nuts 16 W01-M58-6140 61388 FS50-5 CI G1/4
1B5050 Crimped,1/4NPT,Blind Nuts 16 W01-358-7001 75246 FS50-5 CI 1/4NPT
1B7070 Rubber Bellow Only 131 W01-358-0131 60512 FS70-7 CI S VP
1B7070 Crimped,1/4BSP,Blind Nuts 131 W01-M58-6155 2681015000 FS70-7 CI G1/4
1B7070 Crimped,1/4NPT,Blind Nuts 131 W01-358-7731 75240 FS70-7 CI 1/4NPT
1B10010 Rubber Bellow Only 110 W01-358-0100 63457 FS100-10 S VP
1B10010 Crimped,G1/4,Blind Nuts 110 W01-M58-6145 65745 FS100-10 CI G1/4
1B10010 Crimped,1/4NPT,Blind Nuts 110 W01-358-7451 65529 FS100-10 CI 1/4NPT
1B1209 Rubber Bellow Only 116 W01-358-0133 72994 FS120-9 S VP
1B1209 Crimped,1/4BSP,Blind Nuts 116 W01-M58-6166 61358 FS1209 CI G1/4
1B1209 Crimped,3/4BSP,Blind Nuts 116 W01-M58-6165 2681030000 FS1209 CI G3/4
1B1209 Crimped,1/4NPT,Blind Nuts 116 W01-358-7564 75360 FS120-9 CI 1/4NPT
1B120-9 Crimped,3/4NPT,Blind Nuts 116 W01-358-7561 75349 FS120-9 CI 3/4NPT
1B20010 Rubber Bellow Only 72850 FS200-10 S VP
1B33011 Rubber Bellow Only 19 W01-358-0134 72539 FS330-11 S VP
1B33011 Crimped,1/4BSP,Blind Nuts 19 W01-M58-6008 60424 FS330-11 CI G1/4
1B33011 Crimped,3/4BSP,Blind Nuts 19 W01-M58-6011 62743 FS330-11 CI G3/4
1B33011 Crimped,3/4NPT,Blind Nuts 19 W01-358-7011 74097

FS330-11 CI 3/4NPT

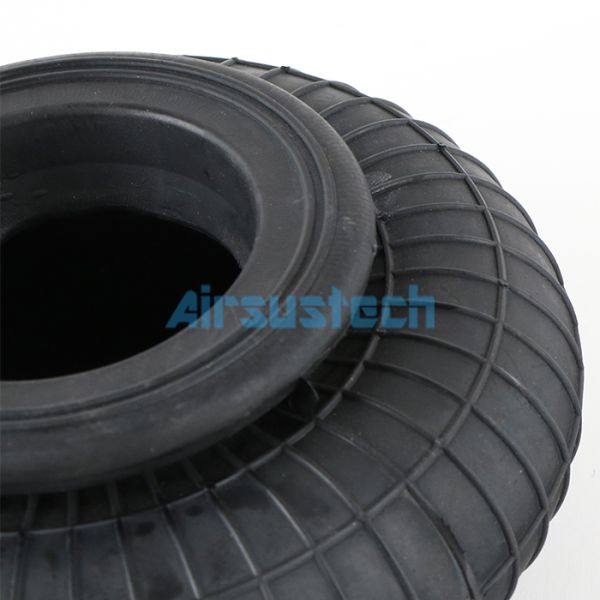

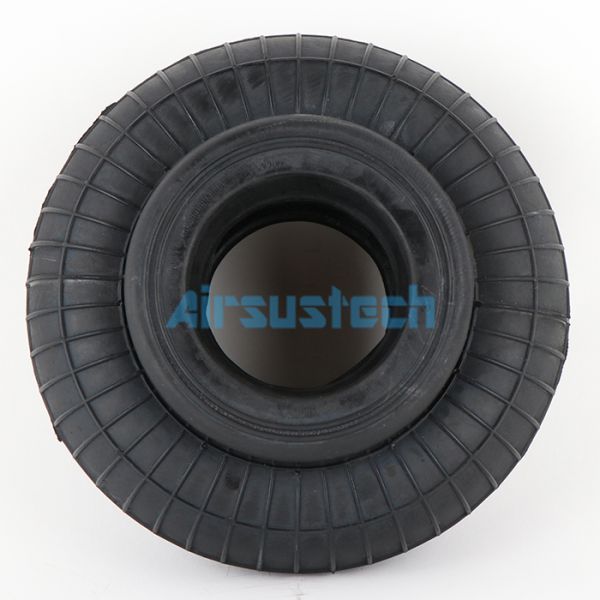

AIRSUSTECH 1B7070PI Air Bellows Only Detailed Pictures

Rubber Bellows Only FS 70-7 Contitech Industrial Single Rubber Air Spring 60512Rubber Bellows Only FS 70-7 Contitech Industrial Single Rubber Air Spring 60512

Technicians Measure the Dimensions of AIRSUSTECH Air Springs

Rubber Bellows Only FS 70-7 Contitech Industrial Single Rubber Air Spring 60512

Advanced Production Equipment

Rubber Bellows Only FS 70-7 Contitech Industrial Single Rubber Air Spring 60512
