6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B6×1P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Steel
Stroke :
55 MM
Mounting Hole :
M8
Compatibility :
100% Accuracy of Fit
Rubber Structure :
Single Industrial Air Suspension
Max Inflation Pressure :
0.8 MPa
Original Number :
Dunlop Pneuride 6''×1
Description

6'' Size Pneumatic Air Actuator Contitech FS 76-7 DI Air Spring Easy Installation

AIRSUSTECH 1B6×1P Details

[1] Minimum Usable Height: 55 mm

[2] Max. Usable Height: 110 mm

[3] The Diameter of Cover Plate: 152.5 mm

[4] The Distance Between Two Furthest Holes: 127 mm

[5] Maximum Outer Width of Rubber Bellows: 175 mm

[6] Space Required: 190 mm

[7] Mounting Hole: 4×M8

1B6×1P Air Actuator Refer Numbers


Fits Contitech FS 76-7 DI

Fits Contitech FS 767 DI

Fits Contitech FS 76 7 DI
Fits Norgren PM/31061

Fits Norgren PM31061

Fits Norgren PM 31061
Fits Parker 9109004A

Fits Firestone W01-R58-4078

Fits Firestone W01R584078

Fits Firestone W01 R58 4078
Fits Dunlop Pneuride 6''×1

Fits Dunlop Pneuride 6'×1

Fits Dunlop Pneuride 6×1
Fits Dunlop Springride SP2913

Air Bellows Characteristics and Applications

  1. Air bellows serve as the optimal solution for applications requiring short-stroke, high-thrust single-acting actuators. Constructed from fabric-reinforced synthetic rubber, they are available in one, two, or three convolutions to accommodate specific stroke and model requirements. Unlike conventional pneumatic cylinders, air bellows incorporate no reciprocating metal parts, delivering virtually frictionless thrust and enhanced operational smoothness.
  2. All models operate on a single-acting principle. The return stroke is partially achieved through the natural spring action of the bellows but is primarily driven by the load itself. This simplicity in design ensures an exceptionally long, virtually maintenance-free service life, even under demanding operating conditions.
  3. Air bellows are particularly suitable for high-frequency vibration applications, such as device feeders, where their robust construction and reliable performance ensure consistent operation. Their adaptability and durability make them ideal for industrial environments where precision and longevity are critical.

6'' Size Air Bellows We Have

(1) AIRSUSTECH NO. 1B6×1P

Alternative Items:

Firestone W01-R58-4078
Dunlop Pneuride 6''×1
Dunlop Springride SP2913
Contitech FS 76-7 DI
Norgren PM/31061
Parker 9109004A

Maximum Diameter: 162 mm

Min. Height: 50 mm

Max. Height: 110 mm

Static Height: 80 mm

Center Distance Diameter: 127 mm

Cover Plate Width: 152.4 mm

Gas Hole: 1/2''BSP

Mounting Hole: M8

(2) AIRSUSTECH NO. 2B6×2P

Cross Code:

Norgren PM/31062
Firestone W01-R58-4070
Dunlop Pneuride 6"x2 (Al)
Dunlop Springride SP2917
Contitech FD 76-14 DI
Parker 9109001A

Maximum Diameter: 168 mm

Min. Height: 75 mm

Max. Height: 215 mm

Static Height: 140 mm

Center Distance Diameter: 127 mm

Cover Plate Width: 152.4 mm

Gas Hole: 1/2''BSP

Mounting Hole: M8

(3) AIRSUSTECH NO. 3B6×3P

Cross References:

Dunlop Pneuride: 6''×3 (Aluminum)

Dunlop Springride SP2923

Contitech FT 76-20 DI

Norgren PM/31063

Parker 9109007A

Maximum Diameter: 168 mm

Min. Height: 109 mm

Max. Height: 262 mm

Static Height: 153 mm

Center Distance Diameter: 127 mm

Cover Plate Width: 152.4 mm

Gas Hole: 1/2''BSP

Mounting Hole: M8

(4) AIRSUSTECH NO. 1B6×1T

Other OEM Numbers:

Firestone W01-R58-4052
Dunlop Pneuride 6"x1 (Steel)
Dunlop Springride SP1536
Contitech FS 76-7 DS
Norgren M/31061
Parker 9109004

Maximum Diameter: 168 mm

Min. Height: 45 mm

Max. Height: 90 mm

Static Height: 80 mm

Center Distance Diameter: 127 mm

Cover Plate Width: 153 mm

Gas Hole: 1/2''BSP

Mounting Hole: M10

(5) AIRSUSTECH NO. 2B6×2T

Part Interchanges:

Firestone W01-R58-4053
Dunlop Pneuride 6''×2 (Steel)
Dunlop Springride SP1482
Contitech FD 76-14 DS
Norgren M/31062
Parker 9109001

Maximum Diameter: 168 mm

Min. Height: 73 mm

Max. Height: 170 mm

Static Height: 97 mm

Center Distance Diameter: 127 mm

Cover Plate Width: 153 mm

Gas Hole: 1/2''BSP

Mounting Hole: M10

(6) AIRSUSTECH NO. 3B6×3T

OEM Original Equipment:

Firestone W01-R58-4095
Dunlop Pneuride 6''×3
Dunlop Springride SP2861
Contitech FT 76-20 DS
Norgren M/31063
Parker 9109007

Maximum Diameter: 168 mm

Min. Height: 105 mm

Max. Height: 255 mm

Static Height: 180 mm

Center Distance Diameter: 127 mm

Cover Plate Width: 153 mm

Gas Hole: 1/2''BSP

Mounting Hole: M10

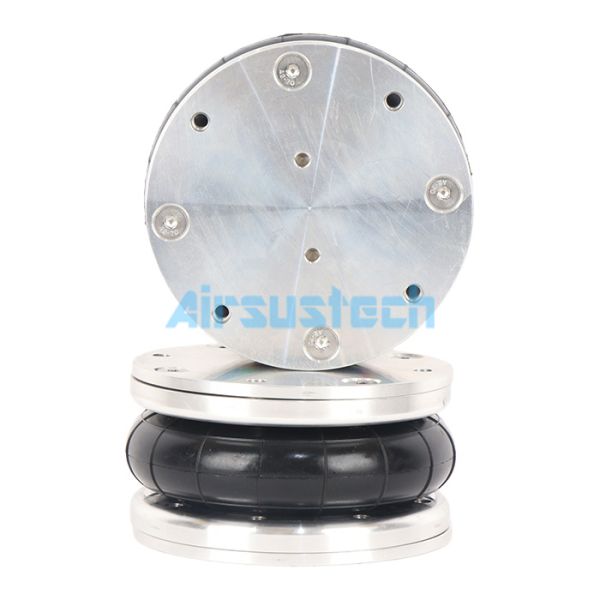

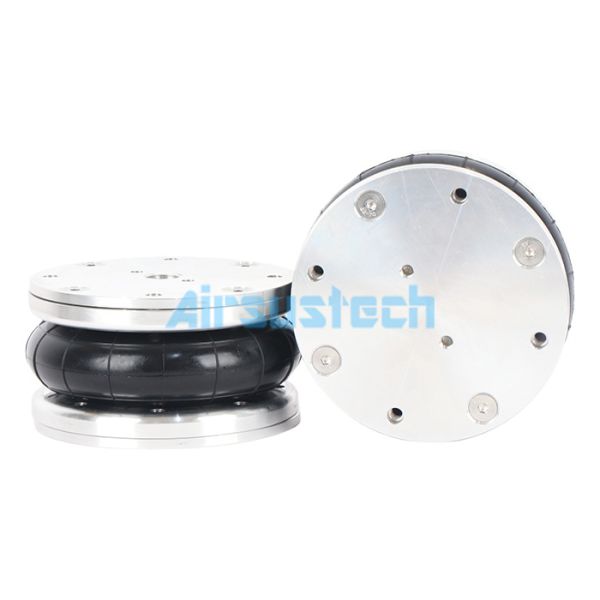

1B6×1P Single Convoluted Air Bellows Real Pictures
