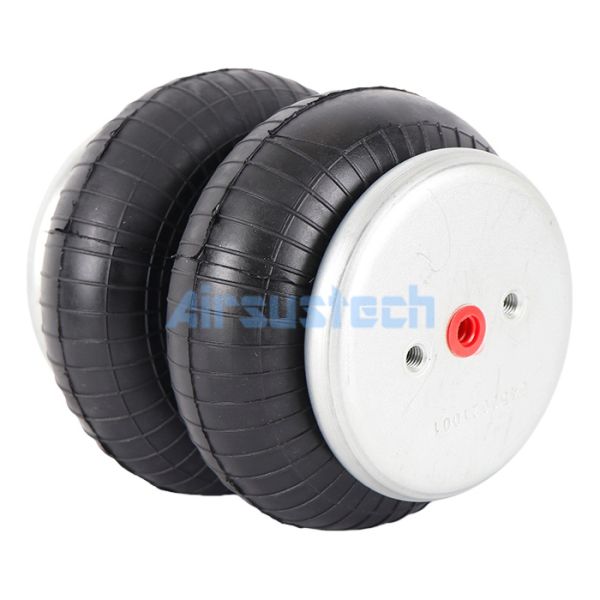

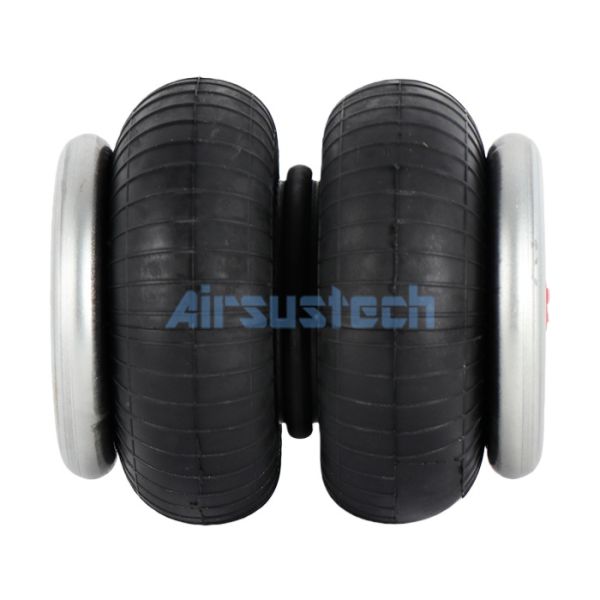

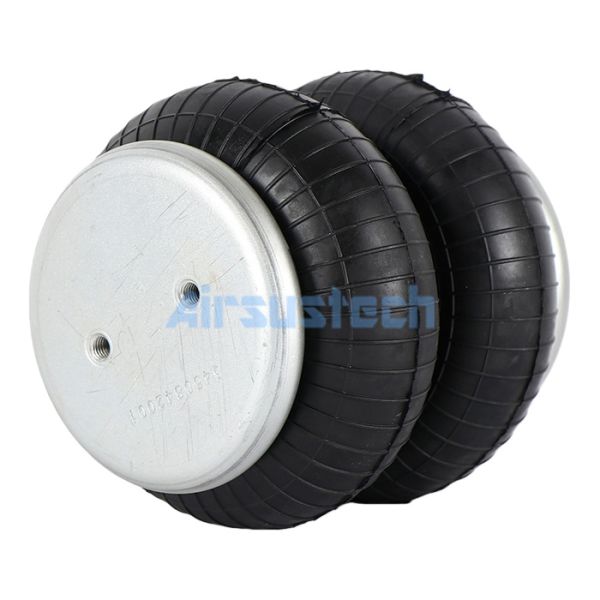

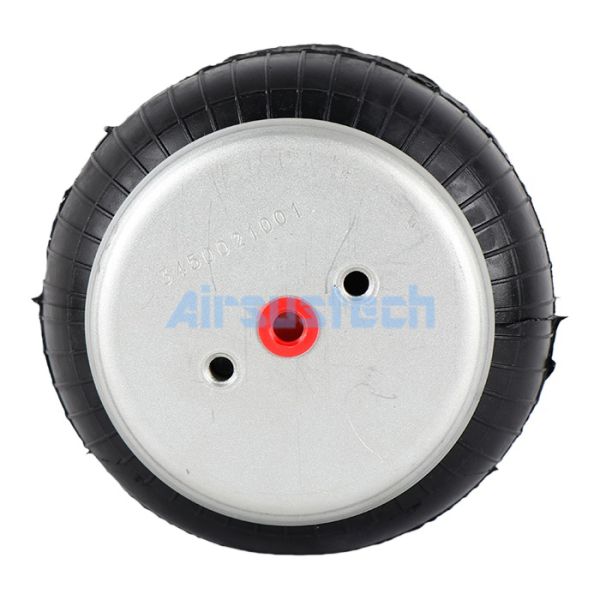

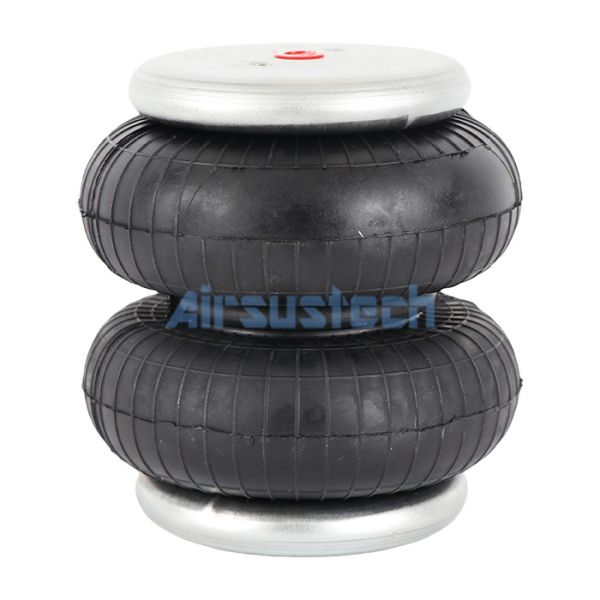

FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B7070
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Static Height :
162 MM
Air Spring Type :
Double Convolution
Mounting Hole :
M8×1.25
Max Inflation Pressure :
0.8 MPa
Fitment Type :
Direct Replacement
Function :
Reduce Shock / Shock Absorber
Vibration Frequency :
2.7 Hz
Keywords :
Industrial Air Spring
Description

FD 70-13 Contitech Industrial Lifting Air Bag Pneumatic Bellows Actuator 2682015000

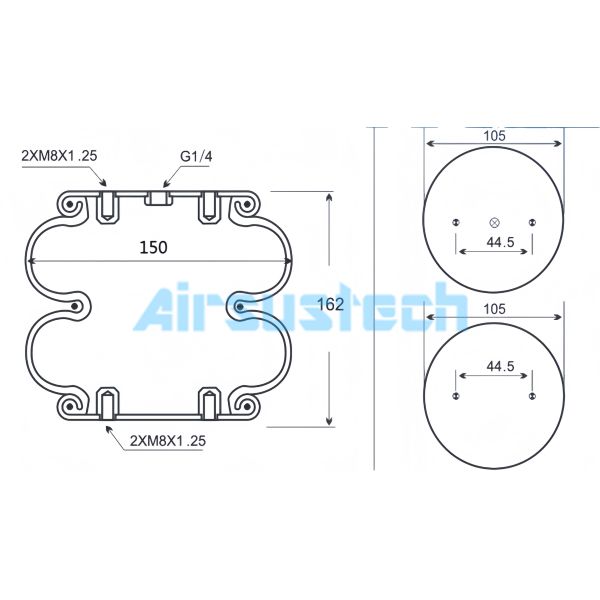

The Specifications of ContiTech FD 70-13

Operating Temperature: -40℃+70℃
Working Pressure: 0 bar... 8 bar
Port Size: G1/4
Maximum Diameter: 165 mm
Number of Convolutions: 2
Working Stroke: 128 mm
Operation: air fitting
Materials - Body: natural rubber and steel plate
Dimensions - Min. Usable Height: 72 mm
Dimensions - Max. Usable Height: 200 mm

Dimensions - Center Distance: 44.5 mm

Dimensions - Plate Diameter: 108 mm

Mounting Type: 2×M8

Cross References

Contitech FD 70-13 Contitech FD 7013
Contitech FD 70-13 M8 Contitech FD 70-13 G1/4
Contitech 2682 015 000 Contitech 2682015000
Contitech Bellows No. 60513 Festo EB-165-125
Festo EB165125 Festo EB 165 125
Festo 36494 Festo EB-165-125 M8 G1/4

Can Industrial Double Convoluted Air Springs Be Used in Printing Presses?

Of Course! Industrial double convoluted air springs can indeed be used in printing presses, and can effectively improve the stability of printing equipment and print quality.

Challenge: Vibration interference

Solution: Utilizing the compressibility of air, it provides excellent cushioning and vibration reduction, isolating vibration transmission.

Pro: Improve print quality, reduce dot blurring and misregistration; protect precision mechanical structures.

Challenge: Load changes

Solution: By adjusting the internal air pressure, the stiffness and support height can be flexibly adjusted to adapt to different loads and maintain the equipment level.

Pro: Improved production adaptability, rapid job changeover, and guaranteed stability under different working conditions; higher level of automation.

Challenge: Impact and wear

Solution: The hyperbolic surface structure and flexible properties can efficiently absorb impact energy and ensure smooth start-stop.

Pro: Extend equipment lifespan, reduce wear and tear on mechanical parts, and decrease maintenance costs and downtime.

We Have Other Rubber Air Bags Cross ContiTech

Single Convoluted Double Convoluted Triple Convoluted
FS 40-6 CI FD 40-10 CI FT 330-29 CI
FS 50-5 CI FD 70-13 CI FT 430-32 CI
FS 70-7 CI FD 110-15 CI FT 530-32 CI
FS 100-10 CI FD 120-17 CI FT 530-35 CI
FS 120-10 CI FD 120-20 CI FT 960-34 CI
FS 120-12 CI FD 200-19 CI FT 1330-35 CI
FS 200-10 CI FD 200-22 CI
FS 310-12 CI FD 200-25 CI
FS 330-11 CI FD 330-22 CI
FS 330-14 CI FD 330-30 CI
FS 530-11 CI FD 530-22 CI
FS 530-14 CI FD 530-35 CI
FS 960-12 CI FD 960-22 CI
FS 1330-11 CI FD 1330-25 CI

The Related Images of 2B7070 Cross FD 70-13 Continental Air Bellows
