Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B4.5X1P
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
Supply Ability :
1000 PCS/Week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Condition :
100% New
Supplier :
AIRSUSTECH
PCD :
93 MM
Static Height :
65 MM
Cross :
Contitech FS 44-5 DI
Number of Ply Bellows :
1
Plate Material :
Aluminum
Factory Warranty :
One Year
Full Stroke :
40 MM
Space Required :
140 MM
Description
Aluminum Cover Plate 4 1/2''X1 Dunlop Springride SP2334 Air Actuator with 3PCS M6
Product Overview

High-quality aluminum cover plate air actuator designed as a direct replacement for Dunlop Springride SP2334 and other OEM models. Features precision engineering with 3PCS M6 threaded holes for secure mounting.

AIRSUSTECH Part No.: 1B4.5X1P Specifications
Nut/Blind Nuts:
  • Number of screws on top cover: 6
  • Number of bottom cover screws: 4
  • Top cover plate screw thread: M6
  • Bottom cover plate screw thread: M6
  • Air inlet connector: G3/8

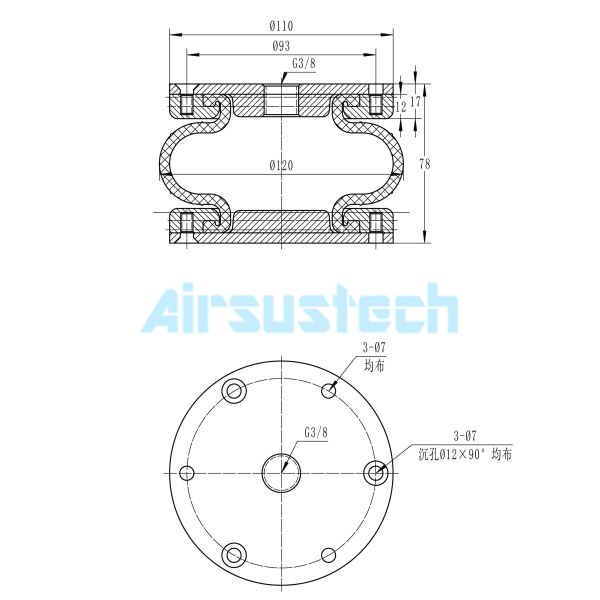

Cover Plate Dimensions:
  • Top cover diameter: 110 mm
  • Top cover screw center distance: 93 mm
  • Bottom cover diameter: 110 mm
  • Bottom cover screw center distance: 93 mm
Rubber Bellows Specifications:
  • Maximum diameter: 125 mm
  • Space required: 140 mm
  • Design height: 65 mm
  • Compressed height: 50 mm
  • Maximum height: 90 mm
  • Buffer block: Unbuffered
  • Strap ring: No strap ring
Dimensional Specifications
H [max] H [design] H [min] Stroke (L) ø Max Assembly Space
90 mm 65 mm 50 mm 40 mm 125 mm 140 mm
OEM Replacement Compatibility
Firestone Dunlop Contitech Other Brands
W01-R58-4050 Pneuride 4 1/2"X1 FS 44-5 DI Parker 9109400
WO1-R58-4050 Pneuride 4 1/2'X1 FS 44-5 DI G3/8 Oria 4 1/2"X1
W01R584050 Pneuride 4 1/2X1 FS 44-5 DI M6 Oria 4 1/2'X1
WO1R584050 Springride SP2334 FS 44-5 DI G3/8 M6 Oria 4 1/2X1
W01 R58 4050 PNP 30559 01 06 Norgren PM/31041 Norgren PM 31041
WO1 R58 4050 PNP305590106 Norgren PM31041
Air Spring Safety Precautions
  • Air springs must not be pressurized unless restricted by an external frame or suitable load
  • Strokes must be limited by direct use of bump stops or external stops
  • When stacking air springs, ensure proper guidance and fixation
  • Air springs are single-acting actuators and must not be used below atmospheric pressure
  • Check overpressure conditions during quick compression events
Related 4 1/2'' Size Air Springs
AIRSUSTECH No. Specifications Cross References
1B4.5X1P Center Distance: 93 mm
Cover Plate Diameter: 110 mm
Design Height: 78 mm
Air Inlet: G3/8
Threaded Holes: M6
Natural Diameter: 120 mm		 Firestone W01-R58-4050
Dunlop Pneuride 4 1/2"X1
Dunlop Springride SP2334
Dunlop PNP 30559 01 06
Contitech FS 44-5 DI
Norgren PM/31041
Parker 9109400
Oria 4 1/2"X1
2B4.5X2P Center Distance: 93 mm
Cover Plate Diameter: 110 mm
Design Height: #
Air Inlet: G3/8
Threaded Holes: 6XM6
Natural Diameter: 110 mm		 Contitech FD 44-10 DI CR
Firestone W01-R58-4051
Dunlop SP2441
Dunlop 4 1/2''X2
Dunlop PNP 30559 01 07
YS-AIR YS-115-2V
Norgren PM/31042
Oria 4 1/2''X2
