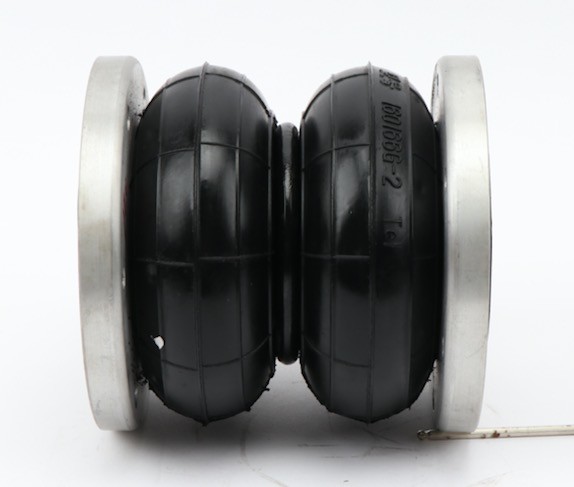

W01-R58-4081 Heavy Duty Air Bags Dunlop Air Ride Springs 31043
W01-R58-4081 Heavy Duty Air Bags Dunlop Air Ride Springs 31043
W01-R58-4081 Heavy Duty Air Bags Dunlop Air Ride Springs 31043
W01-R58-4081 Heavy Duty Air Bags Dunlop Air Ride Springs 31043
W01-R58-4081 Heavy Duty Air Bags Dunlop Air Ride Springs 31043
W01-R58-4081 Heavy Duty Air Bags Dunlop Air Ride Springs 31043
W01-R58-4081 Heavy Duty Air Bags Dunlop Air Ride Springs 31043
W01-R58-4081 Heavy Duty Air Bags Dunlop Air Ride Springs 31043
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2 3/4 X 3
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
W01-R58-4081
N.W. :
3.5 Kg
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Other OEM :
Pm/31043
Trademark :
Dunlop
Transport Package :
Cartons
Specification :
24*24*24 cm
Origin :
Europe
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber and Aluminum
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

SP 2910 Dunlop Air Spring 2 3/4 X 3 Refer to Firestone Air Bags W01-R58-4081

AIRSUSTECH1B4 1/2 Cross OEM:

AIRSUSTECH:2 3/4 X 3

Firestone:W01-R58-4081

Firestone:W01 R58 4081

Firestone:W01R584081


Comparable: W01R584081 W01-R58-4081 WO1R584081, WO1-R58-4081

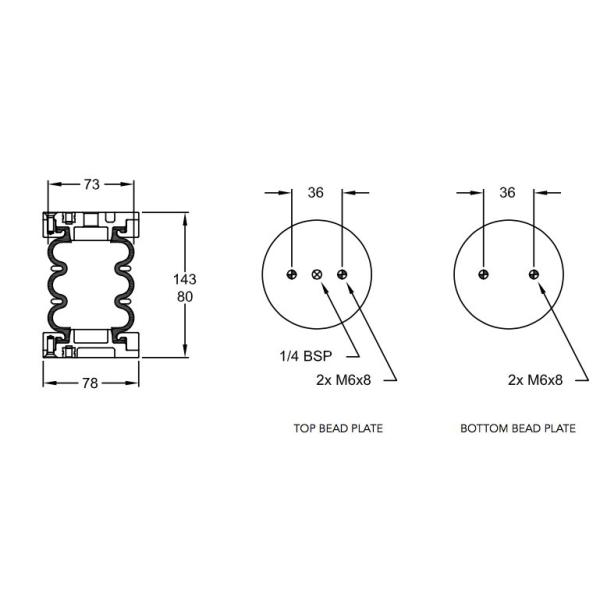

The Specification AIRSUSTECH 2 3/4 X 3:

bellows type industrial air spring,

single spiral,

effective area 44cm,

maximum stroke 5cm,

movable connecting part,

female mounting thread, G3/8 BSPP,

neoprene (chloroprene Ene)
Manufacturer: Mainland

Compressed height
1.97 inches
Maximum expansion height
143 mm
The maximum diameter
4.92 inches
Maximum inflation pressure
120 psi
Maximum stroke
63 mm
Inlet type
Metric
Air inlet
3/8"
series
d
lowest temperature
-22°F
Maximum temperature
194°F
Bellows type
Single convolution
weight
1 pound

Other kinds of the Firestone W01-R58 air spring:

W01-R58-4023 140 W01-R58-4085 133 W01-R58-4052 131 W01-R58-4076 131 W01-R58-4053 132 W01-R58-4092 135 W01-R58-4086 136 W01-R58-4062 138 W01-R58-4054 133 W01-R58-4060 136 W01-R58-4063 138 W01-R58-4074 139 W01-R58-4043 130 W01-R58-4037 137 W01-R58-4050 130 W01-R58-4051 131 W01-R58-4045 133 W01-R58-4055 134 W01-R58-4048 134 W01-R58-4044 136 W01-R58-4075 139 W01-R58-4047 135 W01-R58-4057 134 W01-R58-4038 136 W01-R58-4095 133 W01-R58-4056 134 W01-R58-4035 131 W01-R58-4081 130 W01-R58-4078 132 W01-R58-4070 132 W01-R58-4036 132 W01-R58-4059 135 W01-R58-4061 136 W01-R58-4073 137 W01-R58-4058 134
