SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm
SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm
SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm
SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm
SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm
SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm
Specifications
Brand Name :
AIRSUSTECH
Model Number :
4 1/2 X 3
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
MOQ :
3 pieces
Payment Terms :
T/T, Western Union,Paypal or Others
Supply Ability :
1000pcs/week
Delivery Time :
3-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Model NO. :
W01-R58-4035
N.W. :
1,2 KG
Warranty :
One Year
Pressure Ability :
0.2-0.8 M PA
Other OEM :
SP2895
Trademark :
Dunlop
Transport Package :
Cartons
Specification :
24*24*24 cm
Origin :
Europe
HS Code :
8708809000
Port :
Huangpu, China
Function :
Reduce Vibration
Material :
Rubber and Aluminum
Usage :
Industrial
Load Type :
Compression
Production Process :
Vulcanization
Shape :
Convoluted
Description

4 1/2 X 3 Dunlop Air Spring SP2895 Firestone Air Actuator W01-R58-4035 Stroke 100mm

AIRSUSTECH 4 1/2 X 3 Cross OEM:

AIRSUSTECH:4 1/2 X 3

Rubber Bellows 4 1/2 X 3
Dunlop Air Spring SP 2895

Dunlop Air Spring SP2895
Firestone Air Bags W01-R58-4035
Dunlop Rubber Bellows SP 2895

Dunlop Rubber Bellows SP2895

Firestone:W01-R58-4035

Firestone:W01 R58 4035

Firestone:W01R584035


Comparable: W01R584035, W01-R58-4035, WO1R584035, WO1-R58-4035

The Specification AIRSUSTECH 4 1/2 X 3 :

bellows type industrial air spring,

single spiral,

effective area 44cm,

maximum stroke 100mm,

movable connecting part,

female mounting thread, G3/8 BSPP,

neoprene (chloroprene Ene)
Manufacturer: Mainland

Compressed height
100MM
Maximum expansion height
200MM
The maximum diameter
125MM
Maximum inflation pressure
120 psi
Maximum stroke
100MM
Inlet type
Metric
Air inlet
G3/8
series
d
lowest temperature
-22°F
Maximum temperature
194°F
Bellows type
Triple convolutions

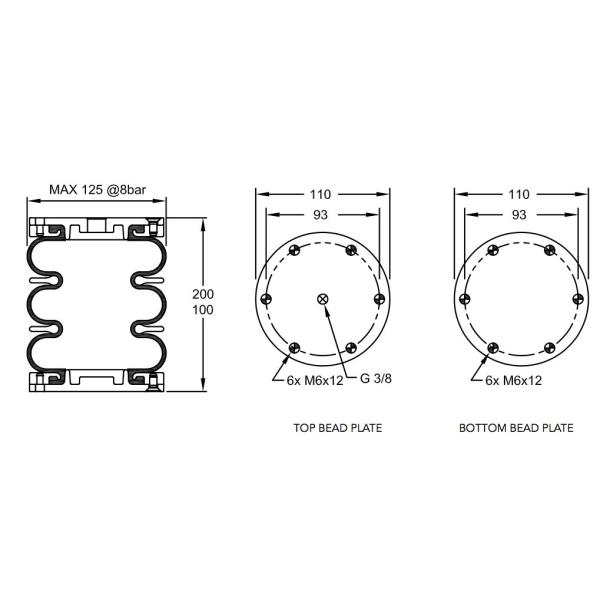

The drawing of 4 1/2 X 3 Dunlop Air Spring SP2895:

SP2895 Dunlop Air Spring W01-R58-4035 Firestone Airstroke 100mm

Other kinds of the Firestone W01-R58 air spring:

W01-R58-4023 140 W01-R58-4085 133 W01-R58-4052 131 W01-R58-4076 131

W01-R58-4053 132 W01-R58-4092 135 W01-R58-4086 136 W01-R58-4062 138

W01-R58-4054 133 W01-R58-4060 136 W01-R58-4063 138 W01-R58-4074 139

W01-R58-4043 130 W01-R58-4037 137 W01-R58-4050 130 W01-R58-4051 131

W01-R58-4045 133 W01-R58-4055 134 W01-R58-4048 134 W01-R58-4044 136

W01-R58-4075 139 W01-R58-4047 135 W01-R58-4057 134 W01-R58-4038 136

W01-R58-4095 133 W01-R58-4056 134 W01-R58-4035 131 W01-R58-4081 130

W01-R58-4078 132 W01-R58-4070 132 W01-R58-4036 132 W01-R58-4059 135

W01-R58-4061 136 W01-R58-4073 137 W01-R58-4058 134
