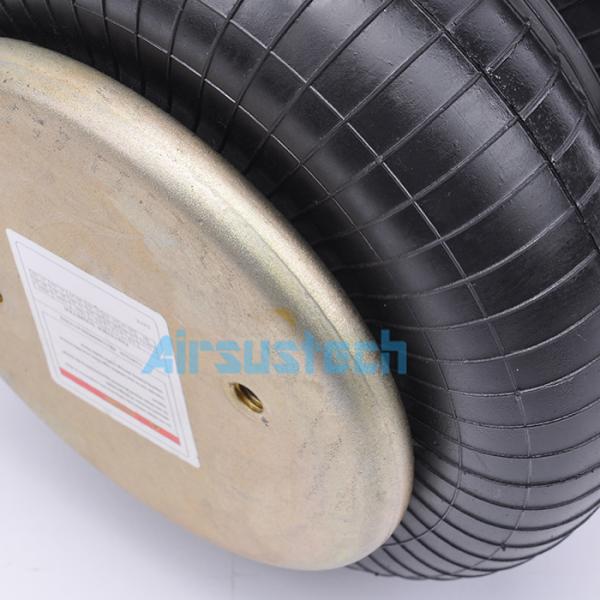

Double Convoluted Industrial Air Spring Shocks Leland Sc2011 SC2011
Double Convoluted Industrial Air Spring Shocks Leland Sc2011 SC2011
Double Convoluted Industrial Air Spring Shocks Leland Sc2011 SC2011
Double Convoluted Industrial Air Spring Shocks Leland Sc2011 SC2011
Specifications
Brand Name :
AIRSUSTECH
Model Number :
2B6910
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Material :
Rubber and Iron
Certifications :
ISO/TS16949:2009
Warranty Period :
One Year
Packing :
Neutral Box Or As Customers' Request
Size :
24×24×24 cm
Quality :
100% Tested
Applications :
Industrial Equipments Or Others
OEM :
Acceptable
Sample :
Available
Cross Reference :
Leland Sc2011 SC2011
Description

Double Convoluted Industrial Air Spring Shocks Leland Sc2011 SC2011

Cross Reference

Taurus KF218-6910

Taurus KF218 6910

Taurus KF2186910

Firestone W01-358-6910

Firestone W01 358 6910

Firestone W013586910

Firestone WO1-358-6910

Firestone WO1 358 6910

Firestone WO13586910

Contitech FD 200-19 320

Contitech FD 200 19 320

Contitech FD 200-19320

Goodyear 2B9-200;2B9 200

Goodyear 2B9-202; 2B9 202

Goodyear 2B9-216; 2B9 216

Goodyear 578423202

Triangle 6325

Triangle 4320

OEM Reference

Leland Sc2011

Leland SC2011

Dayton 3546910

Dina A812719

Dina AZ812719

Brake&Wheel M3501

Navistar 554783C1

Hendrickson S8768/458433

Ridewell 1003586910C

SAF Holland 57006910

Trailers De 133128

Tuthill 1371

Watson&Chalin AS-0001

Watson&Chalin AS-0156G

2B6910 Specifications and Tecnical Parameters

Blind Nut

Nut/blind nut Top plate screw (nut) teeth: 2 x 3/8-16UNC

Top plate screw center distance: 89 mm

Bottom cover plate screw (nut) teeth: 2 x 3/8-16UNC

Bottom plate screw center distance : 89 mm

Air hole/air inlet/air fitting air hole/air inlet

1/4NPTF

The distance between the air hole and the screw center: 44.5mm

Cover plate

Top plate diameter (width): 160 mm

Bottom cover diameter (width): 160 mm

Rubber Bellows

Rubber bellows natural diameter: 224 mm

Rubber bellows Max. diameter: 251mm

Height

Min. height: 75mm

Max. height: 260mm

Working Stroke: 185mm

Space required: 265mm

Bumper block/bumper block

Without bumper

Belt loop/Girdle hoop/Girdle ring

One piece of belt loop/girdle hoop/girdle ring

Min. pressure: 0 bar

Return force to min.height: ≤200N

Overall weight with clamped plates: 3.2kg

Vibration isolation - dynamic characteristic values

Design Height H: recommended 220mm, minimum 205mm

Pressure p[bar] 3 4 5 6 7 8 Vol. V[l]
Force(Load) [KN] 6.1 8.2 10.3 12.5 14.5 16.5 6.0
Spring rate [N/cm] 750 960 1110 1340 1510 1730
Natural frequency [Hz] 1.8 1.7 1.7 1.6 1.6 1.6

Pneumatic application-static characteristic values

Force F[KN]

Pressure p [bar] 3 4 5 6 7 8 Vol. V [l]
Height H[mm] 250 4.9 6.6 8.2 9.5 11.7 13.4 6.5
210 6.7 8.8 11.0 13.3 15.5 17.6 5.8
170 7.9 10.5 13.1 15.7 18.3 20.7 4.9
130 9.1 12.0 15.0 17.8 20.7 23.4 4.0
90 9.9 13.2 16.6 19.8 23.0 25.8 2.9

Applicatons

Quick Clamp
Calender Roller
Belt Tensioner
Roller friction brake
Pipe tapping equipment
Torsional Friction Brake, etc

Double Convoluted Industrial Air Spring Shocks Leland Sc2011 SC2011

Double Convoluted Industrial Air Spring Shocks Leland Sc2011 SC2011
