W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
Specifications
Supply Ability :
1000 PCS/Week
Stroke :
280 MM
Brand Name :
AIRSUSTECH
Durability :
High
Model Number :
1T5798
Firestone :
W01-358-5423
Air Connection :
3/4-16UNF, 1/4NPTF
MOQ :
1 Piece
Delivery Time :
3-8 Working Days
Warranty :
One Year
Payment Terms :
T/T,,Paypal or Others,L/C,D/A,D/P,MoneyGram
Type of Goods :
Complete Air Spring
Origin :
China
Price :
Negotiable
Material :
Rubber and Steel
Condition :
Brand New
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou, China
Compatibility :
Easy to Replace
Packaging Details :
Strong Carton Box or as Customers Requirement
Description
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
AIRSUSTECH Part No.: 1T5798 Specifications
Top Cover Plate Diameter 160 mm
Piston Diameter 179 mm
Air Fitting 3/4-16UNF, 1/4NPTF
Screw on Piston 1/2-13UNC
Minimum Height 140 mm
Maximum height 420 mm
Natural Diameter 227 mm
Total Stroke 280 mm
Standard OEM standard
Warranty one year
OEM Cross Reference
Firestone W01-358-5423
Firestone WO1-358-5423
Firestone W013585423
Firestone WO13585423
Firestone W01 358 5423
Firestone WO1 358 5423
Firestone Style 1T14C-3
Granning 5235/5307
Rowe Truck ASC1500ASCS1500/ASCS2000 Lift
Rowe Trailer ASCT1500/ASCST1500/ASCST2000
Continental Air Spring Systems for Commercial Vehicle Applications
Air Suspension for Commercial Vehicles
Air springs prove extremely successful in commercial vehicles of all kinds. They offer the most diverse possibilities for the front, rear and trailing axles as well as on the leading axle of semi-trailer tractors.
Air Suspension Systems in Buses
Nowadays, buses generally take advantage of air springs to ensure consistently high riding comfort and a constant boarding height regardless of the load. As a rule, two air springs are used on the front axle and four air springs on the rear axle. Newer "kneeling" buses are equipped with air springs that lower one side of the vehicle at stops, assisting passenger access.
Cab Suspension Systems
Truck cabs and seats can be cushioned with air springs to enhance driver comfort, safety and working environment. Depending upon the design of the vehicle, the air spring is employed either as a separate suspension element alongside a shock absorber or combined as an integrated air spring / damper unit.
Trailers/Semi-Trailers
Modern trailer and semi trailer are to a very great extent equipped with air suspension in order to save goods and vehicles and in order to provide more safety regarding road behavior of the vehicle. Normally, every axle assembly has two air springs behind the axle - one on each side.
AIRSUSTECH Can Replace These OEM Numbers
W01-358-5405 W01-358-5406 W01-358-5408
W01-358-5410 W01-358-5412 W01-358-5414
W01-358-5422 W01-358-5423 W01-358-5433
W01-358-5434 W01-358-5436 W01-358-9478

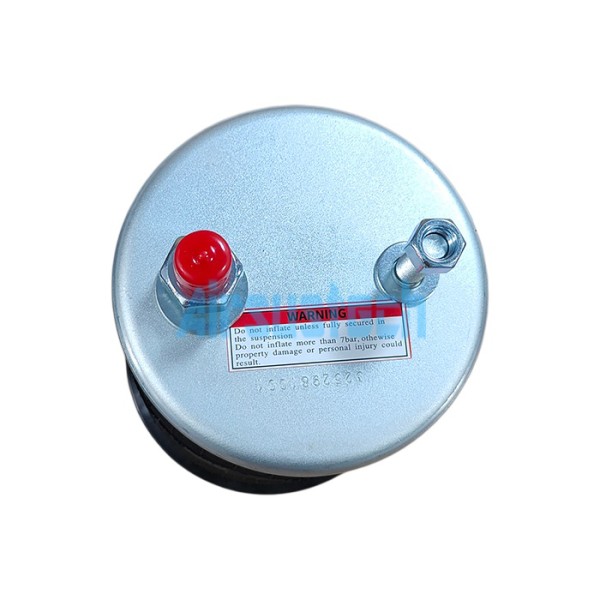

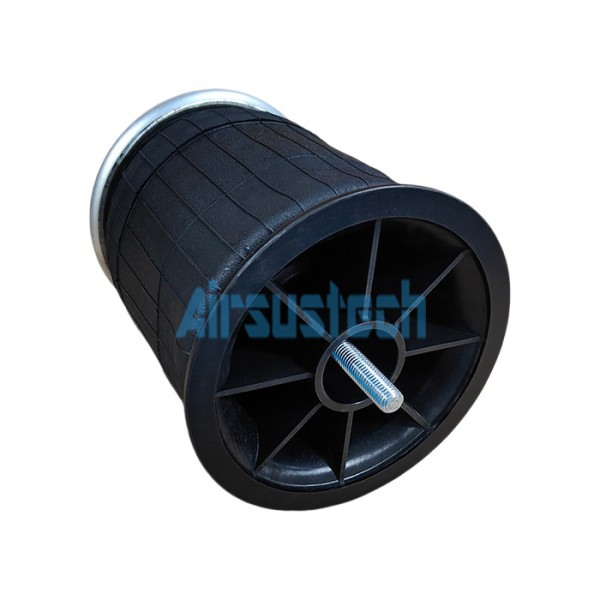

The Real Pictures of AIRSUSTECH 1T5798 Complete Airbag
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
Different Types of AIRSUSTECH Air Springs
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
Advanced Manufacturing Capabilities
W01-358-5423 Firestone Complete Air Spring Full Stroke 280MM For Reduce Shocks
