Specifications
Model Number :
3B12X3T
Firestone :
W01-R58-4062
Material :
Rubber and Steel
MOQ :
1 Piece
Pressure Ability :
8 Bar
Brand Name :
AIRSUSTECH
Price :
Negotiable
Delivery Time :
3-8 Working Days
Supplier :
AIRSUSTECH
Number of Ply Bellows :
3 / Three
Supply Ability :
1000 PCS/Week
Cross :
Oria 12''X3
Packaging Details :
Strong Carton Box or as Customers Requirement
Payment Terms :
T/T,Western Union,Paypal or Others,L/C,D/A,D/P,MoneyGram
PCD :
232 MM
Compatibility :
100% Accuracy of Fit
Place of Origin :
Guangzhou, China
Part No. :
3B12X3T
Maintenance :
Low / Minimal
Certification :
ISO/TS16949:2009
Description
Air Spring Shocks Oria 12''X3 Stamped Flange Air Bellow Contitech FT 412-32 DS
AIRSUSTECH Part No.: 3B12X3T Specifications
PCD232 MM
Cover Plate O.D.260 MM
Minimum Height100 MM
Maximum Height400 MM
Max. Outer Diameter320 MM
Bolts Type4-M10
Bolts Length26 MM
Full Stroke300 MM
AIRSUSTECH 3B12X3T Technical Parameters
Dynamic Characteristics For Use As Isolator
Pressure [bar]34567
Load [kN]10.513.917.320.724.2
Spring Rate [N/mm]107136167197228
Natural Frequency [Hz]1.601.571.551.541.54
Static Characteristics For Use As Actuator
Pressure [bar]34567
Height [mm] 10020.727.033.439.846.4
Height [mm] 15018.724.630.536.442.5
Height [mm] 20016.621.927.232.437.8
Height [mm] 25014.318.823.427.932.6
Height [mm] 30011.615.319.122.826.6
Height [mm] 3508.611.414.317.120.0
Alternative Items
Firestone W01-R58-4062, Firestone WO1-R58-4062, Firestone W01R584062, Firestone WO1R584062, Firestone W01 R58 4062, Firestone WO1 R58 4062, Dunlop Pneuride 12''X3, Dunlop Pneuride 12'X3, Dunlop Pneuride 12X3, Dunlop Springride SP1542, Dunlop PNP 30552 01 78, Dunlop PNP305520178, Contitech FT 412-32 DS, Contitech FT 412-32 DS G1/2, Contitech FT 412-32 DS M10, Contitech FT 41232 DS, Contitech FT 412-32 DS G1/2 M10, Norgren M/31123, Norgren M31123, Norgren M 31123, Parker 9109051, Oria 12''X3, Oria 12'X3, Oria 12X3
AIRSUSTECH 3B12X3T Advantages
  • High force output
  • Long working stroke
  • Excellent vibration isolation capability
  • Reliable performance in industrial environments
  • Widely used where high thrust and low-friction movement are required
  • Compatible Cross-Reference Platform
AIRSUSTECH Other 12 Inch Air Springs with Flange Plate
AIRSUSTECH Part No. Specifications Cross References
1B12X1T Center Distance: 232 mm
Cover Plate Diameter: 260 mm
Air Inlet: G1/2
Bolts Type: 4-M10
Static Height: 130 mm
Natural Diameter: 300 mm		 Firestone W01-R58-4060, Dunlop Pneuride 12''X1, Dunlop Springride SP1540, Contitech FS 412-10 DS, Norgren M/31121, Parker 9109044, Dunlop PNP 305520120, Oria 12''X1
2B12X2T Center Distance: 232 mm
Cover Plate Diameter: 260 mm
Air Inlet: G1/2
Bolts Type: 4-M10
Static Height: 180 mm
Natural Diameter: 300 mm		 Firestone W01-R58-4061, Dunlop Pneuride 12"X2, Dunlop Springride SP1541, Contitech FD 412-18 DS, Norgren M/31122, Parker 9109041, Dunlop PNP 305520118, Oria 12''X2
3B12X3T Center Distance: 232 mm
Cover Plate Diameter: 260 mm
Air Inlet: G1/2
Bolts Type: 4-M10
Static Height: 252 mm
Natural Diameter: 300 mm		 Firestone W01-R58-4062, Dunlop Pneuride 12''X3, Dunlop Springride SP1542, Contitech FT 412-32 DS, Norgren M/31123, Parker 9109051, Dunlop PNP 30552 01 78, Oria 12''X3

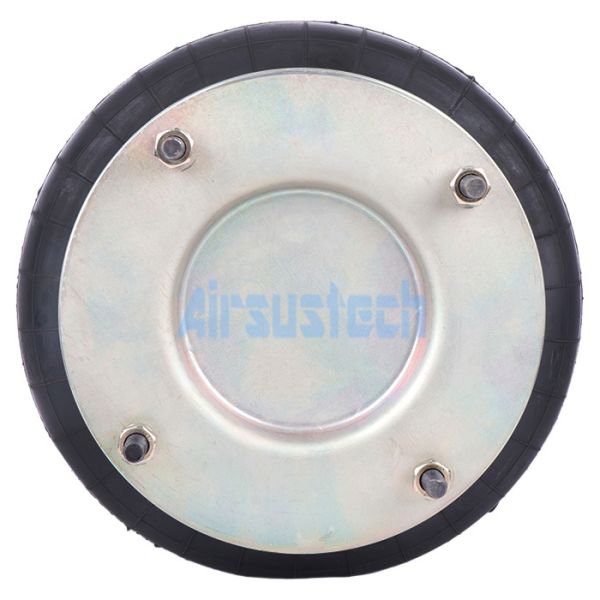

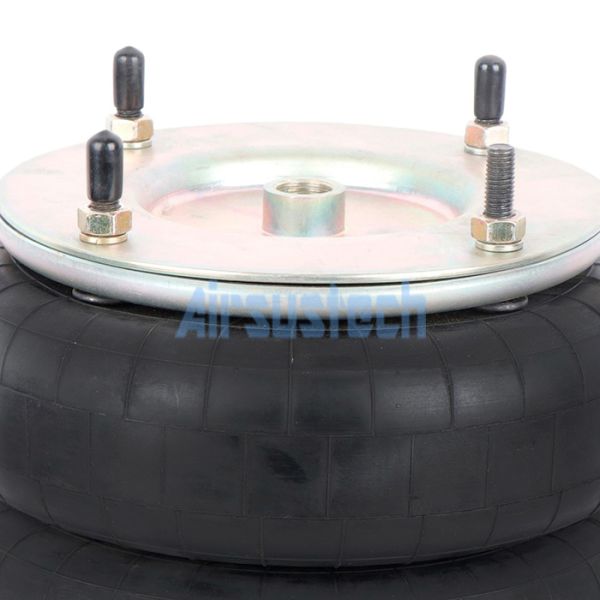

The Physical Pictures of AIRSUSTECH 3B12X3T Air Bag
Air Spring Shocks Oria 12''X3 Stamped Flange Air Bellow Contitech FT 412-32 DS Air Spring Shocks Oria 12''X3 Stamped Flange Air Bellow Contitech FT 412-32 DS
Different Types of AIRSUSTECH Air Springs
Air Spring Shocks Oria 12''X3 Stamped Flange Air Bellow Contitech FT 412-32 DS
Advanced Manufacturing Capabilities
Air Spring Shocks Oria 12''X3 Stamped Flange Air Bellow Contitech FT 412-32 DS
