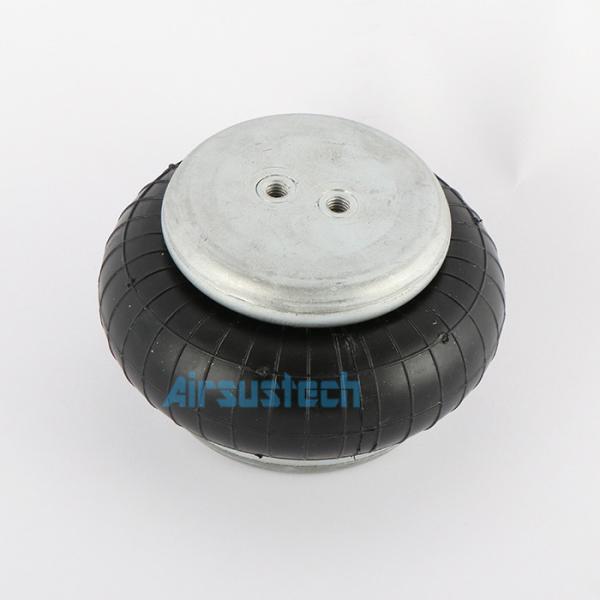

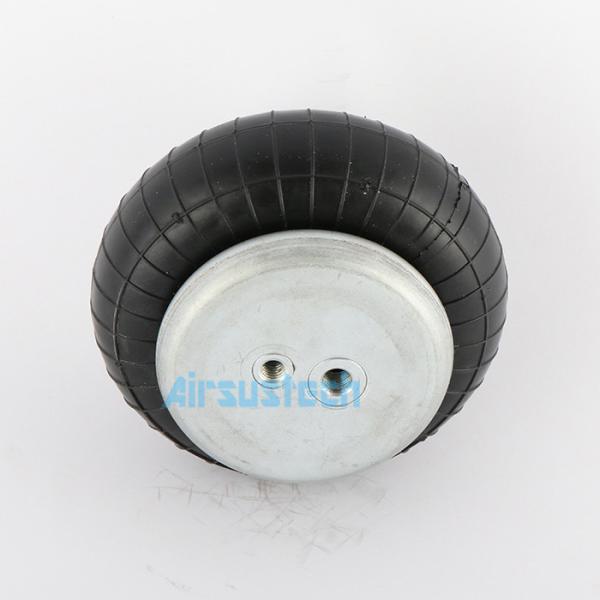

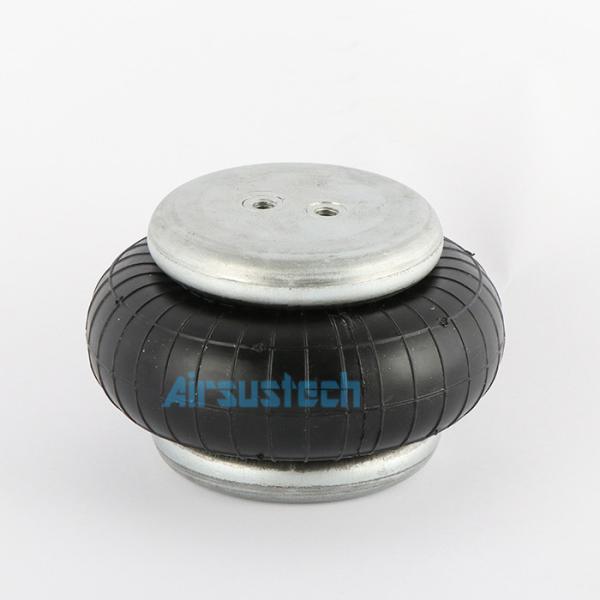

Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Specifications
Brand Name :
AIRSUSTECH
Model Number :
1B4060
Certification :
ISO/TS16949:2009
Place of Origin :
Guangzhou China
MOQ :
3Pieces
Payment Terms :
T/T, Western Union, Paypal or Others
Supply Ability :
1000PCS/Week
Delivery Time :
5-8 Working Days
Packaging Details :
Strong Carton Box or as Customers Requirement
Warranty :
12 months
Material :
Rubber and mental
Port :
Huangpu, China
Condition :
100% new-brand
Shock absorber type :
Gas-filled
Type :
single convoluted air bellow
AIRSUSTECH Part Number :
1B4060
Pressure Ability :
0.2-0.8 M PA
Place of Origialin :
Guangdong, China
OEM :
YES
Description

Product Description


Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled


The detailed Specifications and techical data

The Max. Diameter 145mm
Air hole/air inlet G1/8
Working stroke maximum 110 mm to minimum 50 mm
Top plate screw (nut) teeth M8×1.25
Bottom plate screw (nut) teeth 2 x M8×1.25
Top cover diamete 90 mm
Bottom cover diameter 90 mm
Screw center distance 20 mm
The air hole distance between the nuts together

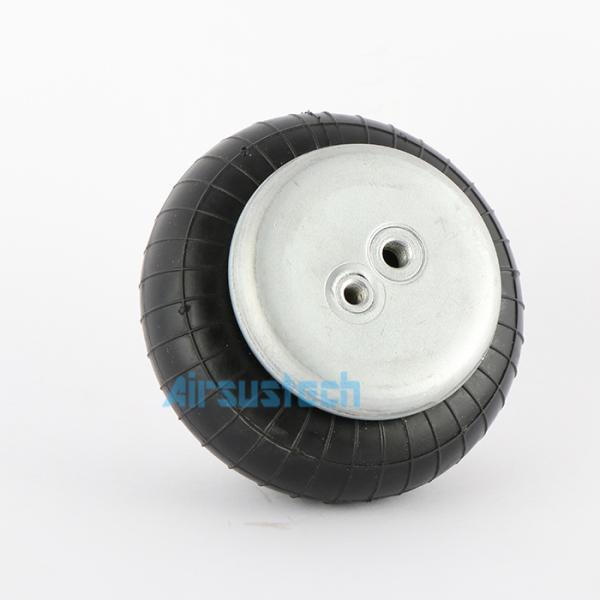

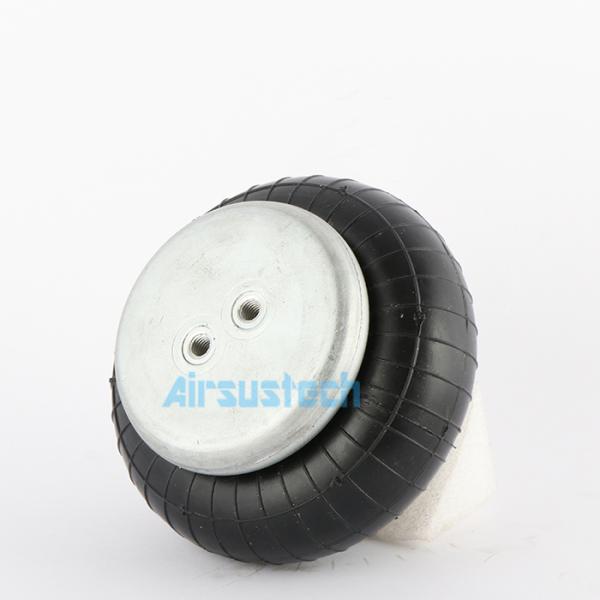

The reated picture

Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled
Rubber Contitech Air Spring FS 40-6 1/8 M8 Single Convoluted Gas Filled


OEM Number:

Contitech FS 40-6 1/8 M8
Contitech FS406 1/8 M8
Contitech FS 406 1/8 M8
Phoenix SP 1 B 04
Phoenix SP1B 04
Phoenix SP1B04
Weforma WBE 100-E1
Weforma WBE 100E1



FAQ:

1.Q: What is your payment term?
A:We normally do FOB, CFR, CIF, DDP, DAP, EXW.

2. Q: I can not find out the products what I want from your website,can you offer the items I need?
A:Sure. One of our service term is sourcing the products that our customers need,So please tell us the details information of the item.

3. Q:How long is the Warranty?
A:One Year.

4. Q:Can I get one sample to check the quality?
A:Of coure. You can order one sample first and then decide to place a large order or not.

Air springs have successfully solved actuating problems, at a reduced cost,in many applications including:Commercial washing machine; Hopper tank; Packaging machine vibration; The compressor; The console; Vibrating screen; Blower and motor; Control panel; Shock isolation; Shielding and flexible coupling; Vacuum pump; Expansion chuck; Supporting roller CAM; The sun tracker.
