25KVA Induction Hardening Machines IGBT Medium Frequency Induction Heating Machine
25KVA Induction Hardening Machines IGBT Medium Frequency Induction Heating Machine
Specifications
Brand Name :
InductionFusion
Model Number :
IF-40AB
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
core components :
IGBT, ELECTRONIC BOARDS
machinery test report :
Provided
video outgoing-inspection :
Provided
Application :

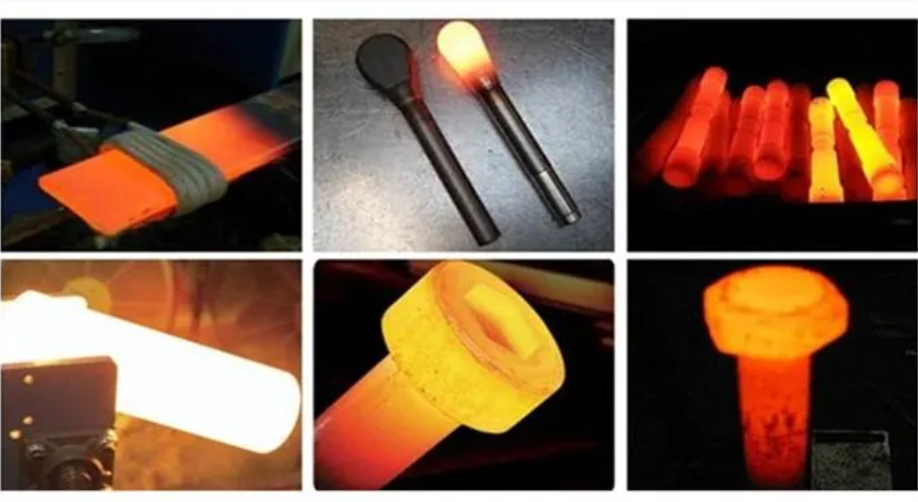

Heating, Forging, Melting, Hardening and etc
After-sales Service Provided :
Engineers available to service machinery overseas
System :
IGBT Control
Description

25KVA High-Efficiency Medium Frequency Portable Induction Heating Machine

Product Description

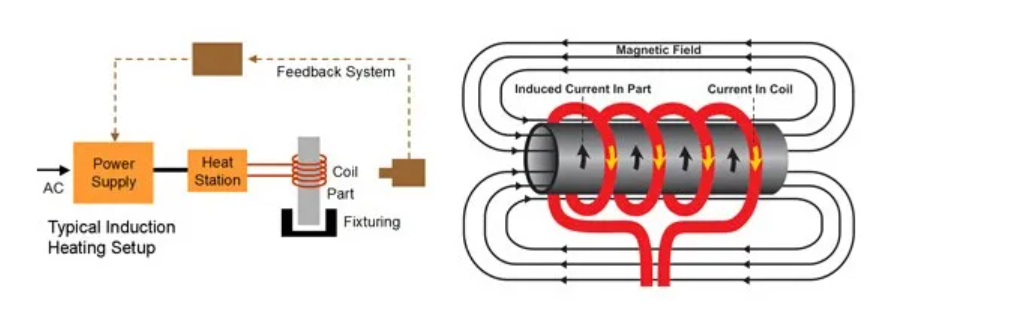

Operating Principle of Induction Heating


Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working, heat treatment, welding and melting. This type of heating technique is also applicable to packing industry (such as sealing of aluminum foil used in medicine and food industry), semiconductor material (such as extruded monocrystalline silicon and heated affixing metal parts for auto glass).

Basic components of induction heating system include induction coil, AC power source and work pieces. Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil. The alternating current possessed by the coil can create a alternating magnetic field passing through the work pieces to produce eddy flow as required by heating.

Features:

1. It adopts the most advanced MOS, IGBT frequency conversion control technologies to ensure the high efficiency and maximum output power.

2. It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficient and fast heating and bring into play the superior performance of the products.

3. It has the function of three-stage time setting represented by heating-heat preservation-cooling. Furthermore, the power for heating and heat preservation is available for independent regulation, which can facilitate the heating and heat preservation, which is applicable to places requiring bulking and repeated heating.

4. A maximum ten types fault protection and display of over-current, over-voltage, water shortage and phase missing can provide higher reliability and durability.

5. It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.

6. The comprehensive full load design is available for 24-hour continuous operation.

7. It is available for ultraviolet temperature detection, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.

Technical Parameter:

material Aluminum
Work power 340v-430v
Maximum input current 42A
Output power 25kw
Fluctuating frequency 1-20khz
Output current 200-1800A
The flow rate of cooling water 0.08-0.16Mpa 9L/Min
Water temperature protection point 50C
Product size main :620x280x550mm
transformer :560x295x470mm
Net weight main : 37.5kgs
transformer : 42.5kgs
Induction Heating Work Principle25KVA Induction Hardening Machines IGBT Medium Frequency Induction Heating Machine
