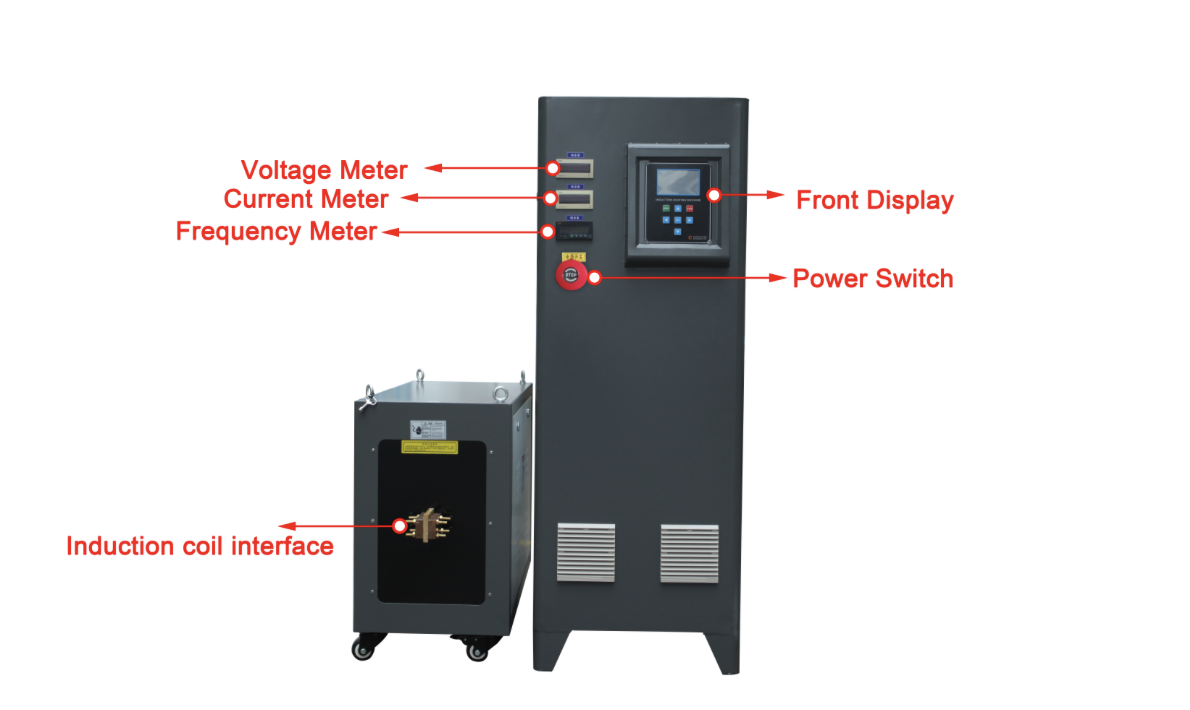

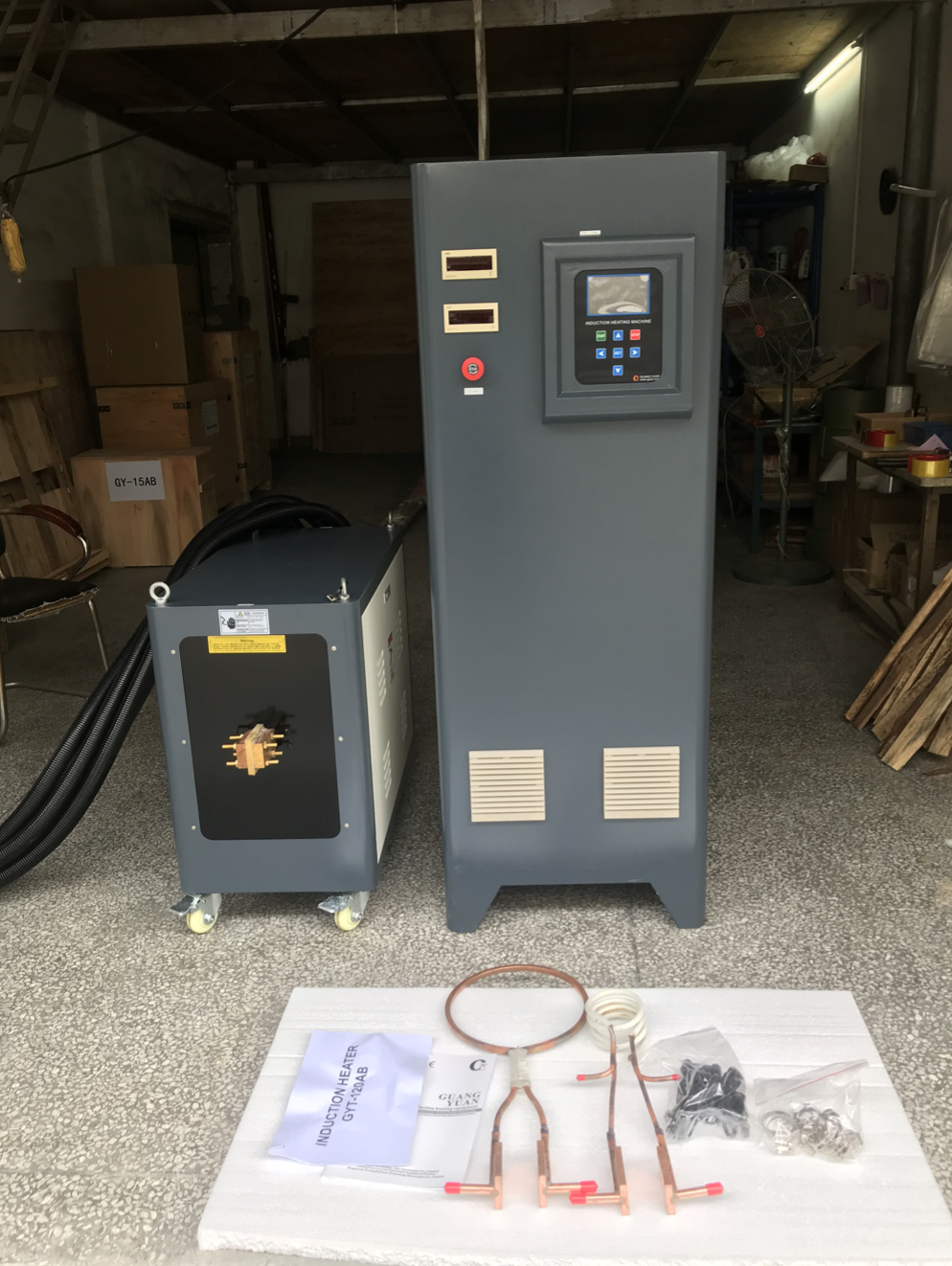

IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden
Specifications
Brand Name :
InductionFusion
Model Number :
IF-120AB
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
Application: :
Shaft Hardening
Type :
Machine,IGBT Induction Hardening Quenching Machine
Certificate :
CE , SGS , ROHS
warranty :
1 Year
Heating principle :
Magnetic induction heating
Customize :
Customize Equipment
Description
IGBT Control Induction Heating Machine Energy Saving For Square Socket Harden

Induction Heating Machine Equipment GYSQ-TC-120AB Parameter

Model IF-TC -120AB (Three phase)
work power 340V-430V
Maximum input current 180A
Output power 120KW
fluctuating frequency 10-50khz
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 50C
product size main : 770x550x1510mm
transformer : 870x430x750 mm
net weight main : 150gks
transformer : 120kgs


Delivery Time: within 7 workdays.
Shipping Term:By sea,By air,by express.

Induction heating Machine advantages:

Energy saving
No physical contact and less maintenance.
Minimizes the time of heating. Therefore it reduce oxidation and decrease production time.
Easier cleaning processes afterwards
Reduces the heat affected area
Reduced risk causing a more pleasant work environment than conventional methods.
Possibility to automate welding processes which leads to an easier implementing and repetitive process

FAQ

Q: Why choose our Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,price,service,delivery time,we all have large advantage.

Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,pass me workpiece material & size,Temperature requirement and heating time requirement.Then we will recommend fit machine for you reference.

Q:How about the machine delivery time?
A: Small machine delivery time is 3~7 workdays.Big machine delivery time 15~25 workdays.

Q:How about the machine warranty?
A:Our goods support one year warranty not by personal purpose,support technical service all life.
During the warranty,if machine have problem need change spare parts,we can replace for you charge free.
