100kw Shaft Induction IGBT 50KHZ Heat Treatment Machine For Gears
100kw Shaft Induction IGBT 50KHZ Heat Treatment Machine For Gears
Specifications
Brand Name :
InductionFusion
Model Number :
IF-100AB
Certification :
CE, SGS , ROHS
Place of Origin :
china
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T,Western Union
Supply Ability :
500set/month
Delivery Time :
7~15days
Packaging Details :
wooden box
Application: :
Shaft Hardening
Type :
Machine,IGBT Induction Hardening Quenching Machine
Certificate :
CE , SGS , ROHS
warranty :
1 Year
Description

100kw Shaft Induction IGBT 50KHZ Heat Treatment Machine For Gears

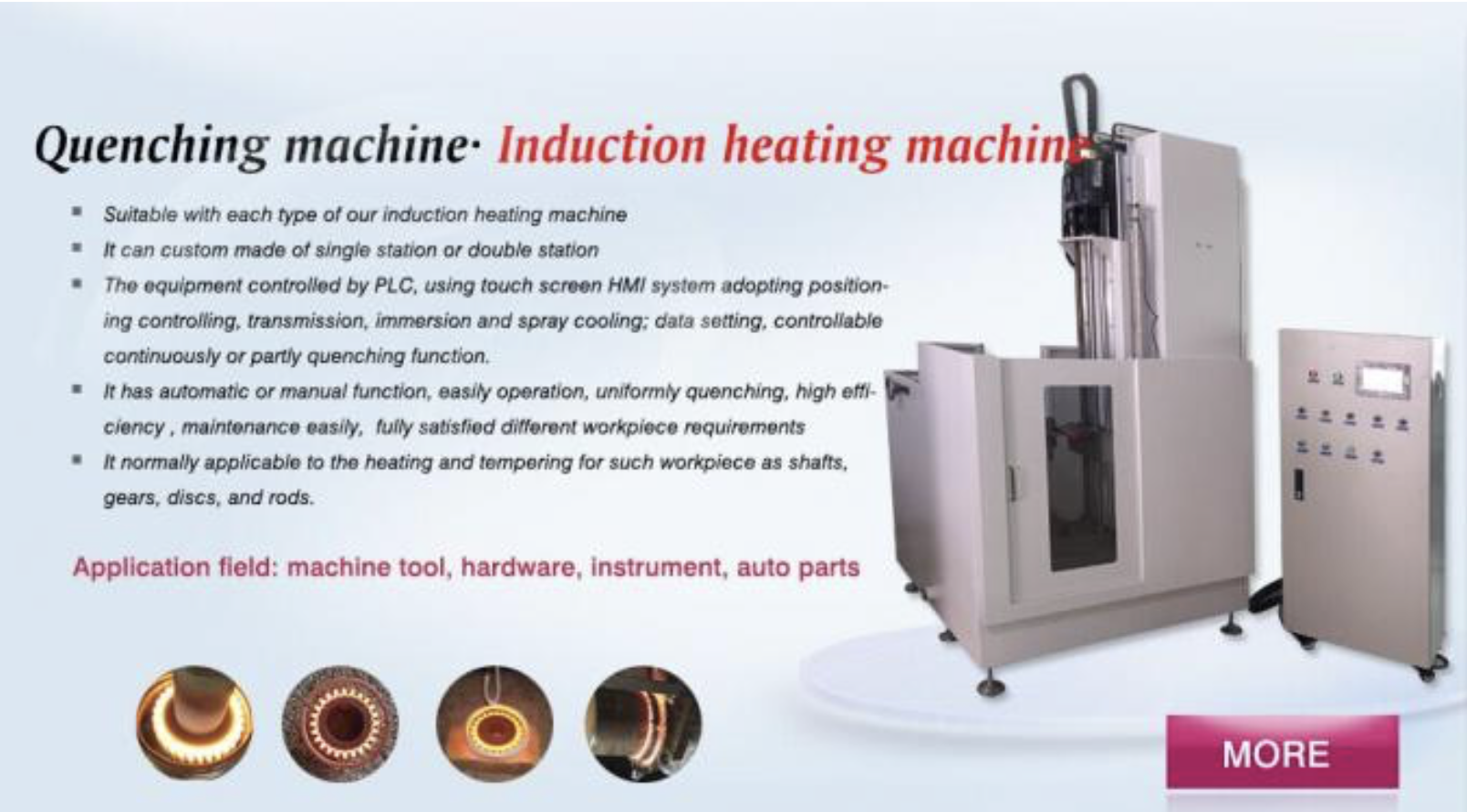

Machine Configuration


1, Ball screw, CNC cutting machine tools, total customize;

2, Guide selection of linear bearings, high precision, little friction, long life, Hard-chrome-plated anti-ability;

3, Lifting the weight balanced in part through the sprocket chain, Weight for casting scales mound;

4, Sink completely sealed, no infrastructure projects; stainless steel sliding doors, beautiful and generous;

Induction hardening is a process used for the surface hardening of steel and other alloy components. The parts to be heat treated are placed inside a water cooled copper coil and then heated above their transformation temperature by applying an alternating current to the coil. The alternating current in the coil induces an alternating magnetic field within the work piece, which if made from steel, caused the outer surface of the part to heat to a temperature above the transformation range. Carbon and alloy steels with a carbon content in the range 0.40 - 0.45% are most suitable for this process. In some cases, parts made from alloy steels such as 4320, 8620 or 9310, like steel and paper mill rolls, are first carburized to a required case depth and slow cooled, and then induction hardened.

Induction Heating Machine Equipment IF-100AB Parameter

Model IF-100AB (Three phase)
work power 340V-430V
input current 150A
output power 100KW
fluctuating frequency 30-80KHZ
output current 400-4000A
the flow rate of cooling water 0.08-0.16Mpa 10L/Min
water temperature protection point 40C
product size main : 820x600x1060 mm
transformer : 870x430x750 mm
net weight main : 110 kgs
transformer : 79.5 kgs

Induction Heater After service

Q: Why choose our Company?
A: We are manufacture which had in this filed for nearly 20 years.No matter quality,
price,service,delivery time,we all have large advantage.
Q:How to choose suiteble machine?
A:You can tell us your application,need forging,hardening,welding,melting or other,
pass me workpiece material & size,Temperature requirement and heating time requirement.
Then we will recommend fit machine for you reference.
