Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Specifications
Model NO. :
CLW5071ZBS5
Type :
Recycling
Certification :
ISO9001
Volume :
3001-6000L
Emission Standard :
Euro 4
Transmission Type :
Manual
Fuel :
Diesel
Drive Wheel :
4×2
Models :
Medium
Usage :
Dump, Swing Arm Type, Hang Barrel Type, Arm Type, Compression Type
Condition :
New
Operation Mode :
Manual + Wireless Remote Control
Tire Specifications :
7.00r16steel Wire Tire
Unloading Method :
Rear Unloading
Transport Package :
Complete Vehicle
Specification :
5995*2150*2950
Trademark :
CLW
Origin :
Hubei, China
Production Capacity :
1000
MOQ :
1
Price :
US $13,800-18,800
Place of Origin :
CHINA
Packaging Details :
Nuked
Delivery Time :
15 working days
Payment Terms :
T/T,LC,
Supply Ability :
150 sets/month
Description
Product Description
Introduction to the function of swing arm garbage truck
Chengli special vehicle swing arm garbage truck (hereinafter referred to as garbage truck) is a special vehicle used for the collection, transportation and unloading of urban bagged and bulk domestic garbage.
The car is composed of a chassis, an arm, an arm cylinder, a lifting chain, a supporting leg, a leg cylinder, a bottom plate and a multi-way reversing valve. The big arm is connected to the bottom plate, the moving end of the big arm cylinder is connected to the big arm, and the fixed end is connected to the bottom plate; the protruding and recovery of the big arm cylinder can rotate around the hinging point to realize the lifting and dumping of the garbage bin. The protruding and recovery of the leg oil cylinder can make the supporting leg protrude out and put away, and play the role of stabilizing the whole car.
The car can lift the garbage and dustbin in the underground garbage bin to the car and unload it at the same time, reducing the labor intensity of workers. The collection and transportation method of the garbage truck is widely used in the world at present. It can realize one vehicle and more boxes, greatly reducing the cost and space of equipment. The functions of its special devices are powered by automobile engines and realized through manual or electronic control by hydraulic mechanisms. The box of the vehicle is welded with high-quality carbon steel plate, which has the advantages of high strength, light weight and no secondary pollution.

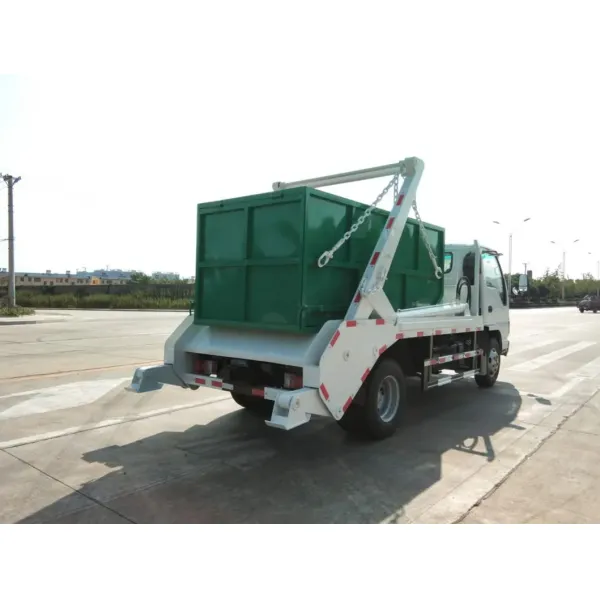

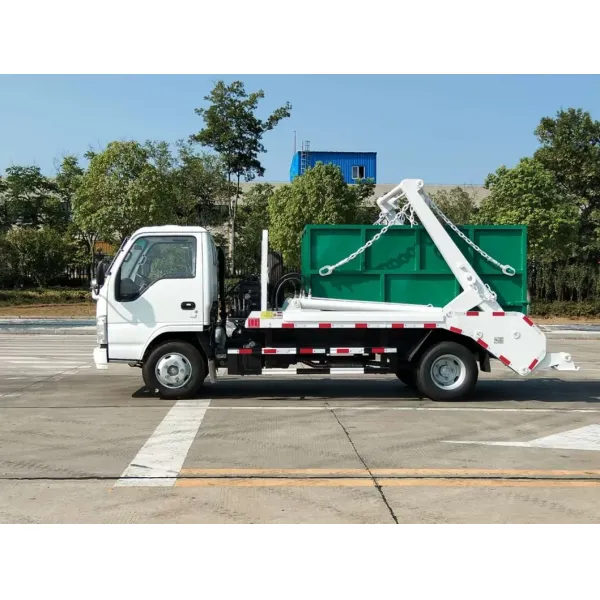

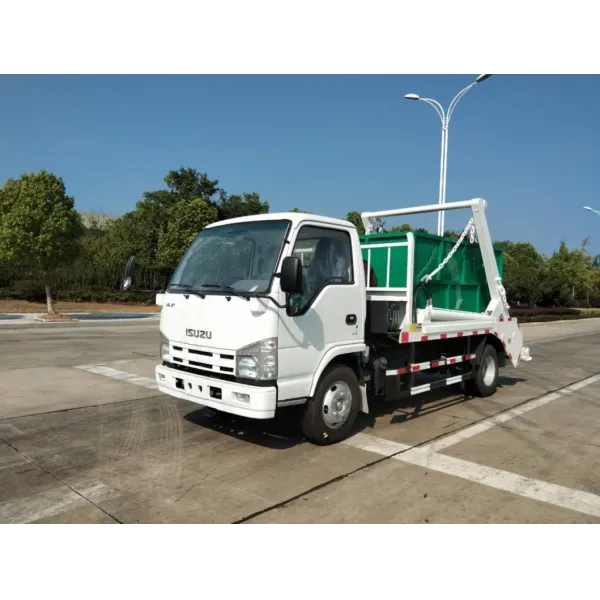

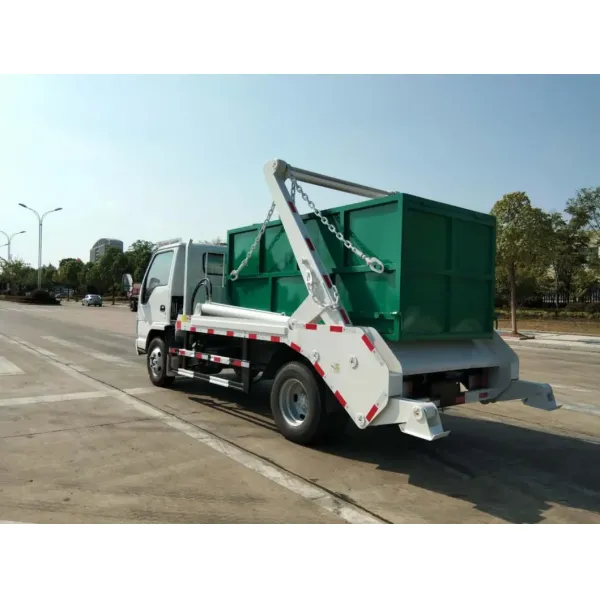

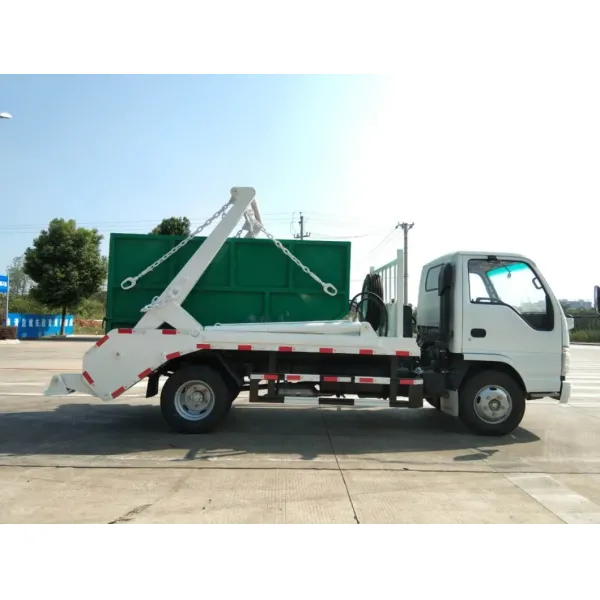

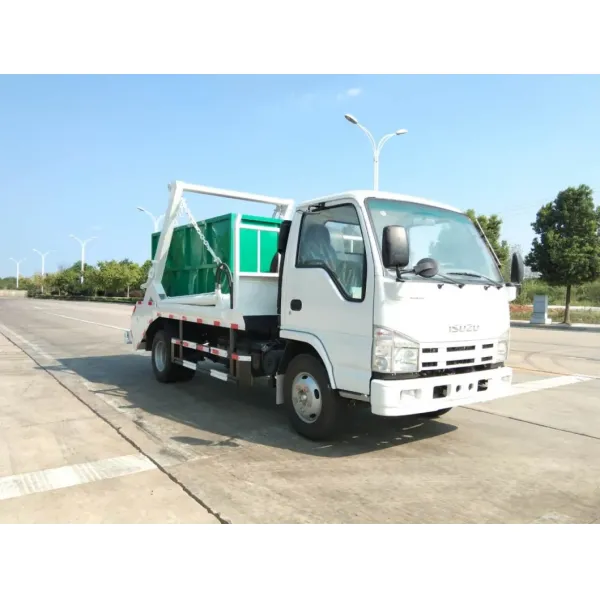

Detailed Photos
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage Truck
Product Parameters
Top-loading configuration table:
Order Name Specifications and models
  Chassis name/model  Isuzu
1 Total mass 7360kg
2 Wheelbase (mm) 3300Mm
Three Matching trash canVolume m3 4
4 Top material The attachment adoptsWugang Q345 low alloy manganese steelProduction, big arm assemblyAdopt Q710 high strengthSteel
5 Lifting weight 6tons
6 Form of work Telescopic arm
7 Hydraulic cylinder Hypris,Yantai Future, Xiamen Yinhua
8 Oil pump Changyuan(Well-known domestic brands)
9 Multi-way valve Zhongmei, Yangzhou, Jiangsu ProvinceHonghui
Ten Hydraulic oil pipe Eaton, USA, Bonway hydraulic oil pipe (high-density double-layer 24Mpa)
11 System rated pressure 18 MPa
12 Control system Wired and electronic control
1Three LuggageGarbage removal time ≤60Small size
14 Control method All-in-one independent operation of the handsplet (standard remote control)
15 Key component structure .Reinforced with cast steel parts
16 The design of the whole vehicle Use SW three-dimensional software to simulate
17 Body color/text Body color and text painting can be customized according to customer requirements.
18 Attachment Profile light, side light, work light
Company Profile
Factory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFactory Direct Isuzu Small Hydraulic Swing Arm Garbage TruckFAQ
Q1: Are you manufacturer or trading company?
A: We are direct manufacturer with more than 20years' experience.

Q2: What is the lead time?
A: Normally it will take 20-45 working days after getting down payment.

Q3: How should I pay for you if I place order to you?
A: We prefer T/T, 30%-50% as deposit, balance before shipment, L/C is also acceptable and negotiable.

Q4: If I do not like the color, could I change the color?
A: Yes, most of our trucks have standard colors, if all colors could not meet your needs; we could customize by your request.

Q5: Can you supply the spare parts of this truck?
A: Yes, We can supply the spare parts for all the trucks we selling. We have spare parts department professional for this. Once you need spare parts we can supply immediately.

Q6: Do you have oversea service?
A: When you have some problems which you cannot solve, we will arrange our engineers to your country to help you.

Q7: How about your product quality?
A: All our spare parts are from the original manufacturers, the quality is 100% guaranteed.
Flexible Payment Terms for Different Trucks and Business Besides traditional payment terms such as TT, LC, we still offer our stable and long-term partners with various financial support and credit payment terms at different periods.  Excellent and Outstanding After Sales Service Our professional technicians and mechanics and parts staff always concentrate all our products and our customers. Top Starting Point, High Quality and Worry-free Service is our promise to all our customers.
