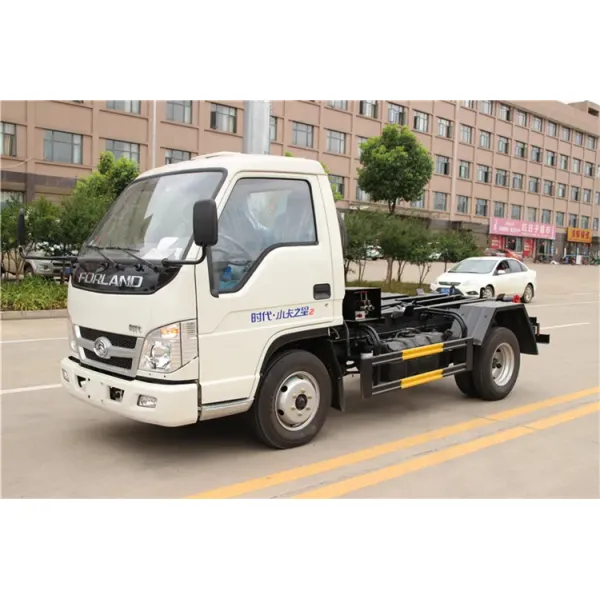

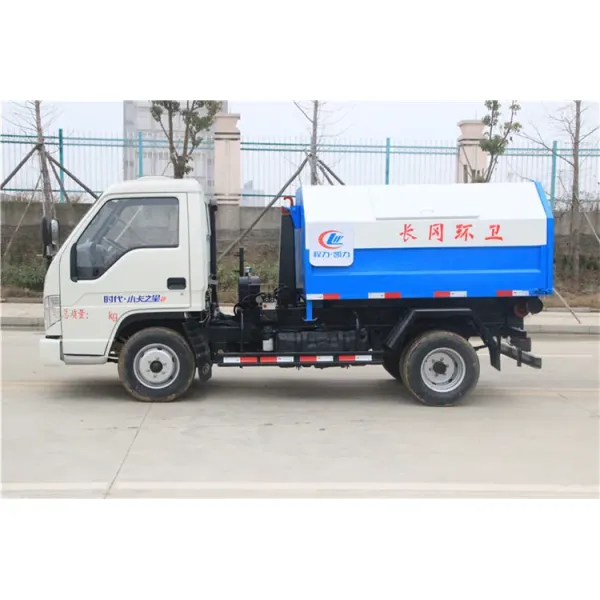

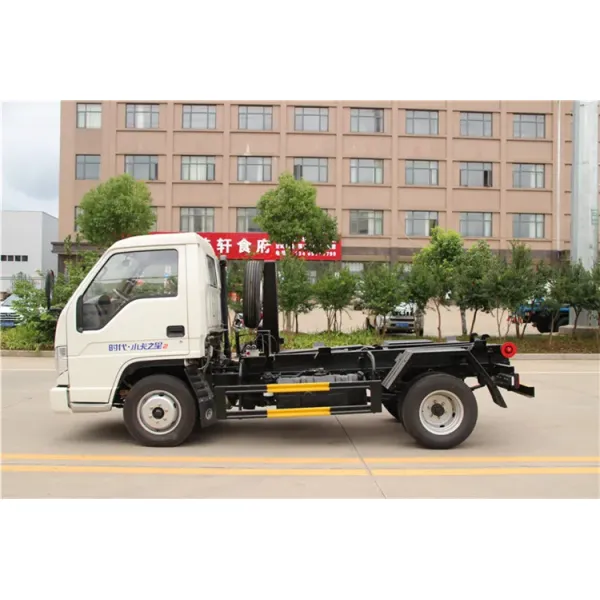

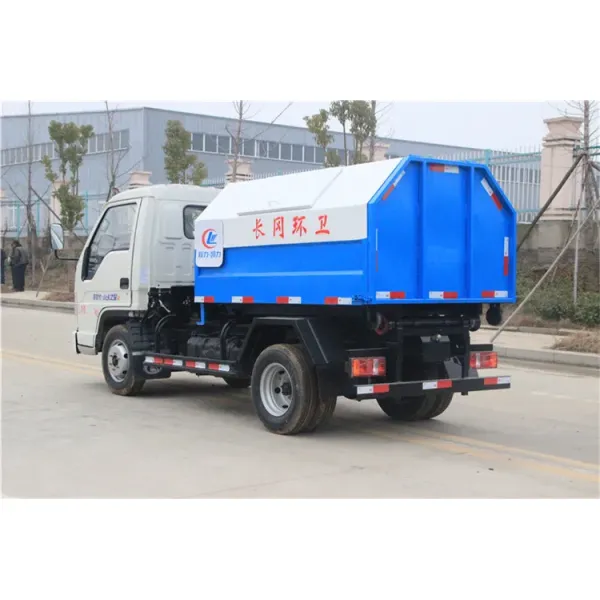

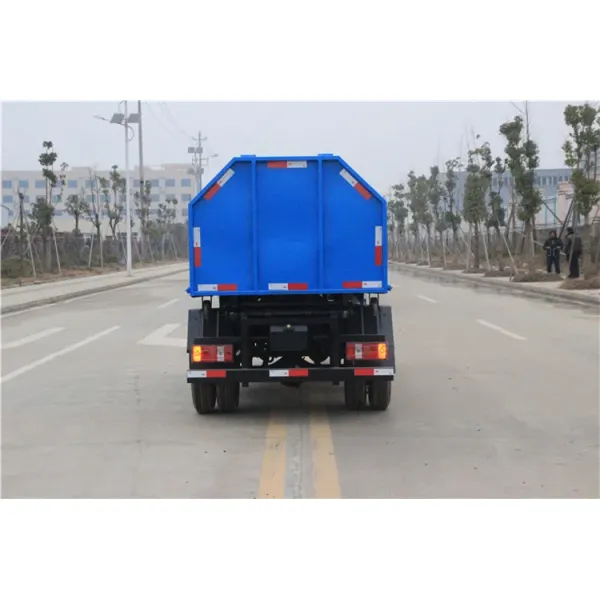

China Foton2 ton Small Hook-Arm Garbage Truck
China Foton2 ton Small Hook-Arm Garbage Truck
Specifications
Certification :
ISO9001
MOQ :
1
Price :
US $15,000 / Piece
Place of Origin :
CHINA
Packaging Details :
Nuked
Delivery Time :
15 working days
Payment Terms :
T/T,LC,
Supply Ability :
150 sets/month
Model NO. :
CLW5389TYDF5
Type :
Recycling
Volume :
10001-15000L
Emission Standard :
Euro 4
Transmission Type :
Manual
Payload :
20T
Fuel :
Diesel
Drive Wheel :
4×2
Brand :
Dongfeng
Models :
Micro
Condition :
New
Transport Package :
Complete Vehicle
Specification :
7500× 2500× 3060
Trademark :
CLW
Origin :
China
HS Code :
4801000000
Production Capacity :
1000
Description
                                         FukudaCarmobile garbage truck
China Foton2 ton Small Hook-Arm Garbage TruckChina Foton2 ton Small Hook-Arm Garbage TruckChina Foton2 ton Small Hook-Arm Garbage TruckChina Foton2 ton Small Hook-Arm Garbage TruckChina Foton2 ton Small Hook-Arm Garbage Truck
[Technical parameters of the whole vehicle]
Product trademark Huatong brand Announcement batch 353
Product name Car removable garbage truck
Total mass (kg) 4495 Tank volume (m3)
Rated mass (kg) 2265 Dimensions (mm) 4665X2080,1750X2080
Preparation mass (kg) 2100 Cargo compartment size (mm) XX.
The number of passengers in the cab (persons) 2 Maximum load of the saddle (kg)
Approach angle/departure angle (°) 17/18 Front suspension/rear suspension (mm) 1115/700,1115/835
Shaft load (kg) 1710/2785. Maximum speed (km/h) 110
Remarks: Remarks: ABS model: CM4YL; ABS manufacturer: Guangzhou Ruili Kemi Automotive Electronics Co., Ltd.; Optional description: Optional E
TC on-board device; engine/fuel consumption value (L/100km) correspondence is: Q23-95C60/9.69; materials used
Material, connection method and rear protective equipmentThe main size parameters (sectional size and ground height): the protective materials behind the side are all Q235.
, the connection method is all welded connection, and the rear protection cross-section is 120×50(mm), ground height 430(mm); special functions and devices
: Pull-arm mechanism; the car is equipped with a spare tire and accompanying tools.
[Technical parameters of chassis]
Chassis model BJ1045V9JB3-55 Class II BAIC Foton Automobile Co., Ltd. Name of the chassis Cargo vehicle chassis
.Trademark name Futian brand Manufacturing enterprise BAIC Foton Automobile Co., Ltd.
Number of axes 2 Number of tires 6
Wheelbase (mm) 2600,2850
Tire specifications 6.00R15 10PR, 6.00R15LT 10PR
The number of steel plate springs 7/5+3.7/5+2.3/5+2.2/3+2 .Front wheelbase (mm) 1345
Types of fuel Diesel oil Rear wheelbase (mm) 1292
Emissions based on standards GB17691-2018 countryVI.
Engine model Engine manufacturers Engine displacement Engine power
Q23-95C60.
Q23-95E60.		 Anhui Quanchai Power Co., Ltd.
Anhui Quanchai Power Co., Ltd.		 2300
2300		 70
70
