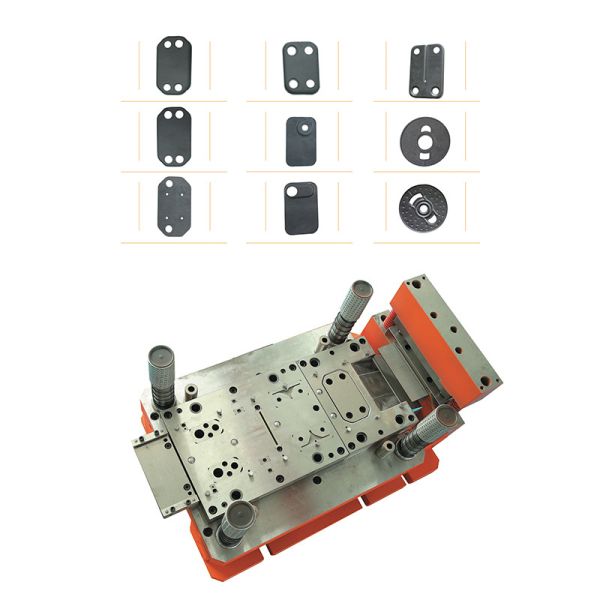

Sheet Metal Progressive Stamping Die for Automotive Oil Cooler Components
Sheet Metal Progressive Stamping Die for Automotive Oil Cooler Components
Sheet Metal Progressive Stamping Die for Automotive Oil Cooler Components
Sheet Metal Progressive Stamping Die for Automotive Oil Cooler Components
Sheet Metal Progressive Stamping Die for Automotive Oil Cooler Components
Sheet Metal Progressive Stamping Die for Automotive Oil Cooler Components
Specifications
Mould Weight :
1T
Part Material :
4045
Standard Parts Brand :
MISUMI
Part Name :
Automotive oil cooler components
Mould Life :
1,000,000 shots
Punch Tonnage :
200T
Brand Name :
IDO
Model Number :
automotive oil cooler
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mould Type :
Progressive die
Mould Size :
1000*650*560mm
Description
Sheet Metal Progressive Stamping Die for Automotive Oil Cooler Components
Product Description

This custom progressive stamping die is designed for producing sheet-metal components used in automotive oil cooler assemblies.

The strip layout, forming stations, cutting clearance and die structure are developed according to the customer’s approved part drawing, material specification, press parameters and production requirements.

Manufacturing and Inspection

Manufacturing capabilities include CNC milling, surface grinding, wire EDM, sinker EDM, die assembly and tryout.

Selected die components may undergo vacuum heat treatment, deep cryogenic treatment, polishing or TiCN coating according to their materials and functions.

Inspection equipment includes CMMs, optical profile projectors, height gauges, material spectrometers, microscopes and micrometers.

Drawing Formats

DWG, STEP, X_T, IGES and PDF.

Design software includes AutoCAD and SOLIDWORKS.

Information Required for Quotation

Please provide:

  • 2D and 3D part drawings;
  • Complete material grade and sheet thickness;
  • Required production volume and stamping speed;
  • Press and feeding-system specifications;
  • Critical dimensions and tolerance requirements.

Final specifications, die life and acceptance criteria will be confirmed during the technical review.

Main Specifications
Item Specification
Die Type Progressive stamping die
Application Automotive oil cooler components
Workpiece Material According to the approved customer drawing
Press Capacity 200 metric tons
Die Dimensions 1000 × 650 × 560 mm
Approximate Die Weight 1,000 kg
Standard Components MISUMI
Minimum Order Quantity 1 set
Lead Time Approximately 6–8 weeks
Packaging Rust-preventive oil, vacuum wrapping and export-grade wooden case
