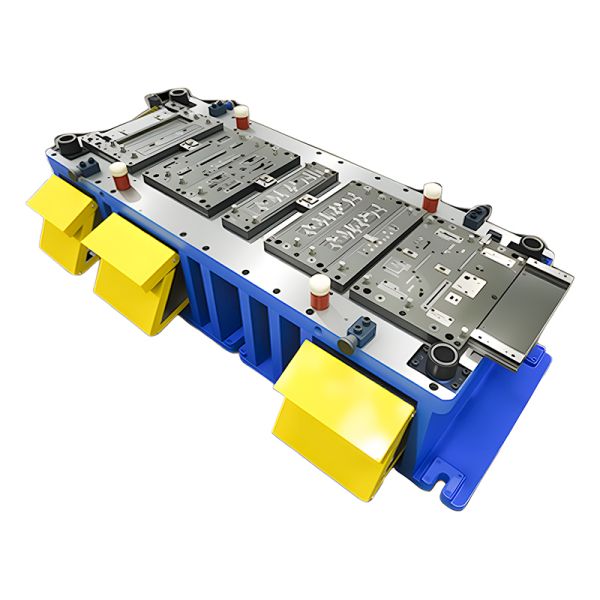

S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
Specifications
Part Material :
S355
Brand Name :
IDO
Model Number :
Automotive small table board
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
$10000-$50000
Payment Terms :
L/C,T/T
Supply Ability :
300 sets/year
Delivery Time :
45days
Packaging Details :
Wooden Case, Anti-Rust Oil, Vacuum Packaging
Mould Life :
1,000,000 shots
Standard Parts Brand :
MISUMI
Part Name :
Automotive small table board
Mould Weight :
4T
Mould Type :
Progressive mold
Mould Size :
2000*800*560mm
Punch Tonnage :
500T
Description
S355 Automotive Small Table Panel Sheet Metal Progressive Stamping Die 500T 1 Million Shots
Product Description

This sheet metal progressive stamping die is designed for manufacturing S355 automotive small table panels. With dimensions of 2000 × 800 × 560 mm and a weight of 4 tons, the die is engineered for use with a 500-ton stamping press. It incorporates MISUMI standard parts and offers a designed service life of 1,000,000 shots, supporting stable, precise and efficient high-volume production of automotive sheet metal components.

Engineering and Manufacturing

The die is manufactured through CNC milling, surface grinding, wire EDM, sinker EDM, fitting, assembly and tryout.

Tool materials, standard components, heat treatment and coatings are defined in the approved die design and bill of materials.

Production speed, maintenance intervals and die-life conditions are confirmed in the technical agreement.

Information Required for Quotation

  • 2D and 3D part drawings;

  • Complete S355 material designation and thickness;

  • Required production volume and stamping speed;

  • Press and feeding-system specifications;

  • Critical dimensions and tolerances;

  • Required sample quantity.

Main Specifications
Item Specification
Die Type Progressive stamping die
Application Automotive small table-board component
Workpiece Material S355 steel
Press Capacity 500 metric tons
Die Dimensions 2000 * 800 * 560 mm
Approximate Die Weight 4,000 kg
Standard Components MISUMI
Design Life 1,000,000 strokes under agreed operating and maintenance conditions
Minimum Order Quantity 1 set
Lead Time Approximately 6–8 weeks
Packaging Rust-preventive oil, vacuum wrapping and export-grade wooden case
