Tube driver transformer Hammond 124D with 14.4 H secondary inductance and 0.125 H leakage inductance
Tube driver transformer Hammond 124D with 14.4 H secondary inductance and 0.125 H leakage inductance
Tube driver transformer Hammond 124D with 14.4 H secondary inductance and 0.125 H leakage inductance
Tube driver transformer Hammond 124D with 14.4 H secondary inductance and 0.125 H leakage inductance
Specifications
Description :
Screw Terminals Audio Transformers RoHS
Mfr. Part # :
124D
Model Number :
124D
Package :
Screw Terminals
Description

Product Overview

The Hammond Mfg. Co. Ltd. 124D TUBE DRIVER - INTERSTAGE TRANSFORMER is designed for general purpose or replacement use in single-ended or phase inverter tube driver circuits. It operates within a frequency range of 150 Hz to 15 KHz and features an open style, 2-point mount with minimum 5 long leads. The core is constructed from Grain Oriented Silicone Steel laminations.

Product Attributes

  • Brand: Hammond Mfg. Co. Ltd.
  • Origin: MADE IN CANADA
  • Core Material: Grain Oriented Silicone Steel laminations

Technical Specifications

CharacteristicPrimarySecondaryValue
Input Impedance7,000 CT
Output Impedance15,800 CT
Output Power5.0 Watts
DCRBLU RED218
DCRRED BRN236
DCRGRN BLK297
DCRBLK GRN394
Inductance @ 1.0 kHz, 1.0 V OC6.45 H14.4 H
Leakage Inductance0.125 H
Impedance @ 1.0 kHz, 1.0 V OC40.5 K90.25 K

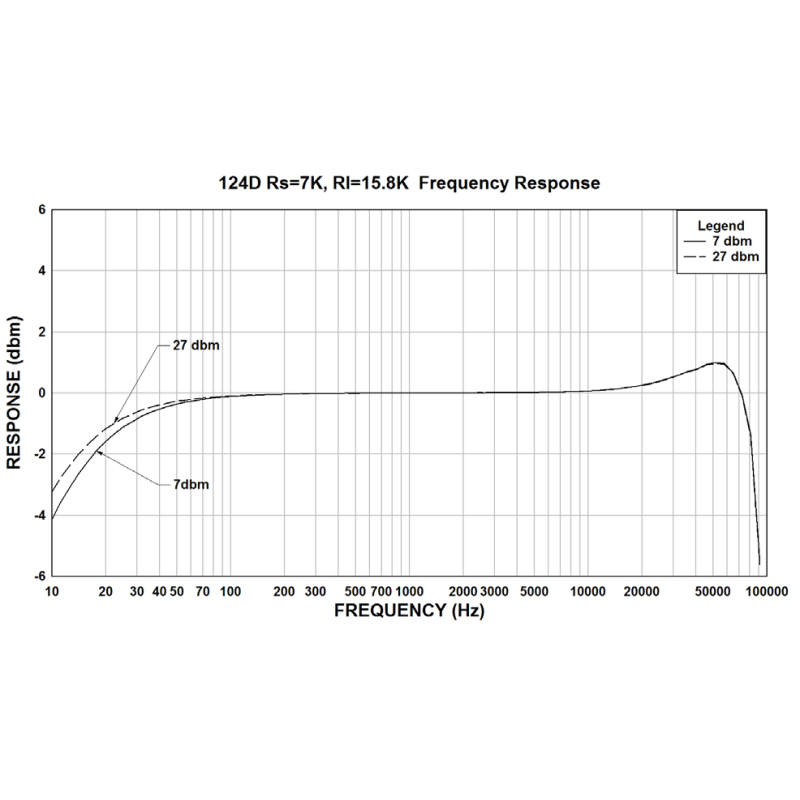

Frequency Response1db from 150Hz to 15Hz
Turns ratio1:1.49
Dielectric Strength500 Vrms

2504101957_Hammond-124D_C17681727.pdf
