Chassis Mount Shielded Impedance Matching Transformer Hammond 140REX for Audio Line Matching Applications
Chassis Mount Shielded Impedance Matching Transformer Hammond 140REX for Audio Line Matching Applications
Chassis Mount Shielded Impedance Matching Transformer Hammond 140REX for Audio Line Matching Applications
Chassis Mount Shielded Impedance Matching Transformer Hammond 140REX for Audio Line Matching Applications
Specifications
Description :
Screw Terminals Audio Transformers RoHS
Mfr. Part # :
140REX
Model Number :
140REX
Package :
Screw Terminals
Description

Product Overview

The Hammond Mfg. Co. Ltd. 140REX is a chassis mount, shielded impedance matching transformer designed for operation within the 20 Hz to 20 KHz range. It features a metal can for excellent shielding against external sources and a nickel core for high permeability and low losses. Typical applications include input/output isolation, line matching, driver, and hybrid applications.

Product Attributes

  • Brand: Hammond Mfg. Co. Ltd.
  • Origin: MADE IN CANADA
  • Shielding: Metal can
  • Core Material: Nickel

Technical Specifications

CharacteristicValuePrimarySecondary
Input Impedance600CT RED BRN (36.2 ), BRN YEL (36.2 )150 (GRN - BLU)
Output Power10.0 dbm
DCR72.4 18.2
Inductance @ 1.0 kHz, 1.0 V OC3.62 H0.88 H
Impedance @ 1.0 kHz, 1.0 V OC61.5 k15.6 k

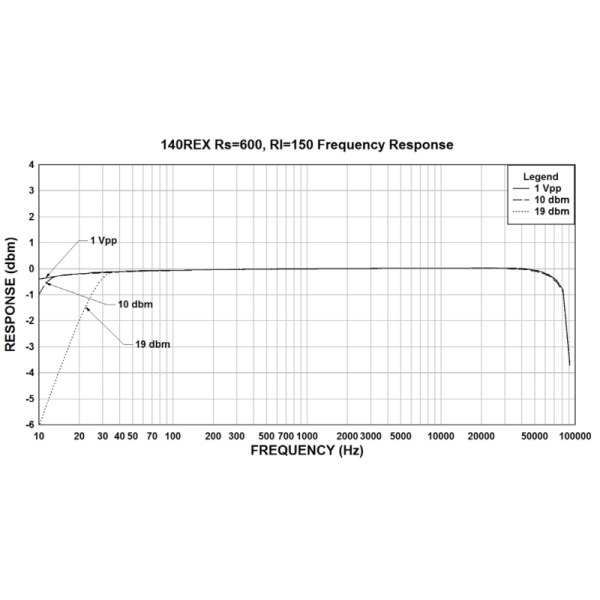

Frequency Response1db from 20 Hz to 20KHz
Turns ratio2:1
Insertion Loss< 1.0 db
Return Loss22.5 db
Longitudinal balance-65 db
Dielectric Strength500 Vrms
Power Rating5mW20Hz - 20kHz

2504101957_Hammond-140REX_C17680730.pdf
