Chassis Mount Shielded Transformer Hammond 140NEX for Audio Input Output Isolation and Line Matching
Chassis Mount Shielded Transformer Hammond 140NEX for Audio Input Output Isolation and Line Matching
Chassis Mount Shielded Transformer Hammond 140NEX for Audio Input Output Isolation and Line Matching
Chassis Mount Shielded Transformer Hammond 140NEX for Audio Input Output Isolation and Line Matching
Specifications
Description :
Screw Terminals Audio Transformers RoHS
Mfr. Part # :
140NEX
Model Number :
140NEX
Package :
Screw Terminals
Description

Product Overview

The 140NEX is a chassis mount, shielded impedance matching transformer designed for operation within the 20 Hz to 20 KHz range. Its metal can construction provides excellent shielding against external interference, while the nickel core ensures high permeability and low losses. This transformer is ideal for input/output isolation, line matching, driver, and hybrid applications.

Product Attributes

  • Brand: Hammond Mfg. Co. Ltd.
  • Origin: MADE IN CANADA
  • Shielding: Metal can
  • Core Material: Nickel

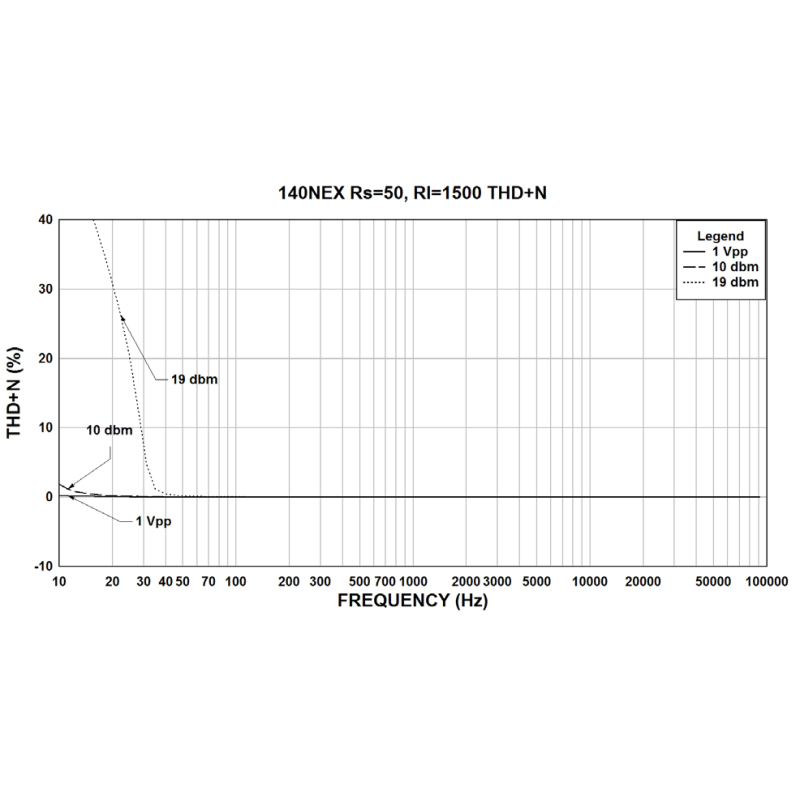

Technical Specifications

CharacteristicPrimarySecondary
Input Impedance4 60,000
Output Power10.0 dbm5mW
DCR5.30 116.5
Inductance @ 1.0 kHz, 1.0 V OC326 mH9.30 H
Impedance @ 1.0 kHz, 1.0 V OC2.83 k79.0 k
Frequency Response1db from 20 Hz to 20KHz
Turns ratio1:5.47
Insertion Loss< 0.9 db
Return Loss28.0 db
Longitudinal balance-70 db
Dielectric Strength500 Vrms
Winding ConfigurationRED - YEL: 1500 GRN - BLU: 50

2504101957_Hammond-140NEX_C17663038.pdf
